Kia Sorento (2003-2010) Torque Spec Settings

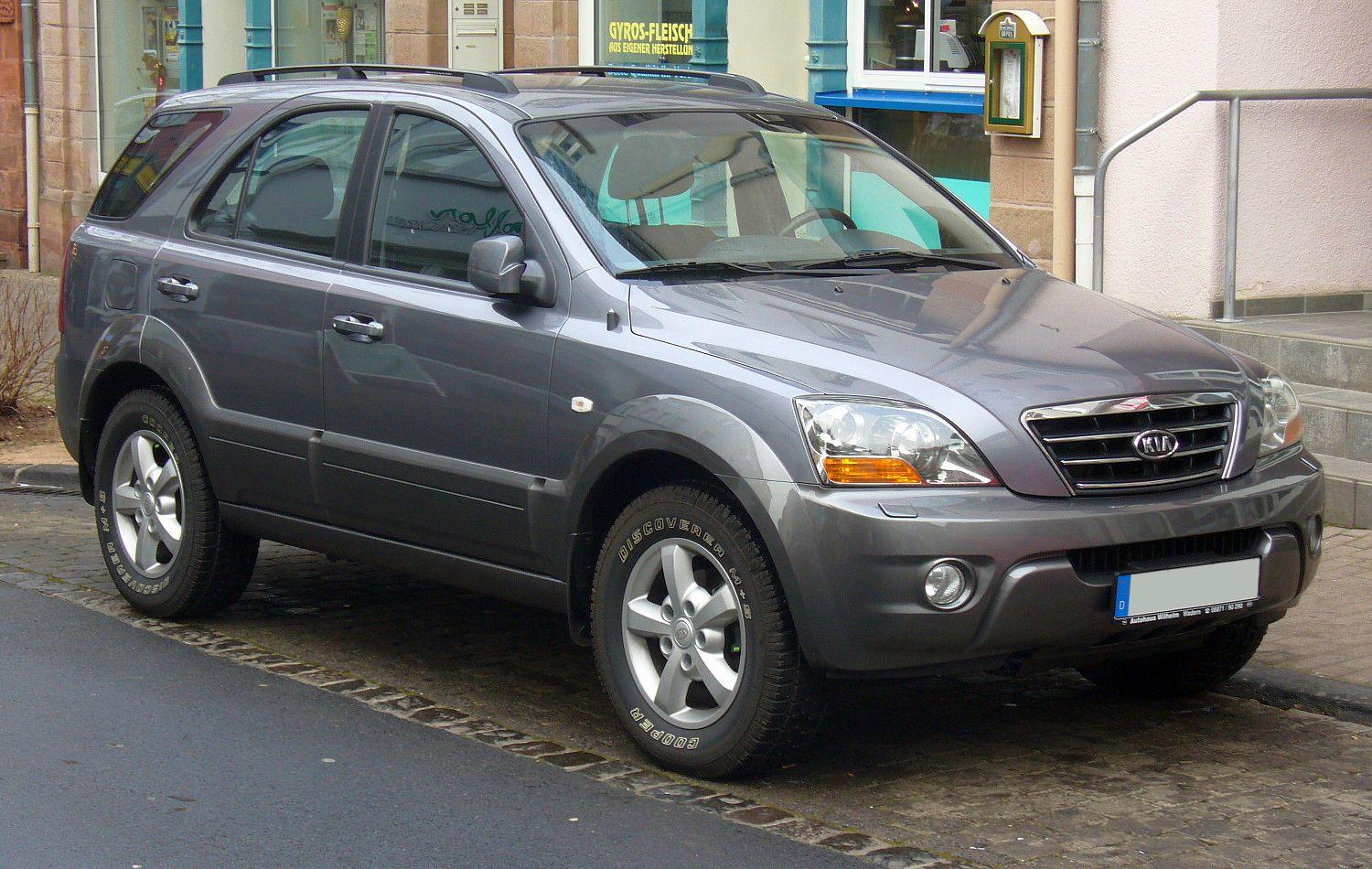

By Thomas doerfer - Own work, CC BY-SA 3.0

Below you'll find the tightening torques for the Kia Sorento in both Nm and ft/lbs. The first table contains the most-used torque settings. The tables after it contain all torque spec values I could find.

Most-used torque settings for Kia Sorento

Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Oil pan Oil drain plug 60 44 Gearbox A5SR2 (Min.)
unverified source
Oil pan Oil drain plug 64 47 Gearbox A5SR2 (Max.)
unverified source
Oil pan Oil drain plug 60 44 Gearbox M5UR1 (Min.)
unverified source
Oil pan Oil drain plug 65 48 Gearbox M5UR1 (Max.)
unverified source
Spark plugs Spark plugs 22 16 Minimum
unverified source
Intake manifold Intake manifold 20 15
unverified source

To make sure these are the correct tightening torque values, you can use the data below to verify this is the right model.

Are these torque settings right for you?

  • Production years: 2003 - 2010
  • Type of van: car
  • Model variant: Base

All Torque Settings in Tables

engine torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Oil pan Oil drain plug 60 44 Gearbox A5SR2 (Min.)
unverified source
Oil pan Oil drain plug 64 47 Gearbox A5SR2 (Max.)
unverified source
Oil pan Oil drain plug 60 44 Gearbox M5UR1 (Min.)
unverified source
Oil pan Oil drain plug 65 48 Gearbox M5UR1 (Max.)
unverified source
Oil pan Oil sump 10 7 Minimum
unverified source
Oil pan Oil sump 12 9 Maximum
unverified source
Oil filter Oil filter plug 60 44 Gearbox M5UR1 (Min.)
unverified source
Oil filter Oil filter plug 65 48 Gearbox M5UR1 (Max.)
unverified source
Oil filter Oil filter housing 22 16 Minimum
  • Straight-4
  • 2.5L Diesel
unverified source
Oil filter Oil filter housing 25 18 Maximum
  • Straight-4
  • 2.5L Diesel
unverified source
Oil pump Oil pump chain wheel 20 15 Minimum
unverified source
Oil pump Oil pump chain wheel 22 16 Maximum
unverified source
Cylinder head Cylinder head 15 11 Camshaft bearing
  • Straight-4
  • 2.5L Diesel
unverified source
Cylinder head Cylinder head 49 36 Cylinder head screws
  • Straight-4
  • 2.5L Diesel
unverified source
Spark plugs Spark plugs 22 16 Minimum
unverified source
Glow plugs Glow plugs 15 11 Minimum
unverified source
Glow plugs Glow plugs 20 15 Maximum
unverified source
Intake manifold Intake manifold 20 15
unverified source
Sensor Knock sensor 16 12 Minimum
unverified source
Sensor Knock sensor 24 18 Maximum
unverified source
Sensor Lambda sensor 50 37 Minimum
unverified source
Sensor Lambda sensor 60 44 Maximum
unverified source
Starter Starter 50 37 Minimum
unverified source
Starter Starter 60 44 Maximum
unverified source
Camshaft Camshaft drive belt deflection pulley 50 37 Minimum
unverified source
Camshaft Camshaft drive belt deflection pulley 60 44 Maximum
unverified source
Camshaft Camshaft timing chain guide rail 10 7 Minimum
  • Straight-4
  • 2.5L Diesel
unverified source
Camshaft Camshaft timing chain guide rail 12 9 Maximum
  • Straight-4
  • 2.5L Diesel
unverified source
Water pump Coolant pump 20 15 Minimum
unverified source
Water pump Coolant pump 30 22 Maximum
unverified source
Water pump Coolant pump pulley 8 6 Minimum
unverified source
Water pump Coolant pump pulley 10 7 Maximum
unverified source
Fuel/Oil cooler Oil cooler 18 13 Minimum
unverified source
Fuel/Oil cooler Oil cooler 25 18 Maximum
unverified source
Valve cover Valve cover 10 7 Minimum
unverified source
Valve cover Valve cover 12 9 Maximum
unverified source

drivetrain torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Clutch pressure plate Clutch pressure plate 15 11 Minimum
unverified source
Clutch pressure plate Clutch pressure plate 20 15 Maximum
unverified source
Drive/Axle shaft Front axle brake 22 16 Minimum
  • Front
unverified source
Drive/Axle shaft Front axle brake 32 24 Maximum
  • Front
unverified source
Drive/Axle shaft Propeller shaft 26 19 With permanent four-wheel drive (Min.)
unverified source
Drive/Axle shaft Propeller shaft 30 22 With permanent four-wheel drive (Max.)
unverified source
Drive/Axle shaft Propeller shaft 50 37 With selectable all-wheel drive (Min.)
unverified source
Drive/Axle shaft Propeller shaft 60 44 With selectable all-wheel drive (Max.)
unverified source

steering torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to

exhaust torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Exhaust manifold Exhaust manifold 20 15 Minimum
  • Straight-4
  • 2.5L Diesel
unverified source
Exhaust manifold Exhaust manifold 25 18 Maximum
  • Straight-4
  • 2.5L Diesel
unverified source
Exhaust manifold Exhaust manifold heat shield 15 11 Minimum
unverified source
Exhaust manifold Exhaust manifold heat shield 20 15 Maximum
unverified source
Turbo Exhaust Pipe 30 22
unverified source

brakes torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to

suspension torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to

general torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Example of a Sorento

By Benespit - Own work, CC BY-SA 4.0
