Chevrolet Colorado 2 (2015-on) Torque Spec Settings

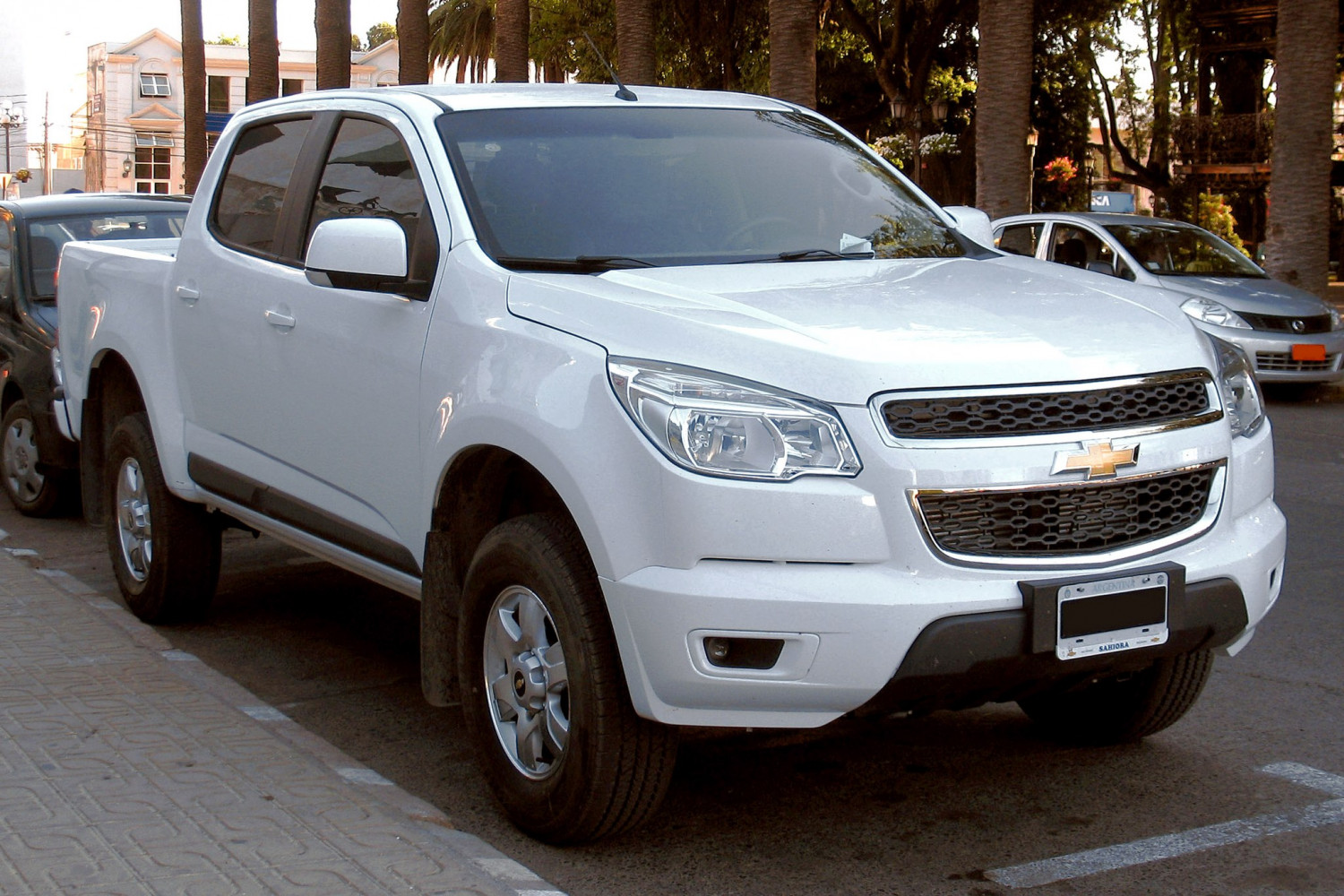

order_242 from Chile, CC BY-SA 2.0, via Wikimedia Commons

Below you'll find the tightening torques for the Chevrolet Colorado 2 in both Nm and ft/lbs. The first table contains the most-used torque settings. The tables after it contain all torque spec values I could find.

Most-used torque settings for Chevrolet Colorado 2

Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Spark plugs Spark plugs 18 13
  • LE6
  • LP8
unverified source
Wheels Wheel nuts 118 87
unverified source

Are these torque settings right for you?

  • Production years: 2015 - present
  • Generation: 2
  • Type of van: pickup
  • Model variant: Base
  • Also known as: Chevrolet S10 3 Holden Colorado 2 HSV SportsCat GMC Canyon 2

All Torque Settings in Tables

engine torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Cylinder head Cylinder head bolt 25 18
  • LE6
  • LP8
unverified source
Spark plugs Spark plugs 18 13
  • LE6
  • LP8
unverified source
Intake manifold Intake manifold bolt and nuts 24 18
  • LE6
  • LP8
unverified source
Intake manifold Lower intake manifold fastener 24 18
  • LE6
unverified source
Knock sensor Knock sensor fastener 15 11
  • LE6
  • LP8
unverified source
Camshaft Camshaft bearing cap bolts 9 7
  • LE6
unverified source
Belt tensioner Drive belt idler pulley fastener 50 37
  • LE6
  • LP8
unverified source

drivetrain torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to

steering torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to

exhaust torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Exhaust manifold Exhaust manifold nuts 10 7 First pass
  • LE6
unverified source

brakes torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to

suspension torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to

general torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
