Chevy Silverado 3 (2014-2018) Torque Spec Settings

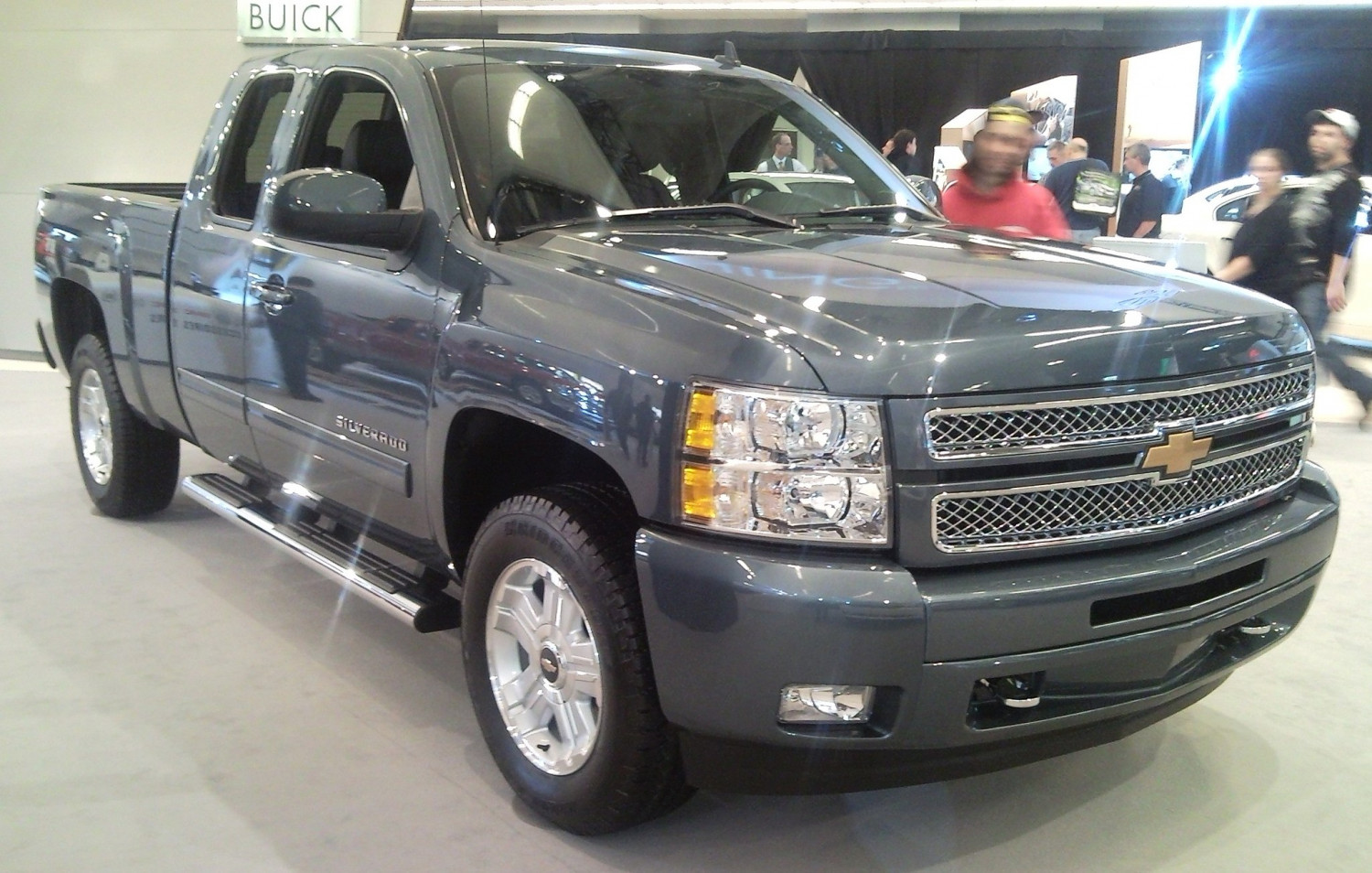

order_242 from Chile, CC BY-SA 2.0, via Wikimedia Commons

Below you'll find the tightening torques for the Chevy Silverado 3 in both Nm and ft/lbs. The first table contains the most-used torque settings. The tables after it contain all torque spec values I could find.

Most-used torque settings for Chevy Silverado 3

Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Oil pan Oil pan drain plug 25 18
  • 4.3L Engine
  • LV3
 unverified source
Oil pan Oil pan drain plug 25 18
  • 5.3L Engine
  • L83
  • L8B
 unverified source
Oil pan Oil pan drain plug 25 18
  • 6.2L Engine
  • L86
 unverified source
Belt tensioner Drive belt tensioner bolt 58 43
  • 5.3L Engine
  • L83
  • L8B
 unverified source
Belt tensioner Drive belt tensioner bolt 58 43
  • 6.2L Engine
  • L86
 unverified source
Wheels Wheel nut 190 140
unverified source

Are these torque settings right for you?

  • Production years: 2014 - 2018
  • Generation: 3
  • Type of van: pickup
  • Model variant: Base
  • Also known as: GMC Sierra 4 Chevrolet Cheyenne VIA Vtrux Truck Chevrolet Silverado LD

All Torque Settings in Tables

engine torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Oil pan Oil pan drain plug 25 18
  • 4.3L Engine
  • LV3
 unverified source
Oil pan Oil pan drain plug 25 18
  • 5.3L Engine
  • L83
  • L8B
 unverified source
Oil pan Oil pan drain plug 25 18
  • 6.2L Engine
  • L86
 unverified source
Oil pan Oil pan to Rear housing bolt 12 9
  • 4.3L Engine
  • LV3
 unverified source
Oil pan Oil pan to Rear housing bolt 12 9
  • 5.3L Engine
  • L83
  • L8B
 unverified source
Oil pan Oil pan to Rear housing bolt 12 9
  • 6.2L Engine
  • L86
 unverified source
Oil pan Oil pan to Engine block and Front cover bolt 25 18
  • 4.3L Engine
  • LV3
 unverified source
Oil pan Oil pan to Engine block and Front cover bolt 25 18
  • 5.3L Engine
  • L83
  • L8B
 unverified source
Oil pan Oil pan to Engine block and Front cover bolt 25 18
  • 6.2L Engine
  • L86
 unverified source
Oil pan Lower oil pan to Upper oil pan bolt 10 7
  • 4.3L Engine
  • LV3
 unverified source
Oil pan Lower oil pan to Upper oil pan bolt 10 7
  • 5.3L Engine
  • L83
  • L8B
 unverified source
Oil pan Lower oil pan to Upper oil pan bolt 10 7
  • 6.2L Engine
  • L86
 unverified source
Oil pan Oil pan cover bolt 10 7
  • 4.3L Engine
  • LV3
 unverified source
Oil filter Oil filter fitting 55 41
  • 4.3L Engine
  • LV3
 unverified source
Oil filter Oil filter fitting 55 41
  • 5.3L Engine
  • L83
  • L8B
 unverified source
Oil filter Oil filter fitting 55 41
  • 6.2L Engine
  • L86
 unverified source
Oil pressure switch Engine oil pressure sensor 35 26
  • 4.3L Engine
  • LV3
 unverified source
Oil pressure switch Engine oil pressure sensor 35 26
  • 5.3L Engine
  • L83
  • L8B
 unverified source
Oil pressure switch Engine oil pressure sensor 35 26
  • 6.2L Engine
  • L86
 unverified source
Cylinder head Cylinder head bolt 80 59 First pass, in sequence
  • 4.3L Engine
  • LV3
 unverified source
Cylinder head Cylinder head bolt 80 59 Internal hex, First pass, in sequence
  • 5.3L Engine
  • L83
  • L8B
 unverified source
Cylinder head Cylinder head bolt 80 59 Internal hex, First pass, in sequence
  • 6.2L Engine
  • L86
 unverified source
Cylinder head Cylinder head bolt 80 59 Standard hex, First pass, in sequence
  • 5.3L Engine
  • L83
  • L8B
 unverified source
Cylinder head Cylinder head bolt 80 59 Standard hex, First pass, in sequence
  • 6.2L Engine
  • L86
 unverified source
Spark plugs Spark plug 20 15
  • 4.3L Engine
  • LV3
 unverified source
Spark plugs Spark plug 20 15
  • 5.3L Engine
  • L83
  • L8B
 unverified source
Spark plugs Spark plug 20 15
  • 6.2L Engine
  • L86
 unverified source
Piston rods Connecting rod bolt 20 15 First pass
  • 4.3L Engine
  • LV3
 unverified source
Piston rods Connecting rod bolt 20 15 First pass
  • 5.3L Engine
  • L83
  • L8B
 unverified source
Piston rods Connecting rod bolt 20 15 First pass
  • 6.2L Engine
  • L86
 unverified source
Intake manifold Intake manifold bolt 5 4 First pass, in sequence
  • 4.3L Engine
  • LV3
 unverified source
Intake manifold Intake manifold bolt 10 7 Final pass, in sequence
  • 4.3L Engine
  • LV3
 unverified source
Intake manifold Intake manifold bolt 5 4 First pass, in sequence
  • 5.3L Engine
  • L83
  • L8B
 unverified source
Intake manifold Intake manifold bolt 5 4 First pass, in sequence
  • 6.2L Engine
  • L86
 unverified source
Intake manifold Intake manifold bolt 10 7 Final pass, in sequence
  • 5.3L Engine
  • L83
  • L8B
 unverified source
Intake manifold Intake manifold cover stud 5 4
  • 4.3L Engine
  • LV3
 unverified source
Intake manifold Intake manifold cover stud 5 4
  • 5.3L Engine
  • L83
  • L8B
 unverified source
Intake manifold Intake manifold cover stud 5 4
  • 6.2L Engine
  • L86
 unverified source
Intake manifold Intake manifold cover bolt 5 4
  • 4.3L Engine
  • LV3
 unverified source
Intake manifold Intake manifold cover bolt 5 4
  • 5.3L Engine
  • L83
  • L8B
 unverified source
Intake manifold Intake manifold cover bolt 5 4
  • 6.2L Engine
  • L86
 unverified source
Engine mounts Engine mount to Engine block bolts 65 48
  • 5.3L Engine
  • L83
  • L8B
 unverified source
Engine mounts Engine mount to Engine block bolts 65 48
  • 6.2L Engine
  • L86
 unverified source
Engine mounts Engine mount to Frame bolts 50 37
  • 5.3L Engine
  • L83
  • L8B
 unverified source
Engine mounts Engine mount to Frame bolts 50 37
  • 6.2L Engine
  • L86
 unverified source
Knock sensor Knock sensor bolt 25 18
  • 4.3L Engine
  • LV3
 unverified source
Knock sensor Knock sensor bolt 25 18
  • 5.3L Engine
  • L83
  • L8B
 unverified source
Knock sensor Knock sensor bolt 25 18
  • 6.2L Engine
  • L86
 unverified source
Alternator Generator bracket bolt 50 37
  • 4.3L Engine
  • LV3
 unverified source
Alternator Generator bracket bolt 50 37
  • 5.3L Engine
  • L83
  • L8B
 unverified source
Alternator Generator bracket bolt 50 37
  • 6.2L Engine
  • L86
 unverified source
Water pump Water pump bolt 10 7
  • LV3
  • L83
  • L8B
 unverified source
Water pump Water pump bolt 15 11 First pass
  • L96
  • LC8
 unverified source
Water pump Water pump bolt 30 22 Final pass
  • L96
  • LC8
 unverified source
Water pump Water pump bolt 25 18
  • L5P
 unverified source
Water pump Water pump nut 25 18
  • L5P
 unverified source
Water pump Water pump outlet pipe nut 25 18
  • L5P
 unverified source
Water pump Water pump outlet pipe stud 9 7
  • L5P
 unverified source
Belt tensioner Accessory drive belt tensioner bolt 58 43
  • 4.3L Engine
  • LV3
 unverified source
Belt tensioner Drive belt tensioner bolt 58 43
  • 5.3L Engine
  • L83
  • L8B
 unverified source
Belt tensioner Drive belt tensioner bolt 58 43
  • 6.2L Engine
  • L86
 unverified source
Valve cover Valve cover bolt 12 9 First pass, in sequence
  • 4.3L Engine
  • LV3
 unverified source
Valve cover Valve cover bolt 25 18 Final pass, in sequence
  • 4.3L Engine
  • LV3
 unverified source
Valve cover Valley cover bolt 25 18
  • 5.3L Engine
  • L83
  • L8B
 unverified source
Valve cover Valley cover bolt 25 18
  • 6.2L Engine
  • L86
 unverified source

drivetrain torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Differential Front differential housing cover bolt 40 30
unverified source
Wheel hub assembly Front wheel hub and bearing assembly bolt 180 133
unverified source
Wheel hub assembly Wheel drive shaft to Front hub nut 240 177
unverified source
Wheel hub assembly Rear wheel hub nut 70 52
  • 10.5/11.5 Inch Axles
 unverified source
Clutch pressure plate Clutch pressure plate bolt 70 52
unverified source
Transmission fluid pan Transmission fluid pan bolts 9 7
  • 4WD HD
  • 6L80 Automatic Transmission
  • 6L90 Automatic Transmission
 unverified source
Transmission fluid pan Transmission fluid pan bolts 10 7
  • 8L90 Automatic Transmission
 unverified source
Transmission mount Transmission mount to Transmission bolts 45 33 First pass
  • 4WD HD
  • 6L80 Automatic Transmission
  • 6L90 Automatic Transmission
 unverified source
Transmission mount Transmission mount bolt 55 41 Light duty
  • 8L90 Automatic Transmission
 unverified source
Transmission mount Transmission mount bolt 107 79 Heavy duty
  • 8L90 Automatic Transmission
 unverified source
Transmission mount Transmission to Engine bolts 50 37
  • 4WD HD
  • 6L80 Automatic Transmission
  • 6L90 Automatic Transmission
 unverified source
Transmission mount Transmission to Engine bolts 50 37
  • 8L90 Automatic Transmission
 unverified source

steering torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Pitman arm Pitman arm nut 370 273 Heavy duty
unverified source
Power steering pump Power steering pump bolt 25 18 Heavy duty
unverified source
Power steering pump Power steering pump fitting 63 46 Heavy duty
unverified source

exhaust torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Exhaust manifold Exhaust manifold bolt 23 17 Existing cylinder head
  • LV3
  • L83
  • L8B
  • L86
 unverified source
Exhaust manifold Exhaust manifold bolt 27 20 New cylinder head
  • LV3
  • L83
  • L8B
  • L86
 unverified source
Exhaust manifold Exhaust manifold bolt 20 15
  • L5P
 unverified source
Exhaust manifold Exhaust manifold bolt 15 11 First pass
  • L96
  • LC8
 unverified source
Exhaust manifold Exhaust manifold bolt 20 15 Final pass
  • L96
  • LC8
 unverified source
Exhaust manifold Exhaust manifold nut 25 18
  • L5P
 unverified source

brakes torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Brake caliper Front brake caliper bracket bolt 230 170 JD9
unverified source
Brake caliper Front brake caliper bracket bolt 300 221 J95 and J96
unverified source
Brake caliper Front brake caliper guide pin bolt 100 74 JD9
unverified source
Brake caliper Front brake caliper guide pin bolt 105 77 J95 and J96
unverified source
Brake caliper Rear brake caliper bracket bolt 300 221 J95 and J96
unverified source
Brake caliper Rear brake caliper bracket bolt 200 148 JD9
unverified source
Brake caliper Rear brake caliper guide pin bolt 105 77 J95 and J96
unverified source
Brake caliper Rear brake caliper guide pin bolt 52 38 JD9
unverified source

suspension torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Wheels Wheel nut 190 140
unverified source
Shock absorbers/shocks Front shock absorber stud nut 75 55 Light duty
  • Z85/Z95 Suspension
 unverified source
Shock absorbers/shocks Front shock absorber stud nut 50 37 Light duty
unverified source
Shock absorbers/shocks Front shock absorber lower bolt 120 89 Heavy duty
unverified source
Shock absorbers/shocks Front shock absorber lower bolt 50 37 Light duty
unverified source
Shock absorbers/shocks Front shock absorber upper nut 65 48 Heavy duty
unverified source
Shock absorbers/shocks Front shock absorber upper nut 50 37 Light duty
unverified source
Shock absorbers/shocks Rear lower shock absorber bolt 115 85
unverified source
Shock absorbers/shocks Rear upper shock absorber bolt 115 85
unverified source
Stabilizer bar Front stabilizer shaft clamp bolt 50 37
unverified source
Stabilizer bar Rear stabilizer shaft clamp nut 32 24
unverified source
Sway bar links/Stabilizer links Front stabilizer shaft link nut 23 17
unverified source
Sway bar links/Stabilizer links Rear stabilizer shaft link nut to Bolt 95 70
unverified source
Sway bar links/Stabilizer links Rear stabilizer shaft link nut to Stud 95 70
unverified source
Control arm Front upper control arm ball stud nut 50 37 Heavy duty
unverified source
Control arm Front upper control arm ball stud nut 50 37 Light duty, First pass
unverified source
Control arm Front upper control arm nut 260 192 Heavy duty
unverified source
Control arm Front upper control arm nut 105 77 Light duty, New design
unverified source
Control arm Front upper control arm nut 190 140 Light duty, Old design
unverified source
Control arm Front lower control arm ball stud nut 50 37 Heavy duty, First pass
unverified source
Control arm Front lower control arm ball stud nut 50 37 Light duty, First pass
unverified source
Control arm Front lower control arm front nut 180 133 Heavy duty, First pass
unverified source
Control arm Front lower control arm rear nut 180 133 Heavy duty, First pass
unverified source
Control arm Front lower control arm nut 175 129 Light duty
unverified source

general torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to

Did you find the answer to your specific question?
👍 6 👎 37

Related Vans:
