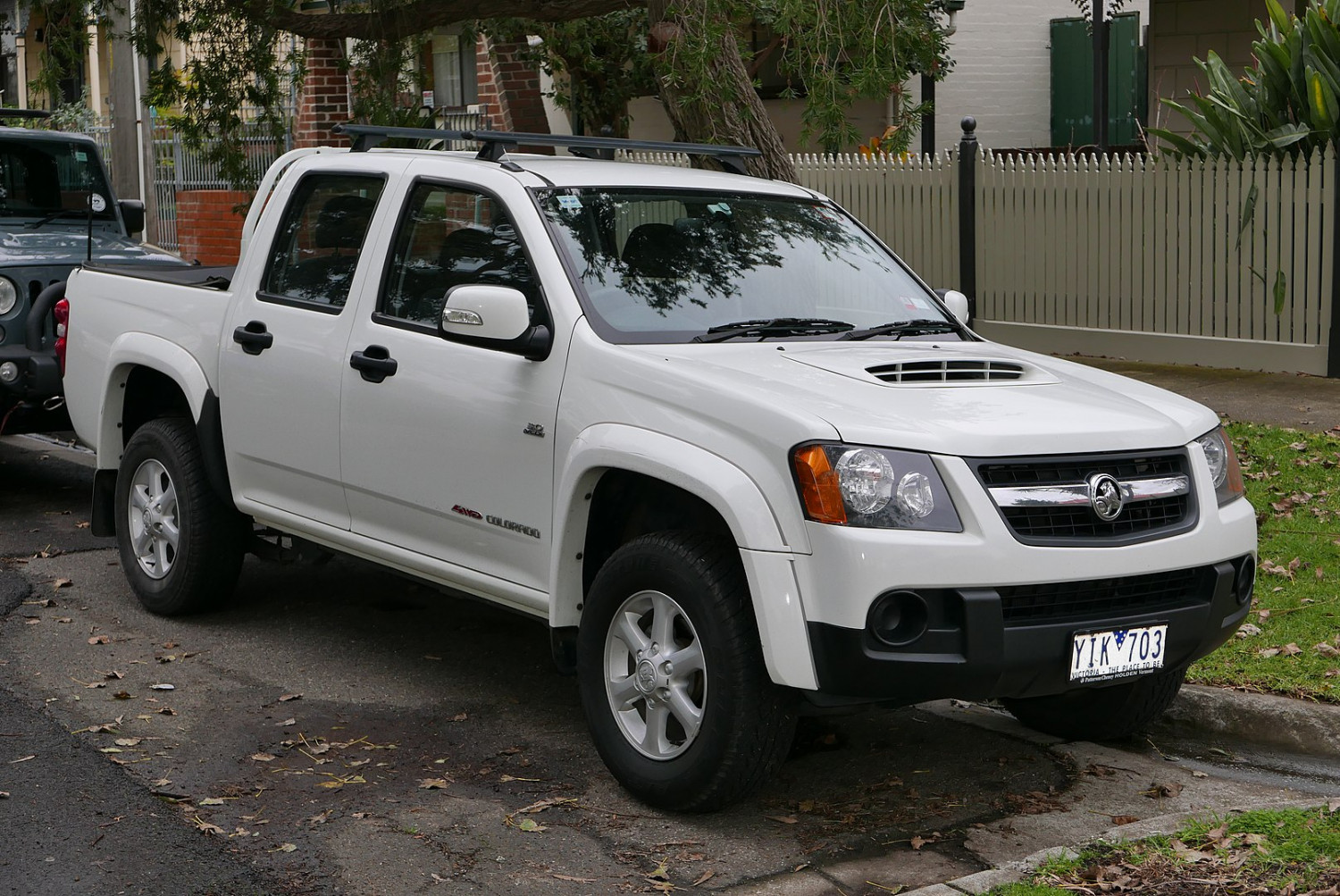

Holden Rodeo 1 (2002-2012) Torque Spec Settings

By OSX - Own work, Public Domain

Below you'll find the tightening torques for the Holden Rodeo 1 in both Nm and ft/lbs. The first table contains the most-used torque settings. The tables after it contain all torque spec values I could find.

Most-used torque specs for Holden Rodeo 1

Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Oil pan Oil pan drain plug 25 18
  • HFV6
unverified source
Spark plugs Spark plugs 25 18
  • C24SE
unverified source
Spark plugs Glow plug 18 13
  • 4JJ1-TC
  • 4JK1-TC
unverified source
Transmission fluid pan Drain plug 19 14
  • AW30-40LE Transmission
unverified source
Transmission fluid pan Drain plug 35 26
  • JR405E Transmission
unverified source
Transmission fluid pan Drain plug 39 29
  • MUX Manual Transmission
unverified source
Wheels Wheel nut 118 87 Steel wheel
unverified source
Wheels Wheel nut 118 87 Aluminium wheel
unverified source

Are these torque settings right for you?

  • Production years: 2002 - 2012
  • Generation: 1
  • Type of van: pickup
  • Model variant: Base

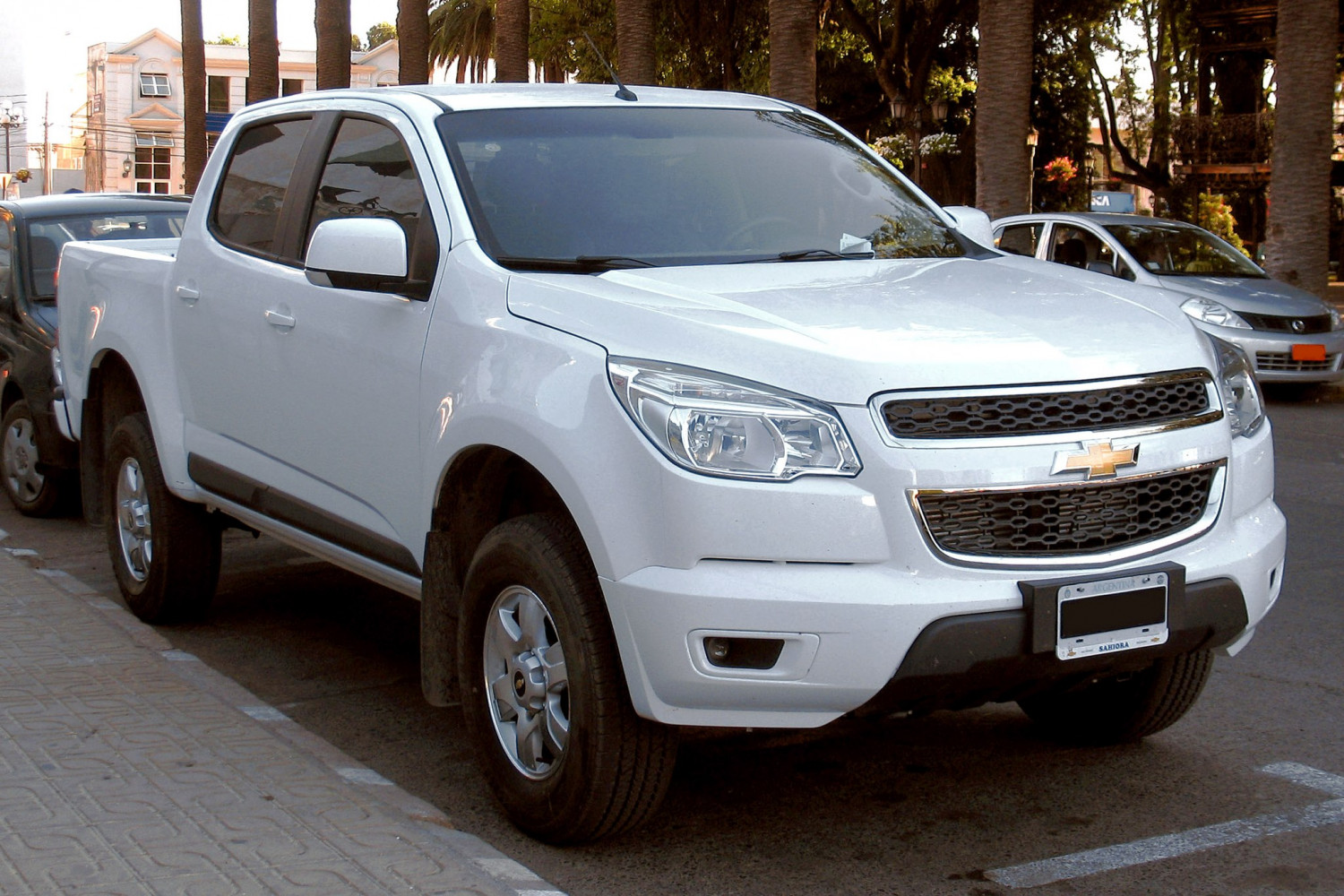

  • Also known as: Chevrolet D-Max Chevrolet LUV D-Max Chevrolet T-Series Isuzu D-Max Isuzu KB Isuzu LB Isuzu Rodeo Isuzu Dvo

All Torque Settings in Tables

engine torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Oil pan Oil drain plug to Oil pan 45 33
  • C24SE
unverified source
Oil pan Oil pan drain plug 25 18
  • HFV6
unverified source
Oil pan Oil pan 22 16
  • 4JJ1-TC
  • 4JK1-TC
unverified source
Oil pan Oil pan to Cylinder block 8 6
  • C24SE
unverified source
Oil pan Oil pan to Cylinder block attaching bolt 20 15 Minimum torque
  • HFV6
unverified source
Oil pan Oil pan to Cylinder block attaching bolt 26 19 Maximum torque
  • HFV6
unverified source
Oil pan Oil pan bolts 15 11
  • C24SE
unverified source
Oil filter Oil filter body bolt 19 14
  • 4JA1-T
  • 4JA1-L
  • 4JA1-TC
  • 4JH1-TC
unverified source
Oil filter Oil filter body nut 24 18
  • 4JA1-T
  • 4JA1-L
  • 4JA1-TC
  • 4JH1-TC
unverified source
Oil filter Oil filter adaptor attaching bolt 20 15 Minimum torque
  • HFV6
unverified source
Oil filter Oil filter adaptor attaching bolt 26 19 Maximum torque
  • HFV6
unverified source
Oil pressure switch Oil pressure switch 15 11
  • 4JJ1-TC
  • 4JK1-TC
unverified source
Oil pressure switch Oil pressure switch to Oil pump 40 30
  • C24SE
unverified source
Cylinder head Cylinder head bolt 49 36 Step 1
  • 4JA1-T
  • 4JA1-L
  • 4JA1-TC
  • 4JH1-TC
unverified source
Cylinder head Cylinder head bolt 70 52 Step 1
  • 4JJ1-TC
  • 4JK1-TC
unverified source
Cylinder head Cylinder head bolt 70 52 Step 2
  • 4JJ1-TC
  • 4JK1-TC
unverified source
Cylinder head Cylinder head to Cylinder block 25 18
  • C24SE
unverified source
Cylinder head Cylinder head attaching bolt 12 9 Minimum torque, Step 1, Bolt M8
  • HFV6
unverified source
Cylinder head Cylinder head attaching bolt 18 13 Maximum torque, Step 1, Bolt M8
  • HFV6
unverified source
Cylinder head Cylinder head attaching bolt 40 30 Minimum torque, Step 1, Bolt M11
  • HFV6
unverified source
Cylinder head Cylinder head attaching bolt 50 37 Maximum torque, Step 1, Bolt M11
  • HFV6
unverified source
Spark plugs Spark plugs 25 18
  • C24SE
unverified source
Spark plugs Glow plug 18 13
  • 4JJ1-TC
  • 4JK1-TC
unverified source
Piston rods Connecting rod bearing cap bolt 78 58 Minimum torque
  • 4JA1-T
  • 4JA1-L
  • 4JA1-TC
unverified source
Piston rods Connecting rod bearing cap bolt 88 65 Maximum torque
  • 4JA1-T
  • 4JA1-L
  • 4JA1-TC
unverified source
Piston rods Connecting rod bearing cap bolt 29 21 Minimum torque, Step 1
  • 4JH1-TC
unverified source
Piston rods Connecting rod bearing cap bolt 29.2 22 Maximum torque, Step 1
  • 4JH1-TC
unverified source
Piston rods Con-rod bearing cap to Con-rod 35 26
  • C24SE
unverified source
Piston rods Connecting rod cap attaching bolt 30 22 Step 1
  • HFV6
unverified source
Piston rods Connecting rod cap attaching bolt 25 18 Step 3
  • HFV6
unverified source
Intake manifold Intake manifold bolt 19 14
  • 4JA1-T
  • 4JA1-L
  • 4JA1-TC
  • 4JH1-TC
unverified source
Intake manifold Intake manifold bolts and nuts 25 18
  • 4JJ1-TC
  • 4JK1-TC
unverified source
Intake manifold Intake manifold to Cylinder head 22 16
  • C24SE
unverified source
Intake manifold Upper intake manifold to Lower intake manifold attaching bolt 23 17
  • HFV6
unverified source
Intake manifold Upper intake manifold to Cylinder head attaching bolt 23 17
  • HFV6
unverified source
Intake manifold Lower intake manifold to Cylinder head attaching bolt 23 17
  • HFV6
unverified source
Intake manifold Intake manifold flange nut 24 18
  • 4JA1-T
  • 4JA1-L
  • 4JA1-TC
  • 4JH1-TC
unverified source
Engine block Crankshaft bearing cap bolt 167 123
  • 4JA1-T
  • 4JA1-L
  • 4JA1-TC
  • 4JH1-TC
unverified source
Engine block Crankshaft bearing cap bolts 166 122
  • 4JJ1-TC
  • 4JK1-TC
unverified source
Engine block Crankshaft main bearing cap inboard attaching bolt 20 15 Step 1
  • HFV6
unverified source
Engine block Crankshaft main bearing cap outboard attaching bolt 15 11 Step 1
  • HFV6
unverified source
Engine block Crankshaft main bearing cap side attaching bolt 30 22 Step 1
  • HFV6
unverified source
Engine mounts Engine mount 52 38
  • 4JJ1-TC
  • 4JK1-TC
unverified source
Engine mounts Engine mount bracket to Cylinder block attaching bolt 43 32 Minimum torque
  • HFV6
unverified source
Engine mounts Engine mount bracket to Cylinder block attaching bolt 57 42 Maximum torque
  • HFV6
unverified source
Engine mounts Engine mount to bracket attaching nut 70 52 Minimum torque
  • HFV6
unverified source
Engine mounts Engine mount to bracket attaching nut 90 66 Maximum torque
  • HFV6
unverified source
Engine mounts Engine mount to Frame attaching nut 44 32 Minimum torque
  • HFV6
unverified source
Engine mounts Engine mount to Frame attaching nut 60 44 Maximum torque
  • HFV6
unverified source
Knock sensor Knock sensor bolt 20 15
  • C24SE
unverified source
Knock sensor Knock sensor attaching nut 23 17
  • HFV6
unverified source
Alternator Generator bracket bolt 40 30
  • 4JA1-T
  • 4JA1-L
  • 4JA1-TC
  • 4JH1-TC
unverified source
Alternator Generator bracket bolts 51 38
  • 4JJ1-TC
  • 4JK1-TC
unverified source
Alternator Generator assembly 35 26 Long bolt
  • C24SE
unverified source
Alternator Generator assembly 20 15 Short bolt
  • C24SE
unverified source
Alternator Bracket for alternator to Cylinder block 40 30
  • C24SE
unverified source
Alternator Low alternator bracket 25 18
  • C24SE
unverified source
Camshaft Camshaft thrust plate bolt 19 14
  • 4JA1-T
  • 4JA1-L
  • 4JA1-TC
  • 4JH1-TC
unverified source
Camshaft Camshaft timing gear bolt 110 81
  • 4JA1-T
  • 4JA1-L
  • 4JA1-TC
  • 4JH1-TC
unverified source
Camshaft Camshaft timing gear to Camshaft 50 37
  • C24SE
unverified source
Camshaft Camshaft sprocket attaching bolt 49 36 Minimum torque
  • HFV6
unverified source
Camshaft Camshaft sprocket attaching bolt 67 49 Maximum torque
  • HFV6
unverified source
Camshaft Camshaft bearing cap 18 13
  • 4JJ1-TC
  • 4JK1-TC
unverified source
Camshaft Camshaft bearing cap attaching bolt 8 6 Minimum torque, Step 1
  • HFV6
unverified source
Camshaft Camshaft bearing cap attaching bolt 12 9 Maximum torque, Step 1
  • HFV6
unverified source
Camshaft Camshaft bearing cap attaching bolt 8 6 Minimum torque, Step 2
  • HFV6
unverified source
Camshaft Camshaft bearing cap attaching bolt 12 9 Maximum torque, Step 2
  • HFV6
unverified source
Camshaft Camshaft intermediate driveshaft sprocket attaching bolt 58 43 Minimum torque
  • HFV6
unverified source
Camshaft Camshaft intermediate driveshaft sprocket attaching bolt 72 53 Maximum torque
  • HFV6
unverified source
Water pump Water pump bolt and nut 20 15
  • 4JA1-T
  • 4JA1-L
  • 4JA1-TC
  • 4JH1-TC
unverified source
Water pump Water pump bolts and nuts 25 18
  • 4JJ1-TC
  • 4JK1-TC
unverified source
Water pump Water pump assembly bolts 25 18
  • C24SE
unverified source
Water pump Water pump to Cylinder block 17 13
  • C24SE
unverified source
Belt tensioner Timing chain tensioner nuts 10 7
  • 4JJ1-TC
  • 4JK1-TC
unverified source
Belt tensioner Accessory drive belt idler pulley attaching bolt 50 37
  • HFV6
unverified source
Belt tensioner Accessory drive belt tensioner attaching bolt 50 37
  • HFV6
unverified source

drivetrain torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Differential Differential case and carrier assembly to Front axle case 26 19
unverified source
Differential Rear differential carrier bolts 25 18
  • 7.94 Inch Ring Gear
unverified source
Differential Rear differential carrier bolts 64 47
  • 8.66 Inch Ring Gear
unverified source
Differential Rear differential carrier nuts 37 27
  • 7.94 Inch Ring Gear
unverified source
Differential Rear differential carrier nuts 44 32
  • 8.66 Inch Ring Gear
unverified source
Wheel hub assembly Front wheel hub bolt 103 76
  • 4x2
unverified source
Wheel hub assembly Front wheel hub bolt 103 76
  • 4x2
  • 4x4
  • High Ride Suspension
unverified source
Clutch pressure plate Clutch pressure plate 18 13
  • 4JJ1-TC
unverified source
Clutch pressure plate Clutch pressure plate 18 13
  • 4JK1-TC
unverified source
Transmission fluid pan Drain plug 19 14
  • AW30-40LE Transmission
unverified source
Transmission fluid pan Drain plug 35 26
  • JR405E Transmission
unverified source
Transmission fluid pan Drain plug 39 29
  • MUX Manual Transmission
unverified source
Transmission fluid pan Oil pan attaching bolt 12 9
  • 4L60E Automatic Transmission
unverified source
Transmission fluid pan Oil pan fixing bolts 7 5
  • AW30-40LE Transmission
unverified source
Transmission fluid pan Oil pan bolt 8 6
  • JR405E Transmission
unverified source
Transmission mount Transmission mount attaching bolt 50 37
  • 4L60E Automatic Transmission
unverified source
Transmission mount Transmission mount attaching nut 52 38
  • 4L60E Automatic Transmission
unverified source
Transmission mount Crossmember to Frame mount nuts 76 56
  • AW30-40LE Transmission
unverified source
Transmission mount Crossmember to Transmission mounting nuts 52 38
  • AW30-40LE Transmission
unverified source
Transmission mount Transmission mount bolt 50 37
  • JR405E Transmission
unverified source
Transmission mount Transmission mount nut 52 38
  • JR405E Transmission
unverified source
Transmission mount Transmission to Engine block 45 33 M10
  • C24SE
unverified source
Transmission mount Transmission to Engine block 60 44 M12
  • C24SE
unverified source
Transmission mount Transmission to Engine bolts 40 30 M10
  • JR405E Transmission
unverified source
Transmission mount Transmission to Engine bolts 76 56 M12
  • JR405E Transmission
unverified source
Transmission mount Transmission bolts 76 56
  • MUX Manual Transmission
unverified source
Axle shaft Front drive axle assembly mounting bolts and nuts 169 125
unverified source

steering torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Tie rod end Tie rod end lock nut 98 72
unverified source
Tie rod end Tie rod assembly 83 61
  • 4x2
unverified source
Tie rod end Tie rod assembly 103 76
  • 4x2
  • High Ride Suspension
unverified source
Tie rod end Tie rod assembly 103 76
  • 4x4
  • High Ride Suspension
unverified source
Steering column Steering column assembly to Second steering shaft bolts 31 23
unverified source
Steering column Steering column fixing bolt 20 15
unverified source
Steering shaft Second steering shaft fixing bolt 20 15
unverified source
Steering wheel Steering wheel fixing nut 35 26
unverified source
Power steering pump Pump assembly to Pump bracket fixing bolt 40 30
  • 4JH1-TC
unverified source
Power steering pump Pump assembly to Pump bracket fixing bolt 40 30
  • 4JA1-T
unverified source
Power steering pump Power steering pump nuts 25 18
  • 4JJ1-TC
unverified source
Power steering pump Power steering pump nuts 25 18
  • 4JK1-TC
unverified source
Power steering pump Pump for power steering to Engine block 30 22
  • C24SE
unverified source
Power steering pump Pump pulley bolt 28 21
  • 4JH1-TC
unverified source
Power steering pump Pump pulley bolt 28 21
  • 4JA1-T
unverified source
Power steering pump Power steering pump bracket attaching bolt 22 16
  • HFV6
unverified source

exhaust torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Exhaust manifold Exhaust manifold bolt and nuts 24 18
  • 4JA1-T
  • 4JA1-L
  • 4JA1-TC
  • 4JH1-TC
unverified source
Exhaust manifold Exhaust manifold nuts 52 38
  • 4JJ1-TC
  • 4JK1-TC
unverified source
Exhaust manifold Exhaust manifold to Cylinder head 22 16
  • C24SE
unverified source
Exhaust manifold Exhaust manifold to Cylinder head attaching bolt 17 13 Minimum torque
  • HFV6
unverified source
Exhaust manifold Exhaust manifold to Cylinder head attaching bolt 23 17 Maximum torque
  • HFV6
unverified source
Exhaust manifold Exhaust manifold bracket bolt 19 14
  • 4JA1-T
  • 4JA1-L
  • 4JA1-TC
  • 4JH1-TC
unverified source

brakes torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Brake caliper Front brake caliper bracket bolt 226 167
unverified source
Brake caliper Front support bracket 206 152 Minimum torque
unverified source
Brake caliper Front support bracket 245 181 Maximum torque
unverified source

suspension torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Wheels Wheel nut 118 87 Steel wheel
unverified source
Wheels Wheel nut 118 87 Aluminium wheel
unverified source
Struts Strut spring compressor nut 25 18
  • 4x2
unverified source
Shock absorbers/shocks Front shock absorber nut 55 41
  • 4x2
unverified source
Shock absorbers/shocks Front shock absorber nut 20 15
  • 4x2
  • 4x4
  • High Ride Suspension
unverified source
Shock absorbers/shocks Front shock absorber bolt and nut 137 101
  • 4x2
unverified source
Shock absorbers/shocks Front shock absorber bolt and nut 93 69
  • 4x2
  • 4x4
  • High Ride Suspension
unverified source
Shock absorbers/shocks Rear shock absorber nut to Frame side pin 39 29
unverified source
Shock absorbers/shocks Rear shock absorber nut to Lower clamp pin 39 29
unverified source
Stabilizer bar Front stabilizer bar bracket and bolt 25 18
  • 4x2
unverified source
Stabilizer bar Front stabilizer bar bracket and bolt 25 18
  • 4x2
  • 4x4
  • High Ride Suspension
unverified source
Stabilizer bar Rear stabilizer bar assembly bolt 25 18
unverified source
Stabilizer bar Rear stabilizer bar assembly to Frame bracket nut 50 37
unverified source
Sway bar links/Stabilizer links Front stabilizer link nut 50 37
  • 4x2
unverified source
Sway bar links/Stabilizer links Front stabilizer link nut 50 37
  • 4x2
  • 4x4
  • High Ride Suspension
unverified source
Sway bar links/Stabilizer links Rear stabilizer bar link nut 50 37
unverified source
Radius arm Front torsion bar arm bracket 116 86
  • 4x2
  • 4x4
  • High Ride Suspension
unverified source
Radius arm Front torsion bar rear nut 235 173
  • 4x2
  • 4x4
  • High Ride Suspension
unverified source
Control arm Front upper control arm bolt 137 101
  • 4x2
unverified source
Control arm Front upper control arm nut 108 80
  • 4x2
  • 4x4
  • High Ride Suspension
unverified source
Control arm Front lower control arm nut 186 137
  • 4x2
unverified source
Ball joint Front upper ball joint bolt and nut 31 23
  • 4x2
unverified source
Ball joint Front upper ball joint bolt and nut 57 42
  • 4x2
  • 4x4
  • High Ride Suspension
unverified source
Ball joint Front upper ball joint nut 98 72
  • 4x2
unverified source
Ball joint Front upper ball joint nut 98 72
  • 4x2
  • 4x4
  • High Ride Suspension
unverified source
Ball joint Front lower ball joint nut 127 94
  • 4x2
unverified source
Ball joint Front lower ball joint nut 127 94
  • 4x2
  • 4x4
  • High Ride Suspension
unverified source
Ball joint Ball joint nut 147 108
  • 4x2
unverified source
Ball joint Ball joint nut 147 108
  • 4x2
  • 4x4
  • High Ride Suspension
unverified source

general torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to

Did you find the answer to your specific question?
👍 2 👎 10
