Land Rover Defender (1990-2016) Torque Spec Settings

Researched by Wan Wei Tay Engineer with a degree in mechanical engineering
Updated: February 09, 2024

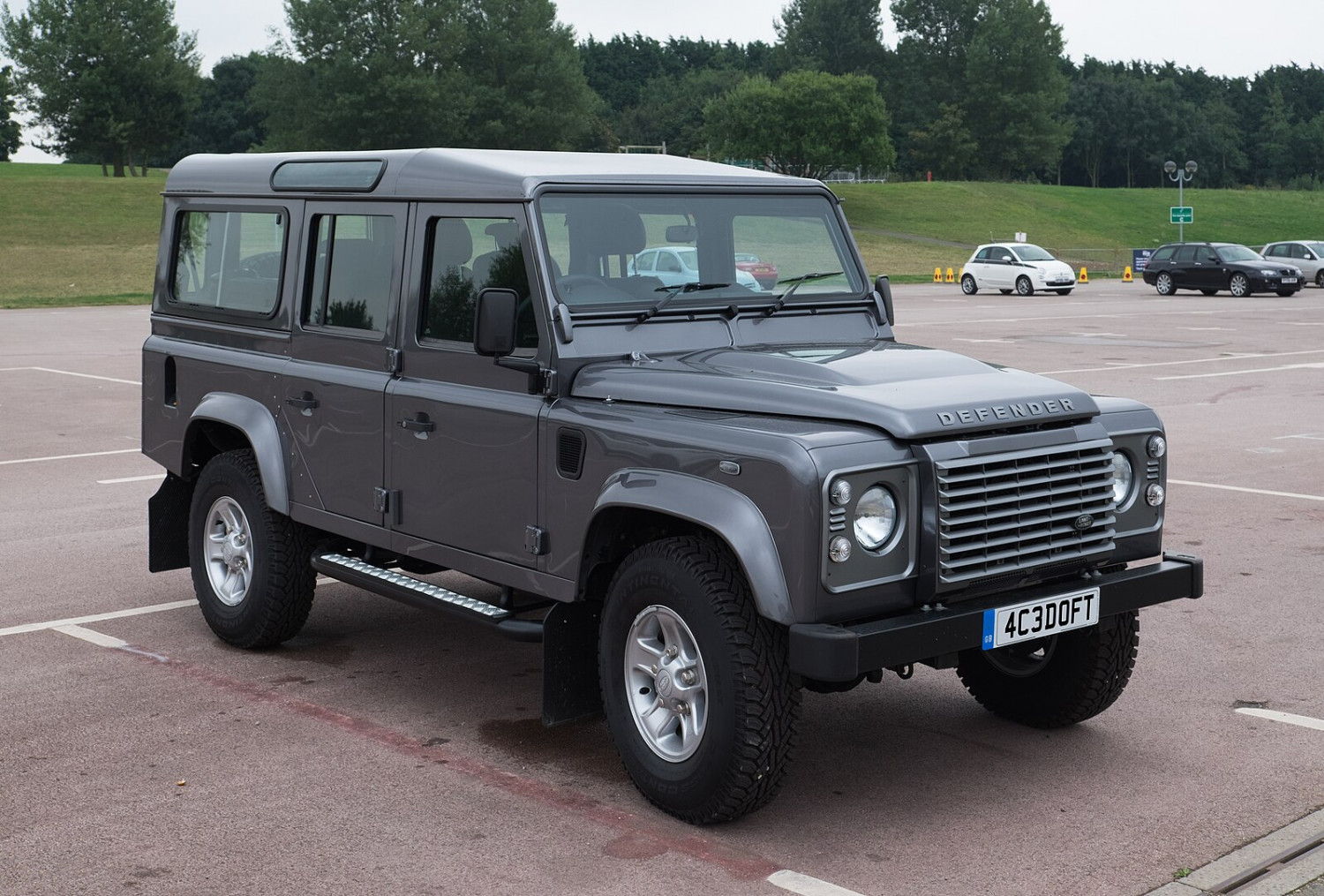

By Shelka04 at English Wikipedia, CC BY-SA 3.0

Below you'll find the tightening torques for the Land Rover Defender in both Nm and ft/lbs. The first table contains the most-used torque settings. The tables after it contain all torque spec values I could find.

Most-used torque settings for Land Rover Defender

Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Oil filter Oil filter 13 10 Spin on
  • 300Tdi
 verified source
Glow plugs Glow plug 20 15
  • 300Tdi
 verified source
Differential Oil drain plug 30 22
  • 300Tdi
 verified source
Disc brake Front brake caliper bolts 82 60
  • 300Tdi
 verified source
Disc brake Rear brake caliper bolts 82 60
  • 300Tdi
 verified source
Wheels Road wheels 130 96 Alloy wheels
verified source
Wheels Road wheels 100 74 Steel wheels
verified source
Wheels Road wheels 170 125 Heavy duty wheels
verified source

Are these torque settings right for you?

  • Production years: 1990 - 2016
  • Type of van: pickup
  • Model variant: Base

All Torque Settings in Tables

engine torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Oil pan Oil sump drain plug 35 26
  • 300Tdi
 verified source
Oil pan Sump to Block bolts 25 18
  • 300Tdi
 verified source
Oil pan Sump to Cylinder block and front cover 25 18
  • 300Tdi
 verified source
Oil pan Baffle plate to Breather side cover 4 3
  • 300Tdi
 verified source
Oil filter Oil filter 13 10 Spin on
  • 300Tdi
 verified source
Oil filter Oil filter adaptor 45 33
  • 300Tdi
 verified source
Oil pressure switch Oil pressure switch 17 13
  • 300Tdi
 verified source
Oil dipstick Oil level tube 25 18
  • 300Tdi
 verified source
Oil feeder Oil squirt jet assembly 17 13
  • 300Tdi
 verified source
Oil pump Oil pick up assembly to Bearing cap 9 7
  • 300Tdi
 verified source
Oil pump Oil pick up assembly to Front cover 25 18
  • 300Tdi
 verified source
Vacuum pump Vacuum pump 25 18
  • 300Tdi
 verified source
Piston rods Connecting rod to Cap 59 44
  • 300Tdi
 verified source
Cylinder head Cylinder head bolts 40 30
  • 300Tdi
 verified source
Glow plugs Glow plug 20 15
  • 300Tdi
 verified source
Glow control unit Glow plug terminal nut 2 1
  • 300Tdi
 verified source
Intake manifold Inlet manifold nut and bolt 25 18
  • 300Tdi
 verified source
Intake manifold Inlet manifold stud 8 6
  • 300Tdi
 verified source
Intake manifold Heat shield to Inlet manifold 6 4
  • 300Tdi
 verified source
Engine block Cylinder block drain plug 25 18
  • 300Tdi
 verified source
Engine block Housing to Cylinder block retaining bolts 45 33
  • 300Tdi
 verified source
Engine block Front cover to Cylinder block 25 18
  • 300Tdi
 verified source
Engine block Auxiliary mounting bracket to Cylinder block bolt and nut 25 18
  • 300Tdi
 verified source
Engine block Auxiliary mounting bracket to Cylinder block stud 8 6
  • 300Tdi
 verified source
Engine block Oil drain pipe to Block (internal) 25 18
  • 300Tdi
 verified source
Engine block Oil drain pipe to Block (external) 25 18
  • 300Tdi
 verified source
Engine block Blanking plug, oil gallery, rear 37 27
  • 300Tdi
 verified source
Engine mounts Engine mounting foot to Cylinder block 85 63
  • 300Tdi
 verified source
Engine mounts Engine mounting foot to Flywheel housing 45 33
  • 300Tdi
 verified source
Engine mounts Engine mounting foot rubber to Mounting foot bolt and nut 85 63
  • 300Tdi
 verified source
Engine mounts Front engine mounting to Chassis fixings 45 33
  • 300Tdi
 verified source
Sensor Water temperature sensor 14 10
  • 300Tdi
 verified source
Sensor Air temperature sensor (inlet manifold) 14 10
  • 300Tdi
 verified source
Alternator Generator mounting bracket to Front cover 45 33
  • 300Tdi
 verified source
Alternator Generator to Mounting bracket 85 63
  • 300Tdi
 verified source
Alternator Generator pulley to Hub 95 70
  • 300Tdi
 verified source
Alternator Generator belt guard 25 18
  • 300Tdi
 verified source
Alternator Generator to Auxiliaries mounting bracket 25 18
  • 300Tdi
 verified source
Starter Starter motor bolt and nut 45 33
  • 300Tdi
 verified source
Camshaft Camshaft gear 80 59
  • 300Tdi
 verified source
Camshaft Camshaft hub bolt 80 59
  • 300Tdi
 verified source
Camshaft thrust plate 9 35 26
  • 300Tdi
 verified source
Crankshaft Pulley nut 80 59 Step 1
  • 300Tdi
 verified source
Water pump Water pump to Block and mounting plate 25 18
  • 300Tdi
 verified source
Water pump Water pump pulley to Hub 25 18
  • 300Tdi
 verified source
Fuel/Oil cooler Oil cooler unions to Filter adaptor 45 33
  • 300Tdi
 verified source
Radiator Thermostat housing 25 18
  • 300Tdi
 verified source
Radiator Thermostat housing plug 6 4
  • 300Tdi
 verified source
Radiator Water outlet elbow to Thermostat housing 25 18
  • 300Tdi
 verified source
Radiator Fan pulley to Hub 25 18
  • 300Tdi
 verified source
Radiator Fan and viscous coupling to Hub 45 33
  • 300Tdi
 verified source
Radiator Sensors to Water outlet elbow 25 18
  • 300Tdi
 verified source
Radiator Water outlet elbow blanking plug 25 18
  • 300Tdi
 verified source
Air conditioning Compressor mounting bracket to Front cover 45 33
  • 300Tdi
 verified source
Air conditioning Compressor to Mounting bracket nut 25 18
  • 300Tdi
 verified source
Air conditioning Compressor to Mounting bracket stud 8 6
  • 300Tdi
 verified source
Air conditioning Compressor belt guard nut 25 18
  • 300Tdi
 verified source
Belt tensioner/Timing chains Belt tensioner fixing bolt 45 33
  • 300Tdi
 verified source
Belt tensioner/Timing chains Belt tensioner assembly to Front cover plate 25 18
  • 300Tdi
 verified source
Belt tensioner/Timing chains Belt tensioner pulley to Tensioner arm 45 33
  • 300Tdi
 verified source
Belt tensioner/Timing chains Idler pulley to Front cover plate 45 33
  • 300Tdi
 verified source
Belt tensioner/Timing chains Static idler - timing belt nut 45 33
  • 300Tdi
 verified source
Belt tensioner/Timing chains Static idler - timing belt stud 10 7
  • 300Tdi
 verified source
Belt tensioner/Timing chains Timing belt tensioner 45 33
  • 300Tdi
 verified source
Belt tensioner/Timing chains Timing pulley to Camshaft hub 25 18
  • 300Tdi
 verified source
Belt tensioner/Timing chains Auxiliary drive auto tensioner nut 45 33
  • 300Tdi
 verified source
Belt tensioner/Timing chains Auxiliary drive auto tensioner stud 14 10
  • 300Tdi
 verified source
Valve cover Rocker cover fixing nut 10 7
  • 300Tdi
 verified source
Valve cover Rocker cover stud 8 6
  • 300Tdi
 verified source
Fuel system Fuel lift pump 25 18
  • 300Tdi
 verified source
Fuel system Injector clamp nut 25 18
  • 300Tdi
 verified source
Fuel system Injector clamp stud 8 6
  • 300Tdi
 verified source
Fuel system Fuel injection pump nut 25 18
  • 300Tdi
 verified source
Fuel system Fuel injection pump stud 8 6
  • 300Tdi
 verified source
Fuel system Fuel injection pump access plate to Front cover plate 25 18
  • 300Tdi
 verified source
Fuel system Fuel lift pump to Filter union 15 11
  • 300Tdi
 verified source
Fuel system Lift pump to Fuel filter banjo bolt 33 24
  • 300Tdi
 verified source
Fuel system Fuel filter to Fuel injection pump banjo bolt 33 24
  • 300Tdi
 verified source
Fuel system Fuel injection pump from Fuel filter banjo bolt 25 18
  • 300Tdi
 verified source
Fuel system Injector pipes to Injectors and fuel injection pump 29 21
  • 300Tdi
 verified source
Fuel system Spill rail to Injectors banjo bolt 10 7
  • 300Tdi
 verified source
Fuel system Spill rail to Injection pump banjo bolt 25 18
  • 300Tdi
 verified source
Fuel system Boost pipe injection pump banjo bolt 10 7
  • 300Tdi
 verified source
Fuel system Rear of injection pump plug 29 21
  • 300Tdi
 verified source
Fuel system Tank to Front mounting bracket fixings 20 15
  • 300Tdi
 verified source

drivetrain torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Differential Oil drain plug 30 22
  • 300Tdi
 verified source
Differential Oil filler/level plug 30 22
  • 300Tdi
 verified source
Differential Differential case (front to rear) 60 44
  • 300Tdi
 verified source
Differential Differential case rear stake nut 72 53
  • 300Tdi
 verified source
Differential Propeller shaft to Rear differential drive flange fixings 47 35
  • 300Tdi
 verified source
Differential Front differential drive flange to Drive shaft 47 35
  • 300Tdi
 verified source
Differential Rear differential drive flange to Drive shaft 47 35
  • 300Tdi
 verified source
Differential Rear differential unit self locking nuts 40 30
  • 300Tdi
 verified source
Differential Front differential bearing cap to Pinion housing 90 66
  • 300Tdi
 verified source
Differential Rear differential bearing cap to Pinion housing 90 66
  • 300Tdi
 verified source
Differential Rear differential cover fixings 30 22
  • 300Tdi
 verified source
Differential Pinion housing to Front axle case 41 30
  • 300Tdi
 verified source
Differential Pinion housing to Rear axle case 41 30
  • 300Tdi
 verified source
Differential Crown wheel to Front differential housing 58 43
  • 300Tdi
 verified source
Differential Crown wheel to Rear differential case 58 43
  • 300Tdi
 verified source
Wheel hub assembly Front hub adjusting nut 50 37
  • 300Tdi
 verified source
Wheel hub assembly Rear hub adjusting nut 50 37
  • 300Tdi
 verified source
Wheel hub assembly Front hub driving member to Hub 65 48
  • 300Tdi
 verified source
Wheel hub assembly Rear axle shaft to Hub bolts 65 48
  • 300Tdi
 verified source
Clutch pressure plate Pressure plate cover fixings 34 25
  • 300Tdi
 verified source
Clutch assembly Clutch cover plate to Flywheel 34 25
  • 300Tdi
 verified source
Flywheel/Flex plate Flywheel to Crankshaft 146 108
  • 300Tdi
 verified source
Flywheel/Flex plate Flywheel housing 45 33
  • 300Tdi
 verified source
Flywheel/Flex plate Flywheel housing clutch cover stud 10 7
  • 300Tdi
 verified source
Flywheel/Flex plate Flywheel housing plug 12 9
  • 300Tdi
 verified source
Flywheel/Flex plate Flex drive plate to Crankshaft 146 108
  • 300Tdi
  • Auto
 verified source
Flywheel/Flex plate Flex drive plate to Ring gear 25 18
  • 300Tdi
  • Auto
 verified source
Flywheel/Flex plate Flex drive plate to Torque converter 45 33
  • 300Tdi
  • Auto
 verified source
Transmission mount/case Transmission to Engine fixings 45 33
  • 300Tdi
  • Manual Gearbox
 verified source
Transmission mount/case LH and RH mounting brackets to Gearbox fixings 55 41
  • 300Tdi
  • Manual Gearbox
 verified source
Transmission mount/case Slave cylinder to Bell housing 25 18
  • 300Tdi
  • Manual Gearbox
 verified source
Transmission mount/case Bell housing to Cylinder block 40 30
  • 300Tdi
  • Manual Gearbox
 verified source
Transmission mount/case Transmission brake to Speedometer housing 72 53
  • 300Tdi
 verified source
Transfer Transfer box to Extension housing fixings 40 30
  • 300Tdi
  • Manual Gearbox
 verified source
Transfer Transfer box to Gearbox 45 33
  • 300Tdi
  • Manual Gearbox
 verified source
Transfer Bottom cover to Transfer case 25 18
  • 300Tdi
 verified source
Transfer Transfer box front drive flange to Drive shaft 45 33
  • 300Tdi
 verified source
Transfer Transfer box rear drive flange to Drive shaft 45 33
  • 300Tdi
 verified source
Transfer Transfer gearbox mounting brackets to Chassis 30 22
  • 300Tdi
 verified source
Transfer Mounting brackets to Transfer gearbox 55 41
  • 300Tdi
 verified source
Transfer Transfer breather 15 11
  • 300Tdi
 verified source
Transfer End cover gear change housing 9 7
  • 300Tdi
 verified source
Transfer Front output housing to Transfer case 25 18
  • 300Tdi
 verified source
Transfer Gear change housing 25 18
  • 300Tdi
 verified source
Transfer Pivot bracket to Extension housing 25 18
  • 300Tdi
 verified source
Transfer Bearing housing to Transfer case 25 18
  • 300Tdi
 verified source
Transfer Bearing housing cover to Transfer gearbox 45 33
  • 300Tdi
 verified source
Transfer Selector finger to Cross shaft high/low 25 18
  • 300Tdi
 verified source
Transfer Selector fork, high/low to Shaft 25 18
  • 300Tdi
 verified source
Drive/Axle shaft Front propeller shaft to Transfer box nuts 47 35
  • 300Tdi
  • Manual Gearbox
 verified source
Drive/Axle shaft Rear propeller shaft to Transmission brake drum nuts 47 35
  • 300Tdi
  • Manual Gearbox
 verified source
Drive/Axle shaft Panhard rod to Front axle bracket bolts 88 65
  • 300Tdi
 verified source
Drive/Axle shaft Panhard rod mounting arm nut 110 81
  • 300Tdi
 verified source

steering torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Tie rod end Front tie rod and drag link fixing 40 30
  • 300Tdi
 verified source
Tie rod end Tie bar to Mounting nut 110 81
  • 300Tdi
 verified source
Tie rod end Front track rod end 40 30
  • 300Tdi
 verified source
Tie rod end Front drag link to Swivel pin arm fixings 40 30
  • 300Tdi
 verified source
Steering rack Tie bar to Steering box fixings 81 60
  • 300Tdi
 verified source
Steering column Steering column bracket nuts 22 16
  • 300Tdi
 verified source
Steering shaft Shaft to Steering box pinch bolts 25 18
  • 300Tdi
 verified source
Steering wheel Steering wheel nut 50 37
  • 300Tdi
 verified source
Power steering Power steering pump mounting 35 26
  • 300Tdi
 verified source
Power steering Power steering pump front mounting plate bolts 9 7
  • 300Tdi
 verified source
Power steering Power steering pump pulley bolts 10 7
  • 300Tdi
 verified source
Power steering Power steering pump reservoir hose clamp 3 2
  • 300Tdi
 verified source

exhaust torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Exhaust manifold Exhaust manifold nut 45 33
  • 300Tdi
 verified source
Exhaust manifold Exhaust manifold stud 10 7
  • 300Tdi
 verified source
Exhaust manifold Exhaust front pipe to Manifold flange fixings 50 37
  • 300Tdi
 verified source
Exhaust manifold Intermediate pipe to Front pipe nuts 30 22
  • 300Tdi
 verified source
Exhaust manifold Intermediate pipe to Tail pipe nuts 30 22
  • 300Tdi
 verified source
Turbo Turbocharger oil drain adaptor to Block 42 31
  • 300Tdi
 verified source
Turbo Oil drain pipe to Turbocharger 25 18
  • 300Tdi
 verified source
Turbo Turbocharger oil drain pipe to Adaptor 38 28
  • 300Tdi
 verified source
Turbo Turbocharger oil feed pipe adaptor to Block 25 18
  • 300Tdi
 verified source
Turbo Turbocharger oil feed pipe to Adaptor 25 18
  • 300Tdi
 verified source
Turbo Oil feed pipe to Turbocharger 19 14
  • 300Tdi
 verified source
Turbo Turbocharger to Cylinder head nut 45 33
  • 300Tdi
 verified source
Turbo Turbocharger to Cylinder head stud 10 7
  • 300Tdi
 verified source
Turbo Turbocharger to Blanking plate 25 18
  • 300Tdi
 verified source
Turbo Turbocharger to EGR valve 25 18
  • 300Tdi
 verified source
EGR EGR delivery tube to Valve 25 18
  • 300Tdi
 verified source
EGR EGR delivery tube to Mixing tube 25 18
  • 300Tdi
 verified source
Muffler Exhaust front pipe to Intermediate silencer nuts 50 37
  • 300Tdi
 verified source

brakes torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Disc brake Front brake caliper bolts 82 60
  • 300Tdi
 verified source
Disc brake Rear brake caliper bolts 82 60
  • 300Tdi
 verified source
Disc brake Front brake disc to Hub retaining bolts 73 54
  • 300Tdi
 verified source
Disc brake Rear brake disc to Hub retaining bolts 73 54
  • 300Tdi
 verified source
Brake line Brake pipes to Master cylinder ports 15 11
  • 300Tdi
 verified source
Brake line Front brake flexible hoses to Caliper 15 11
  • 300Tdi
 verified source
Brake line Rear brake pipe to Caliper 15 11
  • 300Tdi
 verified source
Brake pedal Pedal box to Engine bulkhead fixings 25 18
  • 300Tdi
 verified source
Master cylinder Master cylinder to Servo fixings 26 19
  • 300Tdi
 verified source

suspension torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Wheels Road wheels 130 96 Alloy wheels
verified source
Wheels Road wheels 100 74 Steel wheels
verified source
Wheels Road wheels 170 125 Heavy duty wheels
verified source
Spring Spring retainer plate bolts 14 10
verified source
Shock absorbers/shocks Rear shock absorber fixing 37 27
verified source
Sway bar links/Stabilizer links Front anti-roll bar to Links nuts 68 50
verified source
Sway bar links/Stabilizer links Rear anti-roll bar to Links bolt 68 50
verified source
Radius arm Radius arm to Front axle 197 145
verified source
Radius arm Radius arm to Front chassis 176 130
verified source
Control arm Lower link to Rear axle 176 130
verified source
Control arm Bottom link to Rear chassis 176 130
verified source
Control arm Top link bracket to Rear cross member 47 35
verified source
Ball joint Pivot bracket ball joint to Rear axle 176 130
verified source
Ball joint Front ball joint link arm nut 40 30
verified source

general torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Example of a Defender

By DeFacto - Own work, CC BY-SA 4.0


Did you find the answer to your specific question?
👍 0 👎 0

Related Vans:
