Volkswagen Amarok 1 (2010-on) Torque Spec Settings

By Vauxford - Own work, CC BY-SA 4.0

Below you'll find the tightening torques for the Volkswagen Amarok 1 in both Nm and ft/lbs. The first table contains the most-used torque settings. The tables after it contain all torque spec values I could find.

Most-used torque specs for Volkswagen Amarok 1

Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Oil pan Oil drain plug 30 22
  • 2.0L Diesel Engine
 verified source
Oil pan Oil drain plug 30 22
  • 2.0L Direct Injection Engine
 verified source
Oil filter Oil filter cap 25 18
  • 2.0L Diesel Engine
 verified source
Spark plugs Glow plug 18 13
  • 2.0L Diesel Engine
 verified source
Brake caliper Front brake caliper bolts 65 48
verified source
Wheels Wheel bolt to Wheel hub 180 133
verified source

Are these torque settings right for you?

  • Production years: 2010 - present
  • Generation: 1
  • Type of van: pickup
  • Model variant: Base

All Torque Settings in Tables

engine torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Oil pan Oil drain plug 30 22
  • 2.0L Diesel Engine
 verified source
Oil pan Oil drain plug 30 22
  • 2.0L Direct Injection Engine
 verified source
Oil pan Oil sump bolts 5 4 Initial tightening
  • 2.0L Diesel Engine
 verified source
Oil pan Oil sump bolts 15 11
  • 2.0L Diesel Engine
 verified source
Oil pan Top section oil sump bolts 15 11 Step 1
  • 2.0L Direct Injection Engine
 verified source
Oil pan Bottom section oil sump bolts 8 6 Step 1
  • 2.0L Direct Injection Engine
 verified source
Oil pan Baffle plate bolt 15 11
  • 2.0L Diesel Engine
 verified source
Oil pan Baffle plate bolt 9 7
  • 2.0L Direct Injection Engine
 verified source
Oil filter Oil filter cap 25 18
  • 2.0L Diesel Engine
 verified source
Oil filter Oil filter bracket bolts 14 10 Step 1
  • 2.0L Diesel Engine
 verified source
Oil pressure switch Oil pressure switch 22 16
  • 2.0L Diesel Engine
 verified source
Oil pressure switch Oil pressure switch 20 15
  • 2.0L Direct Injection Engine
 verified source
Cylinder head Cylinder head bolt 35 26 Step 1
  • 2.0L Diesel Engine
 verified source
Cylinder head Cylinder head bolt 60 44 Step 2
  • 2.0L Diesel Engine
 verified source
Cylinder head Cylinder head bolt 40 30 Step 1
  • 2.0L Direct Injection Engine
 verified source
Spark plugs Glow plug 18 13
  • 2.0L Diesel Engine
 verified source
Spark plugs Spark plug 25 18
  • 2.0L Direct Injection Engine
 verified source
Piston rods Conrod bolt 30 22
  • 2.0L Diesel Engine
 verified source
Piston rods Conrod bolt 45 33
  • 2.0L Direct Injection Engine
 verified source
Engine block Bearing cap bolts 65 48
  • 2.0L Diesel Engine
 verified source
Engine block Crankshaft bolts 65 48
  • 2.0L Direct Injection Engine
 verified source
Engine mounts Engine mounting to Frame bolts 50 37
  • 2.0L Diesel Engine
 verified source
Engine mounts Engine mounting to Frame bolts 50 37
  • 2.0L Direct Injection Engine
 verified source
Engine mounts Engine mounting to Engine support nut 90 66
  • 2.0L Diesel Engine
 verified source
Engine mounts Engine mounting to Engine support nut 90 66
  • 2.0L Direct Injection Engine
 verified source
Engine mounts Engine support to Crankcase bolts 50 37
  • 2.0L Diesel Engine
 verified source
Engine mounts Engine support to Crankcase bolts 50 37
  • 2.0L Direct Injection Engine
 verified source
Knock sensor Knock sensor bolt 20 15
  • 2.0L Direct Injection Engine
 verified source
Camshaft Camshaft pulley bolt 20 15
  • 2.0L Diesel Engine
 verified source
Water pump Coolant pump bolt 15 11
  • 2.0L Diesel Engine
 verified source
Water pump Coolant pump bolt 9 7
  • 2.0L Direct Injection Engine
 verified source
Belt tensioner Belt pulley bolt 10 7
  • 2.0L Diesel Engine
 verified source

drivetrain torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Differential Rear final drive oil drain plug 33 24
verified source
Differential Front final drive oil filler plug 35 26
verified source
Differential Rear final drive oil filler plug 33 24
verified source
Differential Rear final drive cover bolts 44 32
verified source
Differential Rear final drive bearing bracket bolts 85 63
verified source
Differential Rear differential bolts 140 103
verified source
CVs Front outer cv joint bolt 150 111
verified source
Wheel hub assembly Front wheel hub bolts 20 15
verified source
Wheel hub assembly Front wheel bearing housing bolts 150 111
verified source
Clutch pressure plate Thrust plate bolt 13 10 M6 bolt
  • 6-Speed Manual Gearbox
 verified source
Clutch pressure plate Thrust plate bolt 20 15 M7 bolt
  • 6-Speed Manual Gearbox
 verified source

steering torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Tie rod end Track rod 100 74
verified source
Tie rod end Track rod to Wheel bearing housing 90 66
verified source
Steering rack Power steering rack bolts 90 66
verified source
Steering column Steering column bolts 20 15
verified source
Steering column Steering column lower securing bolt 8 6
verified source
Steering wheel Steering wheel bolt 30 22
verified source

exhaust torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Exhaust manifold Exhaust manifold nuts 25 18
  • 2.0L Diesel Engine
 verified source
Exhaust manifold Turbocharger bolts 5 4
  • 2.0L Direct Injection Engine
 verified source
Exhaust manifold Turbocharger bolts 12 9
  • 2.0L Direct Injection Engine
 verified source
Exhaust manifold Turbocharger bolts 16 12
  • 2.0L Direct Injection Engine
 verified source
Exhaust manifold Turbocharger bolts 25 18
  • 2.0L Direct Injection Engine
 verified source

brakes torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Brake caliper Front brake caliper bolts 65 48
verified source
Brake caliper Rear brake drum bolt 20 15
verified source

suspension torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Wheels Wheel bolt to Wheel hub 180 133
verified source
Struts Front suspension strut nut 110 81
verified source
Struts Front suspension strut mounting nut 25 18
verified source
Shock absorbers/shocks Rear shock absorber nuts 90 66
verified source
Stabilizer bar Anti-roll bar to Coupling rod 110 81
  • 2.0L Diesel Engine
 verified source
Control arm Front upper suspension link bolts 50 37
verified source
Control arm Front lower suspension link nuts 110 81
verified source
Ball joint Front upper ball joint nut 30 22
verified source
Ball joint Front lower ball joint nut 60 44
verified source

general torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to

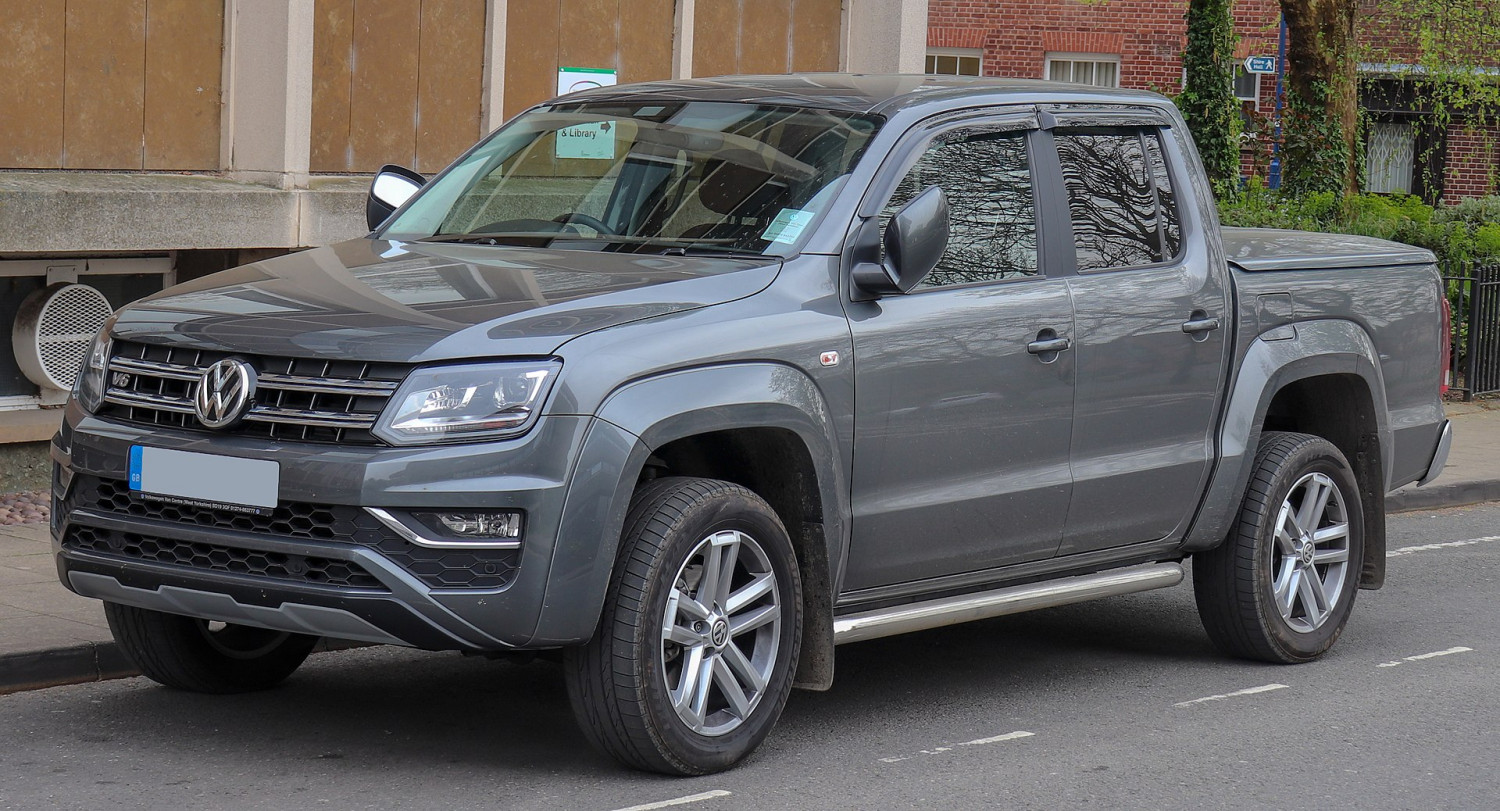

Example of a Amarok 1

By Vauxford - Own work, CC BY-SA 4.0
