Ram ProMaster (2013-on) Torque Spec Settings

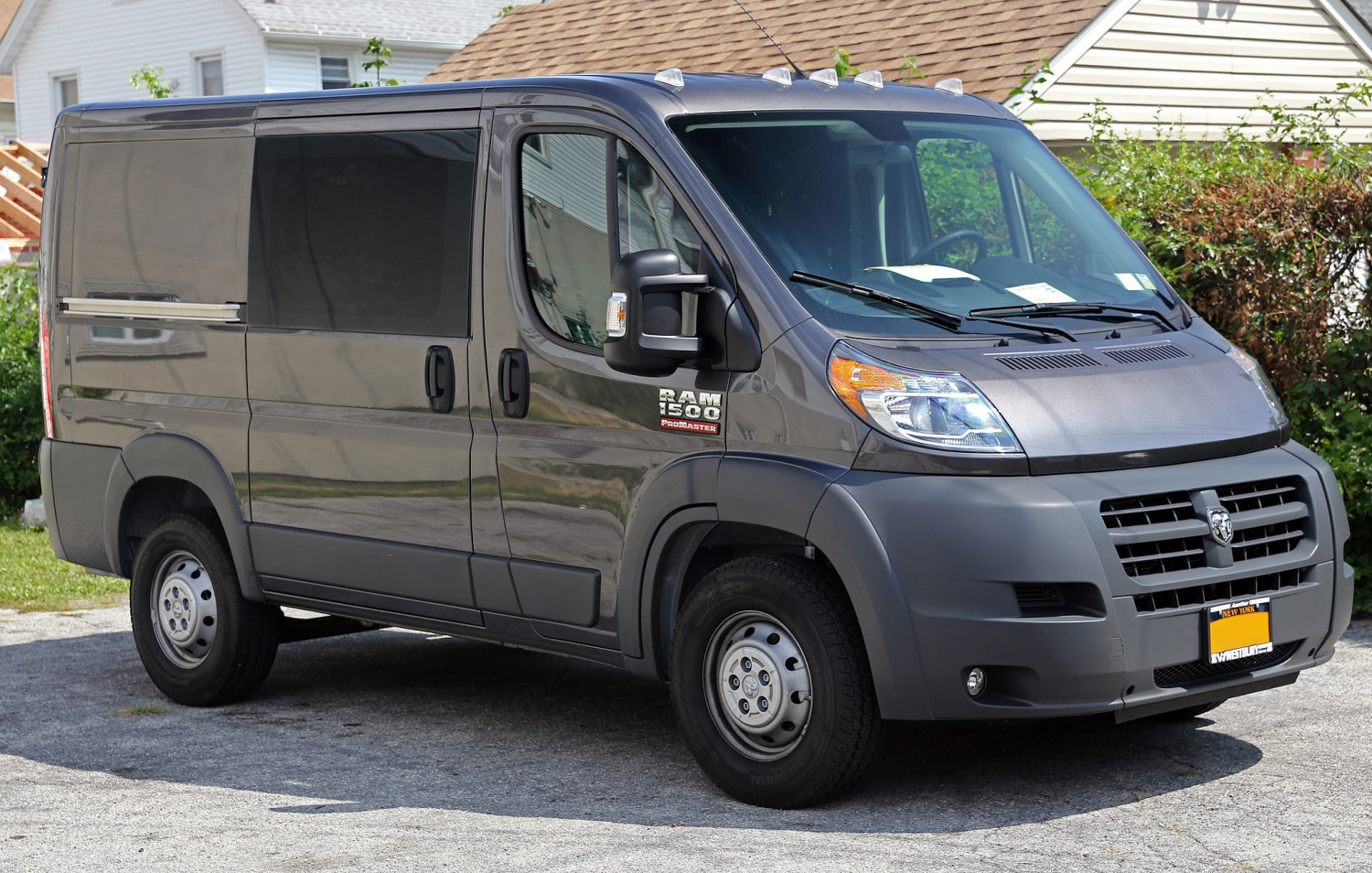

Mr.choppers, CC BY-SA 3.0, via Wikimedia Commons

Below you'll find the tightening torques for the Ram ProMaster in both Nm and ft/lbs. The first table contains the most-used torque settings. The second table contains all torque spec values I could find.

To make sure these are the correct tightening torque values, you can use the data below to verify this is the right model.

Are these torque settings right for you?

  • Production years: 2013 - present
  • Generation: 2
  • Model variant: Base
  • Also known as: Fiat Ducato Peugeot Boxer Citroën Relay Peugeot Manager Citroën Jumper Opel Movano Vauxhall Movano

All Torque Settings in Tables

General torque settings

Nut Torque (Nm) Torque (ft/lbs) Remarks Source
Road wheels 160 118 Steel rims, 15 inch wheels unverified source
Road wheels 180 133 Steel rims, 16 inch wheels unverified source
Road wheels 160 118 Aluminium rims, 15 inch wheels unverified source
Road wheels 180 133 Aluminium rims, 16 inch wheels unverified source
Drain cap 50 37 F30 DT engine unverified source
Cylinder block sump 25 18 F30 DT engine unverified source
Oil pressure sensor 40 30 F30 DT engine unverified source
Oil level/Oil temperature sensor 25 18 F30 DT engine unverified source
Cylinder head screws 130 96 F30 DT engine, 15mm screws unverified source
Cylinder head screws 65 48 F30 DT engine, 12mm screws unverified source
Cylinder head screws 25 18 F30 DT engine, 8mm screws unverified source
Air inlet manifold 30 22 F30 DT engine unverified source
Exhaust manifold 25 18 F30 DT engine unverified source
Clutch pressure plate to Flywheel 20 15 unverified source
Camshaft carrier bearings bolt 25 18 F30 DT engine unverified source
Camshaft sprockets 110 81 F30 DT engine unverified source
Front brake disc bolts 12 9 unverified source
Front brake caliper bolts 34 25 unverified source
Front brake caliper support bolts 210 155 unverified source
Rear brake caliper bolts 30 22 unverified source
Rear brake caliper yoke bolts 160 118 unverified source
Rear brake disc bolts 12 9 unverified source
Suspension arm to Front subframe horizontal bolt 320 236 Front suspension unverified source
Suspension arm to Front subframe vertical bolt 320 236 Front suspension unverified source
Hub carrier ball joint to Suspension arm 150 111 Front suspension unverified source
Steering ball joint to Front hub carrier nut 80 59 Front suspension unverified source
Front hub carrier ball joint bolts 115 85 Front suspension unverified source
Front strut to Body fixing bolts 60 44 unverified source
Conrod screws 50 37 F30 DT engine, Pre-tighten unverified source
Power-assisted steering pump bolts 22 16 PUMA engine unverified source
Power-assisted steering pump bolts 40 30 SOFIM engine unverified source
Hub nut 150 111 Front suspension unverified source
Hub nut 450 332 Rear suspension unverified source
Coolant pump 50 37 F30 DT engine, 10mm screws unverified source
Coolant pump 25 18 F30 DT engine, 8mm screws unverified source
Power steering pump drive gear bolt 130 96 F30 DT engine unverified source
Anti-roll bar bearing fixing on front subframe 50 37 Front suspension unverified source
Anti-roll bar bearing bolts 190 140 Rear suspension, with metallic suspension unverified source
Anti-roll bar bearing bolts 45 33 Rear suspension, with pneumatic suspension unverified source
Anti-roll bar rod nuts 30 22 Rear suspension, with metallic suspension unverified source
Anti-roll bar rod nuts 30 22 Rear suspension, with pneumatic suspension unverified source
Anti-roll bar transfer bar nut 56 41 Front suspension unverified source
