Audi A4 2 (2000-2007) Torque Spec Settings

By OSX - Own work, Public Domain

Below you'll find the tightening torques for the Audi A4 2 in both Nm and ft/lbs. The first table contains the most-used torque settings. The tables after it contain all torque spec values I could find.

Most-used torque specs for Audi A4 2

Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Oil pan Drainage plug 27 20
  • 8E2
unverified source
Oil pan Drainage plug 30 22
  • 8E5
unverified source
Oil filter Oil filter 25 18
  • 8E2
unverified source
Spark plugs Spark plugs 27 20
  • 8E2
unverified source
Spark plugs Spark plugs 25 18
  • 8E5
unverified source
Differential Drainage plug 32 24
  • 8E2
unverified source
Differential Drainage plug 32 24
  • 8E5
unverified source
Wheels Wheel bolts 120 89
  • 8E2
unverified source
Wheels Wheel bolts 120 89
  • 8E2
unverified source
Wheels Wheel bolts 120 89
  • 8E5
unverified source
Wheels Wheel bolts 120 89
  • 8E5
unverified source

To make sure these are the correct tightening torque values, you can use the data below to verify this is the right model.

Are these torque settings right for you?

  • Production years: 2000 - 2007
  • Generation: 2
  • Type of van: car
  • Model variant: Base

All Torque Settings in Tables

engine torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Oil pan Drainage plug 27 20
  • 8E2
unverified source
Oil pan Drainage plug 30 22
  • 8E5
unverified source
Oil filter Oil filter 25 18
  • 8E2
unverified source
Oil filter Oil filter housing cover 25 18
  • 8E5
unverified source
Spark plugs Spark plugs 27 20
  • 8E2
unverified source
Spark plugs Spark plugs 25 18
  • 8E5
unverified source
Glow plugs Glow plugs 15 11
  • 8E2
unverified source
Glow plugs Glow plugs 15 11
  • 8E5
unverified source
Sensor MAF sensor fasteners 4 3
  • 8E2
unverified source
Sensor MAF sensor fasteners 4 3
  • 8E5
unverified source
Sensor Oxygen sensor fastener 46 34
  • 8E2
unverified source
Sensor Oxygen sensor fastener 46 34
  • 8E5
unverified source
Alternator Alternator fasteners 8 6
  • 8E2
unverified source
Alternator Alternator fasteners 8 6
  • 8E5
unverified source
Alternator Alternator power cable fastener 5 4
  • 8E2
unverified source
Alternator Alternator power cable fastener 5 4
  • 8E5
unverified source
Battery Ignition coil bolts 7 5
  • 8E2
unverified source
Battery Ignition coil bolts 7 5
  • 8E5
unverified source
Radiator Thermostat housing fasteners 6 4
  • 8E2
unverified source
Radiator Thermostat housing fasteners 6 4
  • 8E5
unverified source
Radiator Viscous fan clutch fastener 24 18
  • 8E2
unverified source
Radiator Viscous fan clutch fastener 24 18
  • 8E5
unverified source

drivetrain torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Differential Drainage plug 32 24
  • 8E2
unverified source
Differential Drainage plug 32 24
  • 8E5
unverified source
Differential Filler plug 32 24
  • 8E2
unverified source
Differential Filler plug 32 24
  • 8E5
unverified source
Wheel hub assembly Wheel hub bolts 80 59
  • 8E2
unverified source
Wheel hub assembly Wheel hub bearing fastener 200 148
  • 8E5
unverified source
Drive/Axle shaft Drive shaft nut 115 85
  • 8E2
unverified source

steering torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Tie rod end Tie rod end locknut 40 30
  • 8E2
unverified source
Tie rod end Tie rod end locknut 40 30
  • 8E5
unverified source
Tie rod end Tie rod end fastening bolt 7 5
  • 8E2
unverified source
Tie rod end Tie rod end fastening bolt 7 5
  • 8E5
unverified source
Tie rod end Tie rod end to Steering knuckle fastening nut 45 33
  • 8E2
unverified source
Tie rod end Tie rod end to Steering knuckle fastening nut 45 33
  • 8E5
unverified source

exhaust torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to

brakes torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Disc brake Front brake caliper 30 22
  • 8E2
unverified source
Disc brake Front brake caliper 30 22
  • 8E5
unverified source
Disc brake Rear brake caliper 35 26
  • 8E2
unverified source
Disc brake Rear brake caliper 35 26
  • 8E5
unverified source
Disc brake Front brake caliper bracket 190 140
  • 8E2
unverified source
Disc brake Front brake caliper bracket 190 140
  • 8E5
unverified source
Disc brake Rear brake caliper bracket 75 55
  • 8E2
unverified source
Disc brake Rear brake caliper bracket 75 55
  • 8E5
unverified source
Disc brake Front brake caliper bleed screw 10 7
  • 8E2
unverified source
Disc brake Front brake caliper bleed screw 7 5
  • 8E5
unverified source

suspension torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Wheels Wheel bolts 120 89
  • 8E2
unverified source
Wheels Wheel bolts 120 89
  • 8E5
unverified source
Struts Front shock strut to Steering knuckle lower fasteners 90 66
  • 8E2
unverified source
Struts Front shock strut piston rod nut 50 37
  • 8E2
unverified source
Struts Front shock strut piston rod nut 50 37
  • 8E5
unverified source
Struts Front shock absorber strut mount upper fastener 75 55
  • 8E2
unverified source
Struts Front shock absorber strut mount upper fastener 75 55
  • 8E5
unverified source
Struts Rear shock strut piston rod upper fastening 25 18
  • 8E2
unverified source
Struts Rear shock strut piston rod upper fastening 25 18
  • 8E5
unverified source
Shock absorbers/shocks Rear top shock absorber fastening 36 27
  • 8E2
unverified source
Shock absorbers/shocks Rear top shock absorber fastening 36 27
  • 8E5
unverified source
Shock absorbers/shocks Front shock absorber lower fastening 90 66
  • 8E5
unverified source
Shock absorbers/shocks Rear shock absorber lower fastener 150 111
  • 8E2
unverified source
Shock absorbers/shocks Rear shock absorber lower fastener 150 111
  • 8E5
unverified source
Stabilizer bar Front stabilizer rod fastening 40 30
  • 8E5
unverified source
Stabilizer bar Rear stabilizer bar to Control arm fastener 25 18
  • 8E2
unverified source
Sway bar links/Stabilizer links Front stabilizer link to Stabilizer bar fastener 40 30
  • 8E2
unverified source
Sway bar links/Stabilizer links Front stabilizer link to Stabilizer bar fastener 40 30
  • 8E5
unverified source
Sway bar links/Stabilizer links Rear stabilizer link to Stabilizer bar fastener 40 30
  • 8E2
unverified source
Control arm Front stabilizer bar to Control arm fastener 40 30
  • 8E2
unverified source
Control arm Control arm to Subframe front fastener 70 52
  • 8E2
unverified source
Control arm Control arm to Subframe rear fastener 70 52
  • 8E5
unverified source
Control arm Upper control arm fastenings 45 33
  • 8E2
unverified source
Control arm Upper control arm fasteners 45 33
  • 8E5
unverified source
Control arm Control arms to Shock strut mount fastener 50 37
  • 8E5
unverified source
Ball joint Front ball joint fastener 75 55
  • 8E2
unverified source
Ball joint Front ball joint fastener 120 89
  • 8E5
unverified source

general torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to

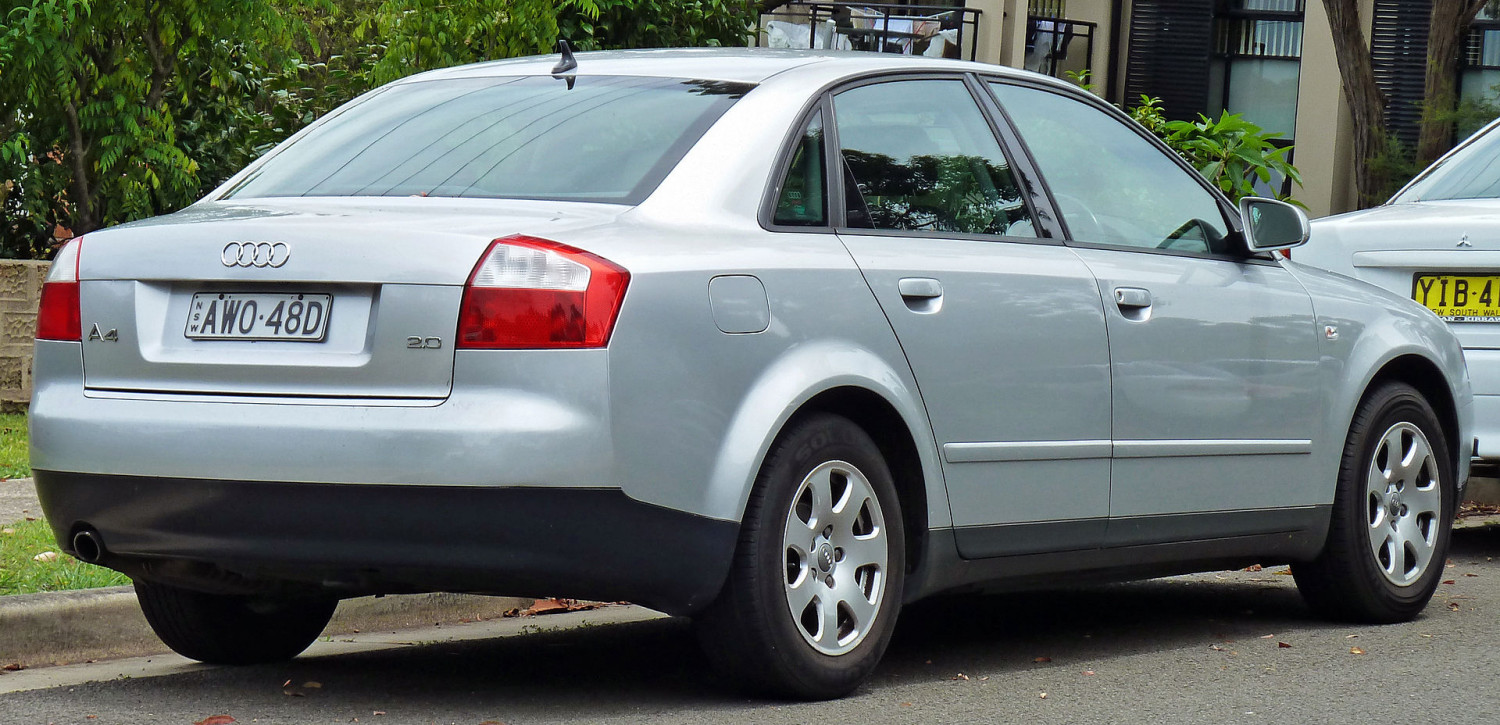

Example of a A4 2

By OSX - Own work, Public Domain
