Nissan Navara 1 (1997-2004) Torque Spec Settings

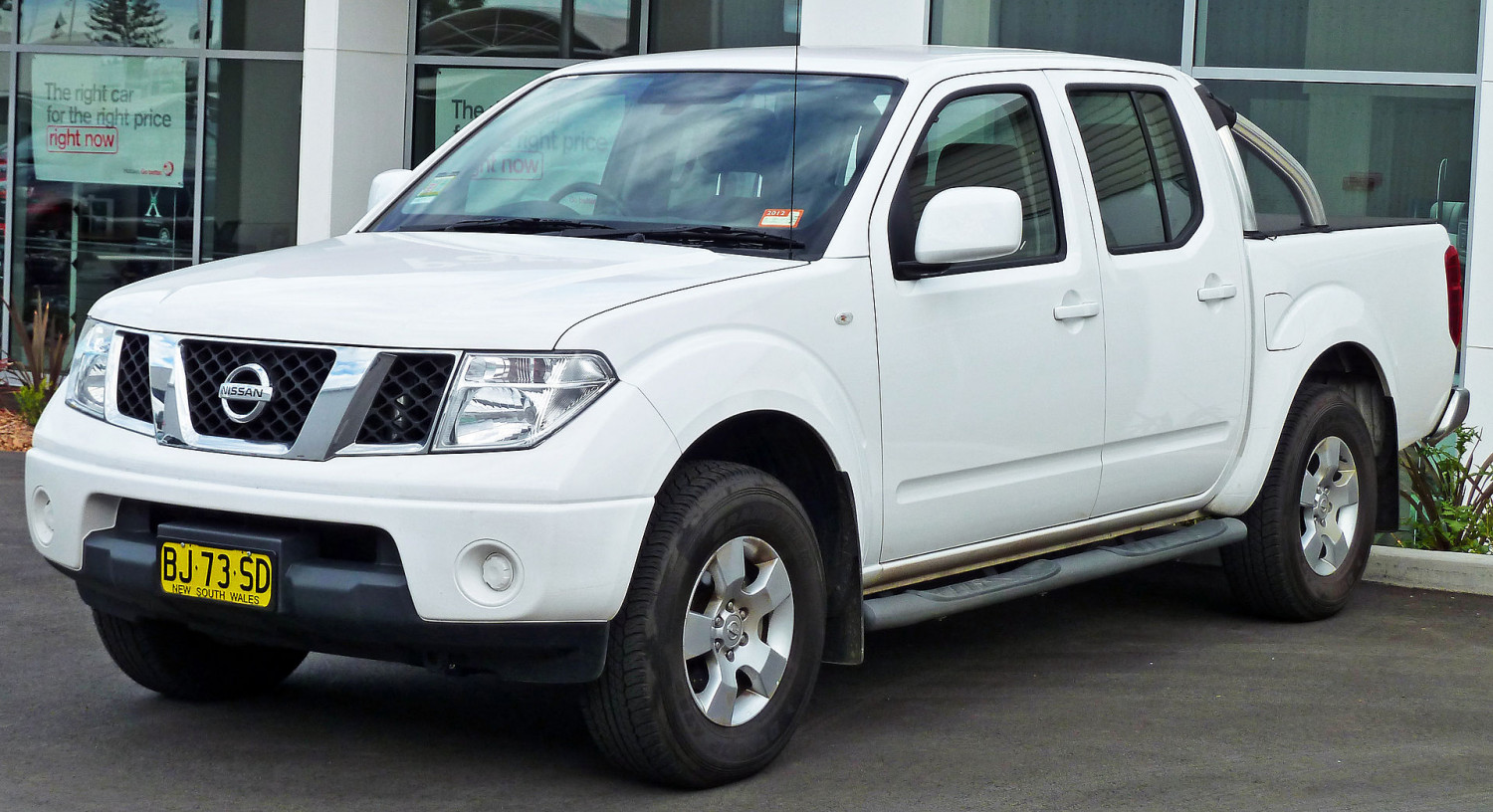

By IFCAR - Own work, Public Domain

Below you'll find the tightening torques for the Nissan Navara 1 in both Nm and ft/lbs. The first table contains the most-used torque settings. The tables after it contain all torque spec values I could find.

Most-used torque settings for Nissan Navara 1

Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Oil pan Drain plug 29 21 Minimum torque
unverified source
Oil pan Drain plug 39 29 Maximum torque
unverified source
Transmission fluid pan Drain plug 25 18 Minimum torque
  • Manual Transmission
 unverified source
Transmission fluid pan Drain plug 34 25 Maximum torque
  • Manual Transmission
 unverified source
Transmission fluid pan Drain plug 29 21 Minimum torque
  • Automatic Transmission
 unverified source
Transmission fluid pan Drain plug 39 29 Maximum torque
  • Automatic Transmission
 unverified source
Brake caliper Front brake caliper bolts 34 25 Minimum torque
unverified source
Brake caliper Front brake caliper bolts 41 30 Maximum torque
unverified source
Wheels Wheel nuts 118 87 Minimum torque
unverified source
Wheels Wheel nuts 147 108 Maximum torque
unverified source

Are these torque settings right for you?

  • Production years: 1997 - 2004
  • Generation: 1
  • Type of van: pickup
  • Model variant: Base
  • Also known as: Nissan Datsun Nissan Frontier Nissan NP300 Nissan Fiera Nissan Hardbody Nissan PickUp Nissan Terrano Nissan Winner Nissan Skystar Nissan Big M Frontier Nissan Xciter Dongfeng/ZNA Rich Peugeot Pick-Up Giad Pickup Bhamo Pickup

All Torque Settings in Tables

engine torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Oil pan Oil pan bolts 6 4 Minimum torque
unverified source
Oil pan Oil pan bolts 7 5 Maximum torque
unverified source
Oil pan Drain plug 29 21 Minimum torque
unverified source
Oil pan Drain plug 39 29 Maximum torque
unverified source
Cylinder head Cylinder head bolts 29 21 Step 1
unverified source
Cylinder head Cylinder head bolts 79 58 Step 2
unverified source
Cylinder head Cylinder head bolts 25 18 Minimum torque, Step 4
unverified source
Cylinder head Cylinder head bolts 34 25 Maximum torque, Step 4
unverified source
Cylinder head Cylinder head bolts 75 55 Minimum torque, Step 5, If angle wrench is not available
unverified source
Cylinder head Cylinder head bolts 84 62 Maximum torque, Step 5, If angle wrench is not available
unverified source
Spark plugs Spark plug 20 15 Minimum torque
unverified source
Spark plugs Spark plug 29 21 Maximum torque
unverified source
Piston rods Connecting rod bearing cap nuts 14 10 Minimum torque, Step 1
unverified source
Piston rods Connecting rod bearing cap nuts 16 12 Maximum torque, Step 1
unverified source
Piston rods Connecting rod bearing cap nuts 38 28 Minimum torque, Step 2, If angle wrench is not available
unverified source
Piston rods Connecting rod bearing cap nuts 44 32 Maximum torque, Step 2, If angle wrench is not available
unverified source
Engine block Cylinder block drain plug 34 25 Minimum torque
unverified source
Engine block Cylinder block drain plug 44 32 Maximum torque
unverified source
Camshaft Camshafts and camshaft brackets bolts 2 1 Step 1
unverified source
Camshaft Camshafts and camshaft brackets bolts 9 7 Minimum torque, Step 2
unverified source
Camshaft Camshafts and camshaft brackets bolts 12 9 Maximum torque, Step 2
unverified source
Water pump Water pump bolt 16 12 Minimum torque
unverified source
Water pump Water pump bolt 21 15 Maximum torque
unverified source

drivetrain torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Differential Front drain plug 39 29 Minimum torque
unverified source
Differential Front drain plug 59 44 Maximum torque
unverified source
Differential Rear axle case drain plug 59 44 Minimum torque
  • 2WD
 unverified source
Differential Rear axle case drain plug 98 72 Maximum torque
  • 2WD
 unverified source
Differential Front filler plug 39 29 Minimum torque
unverified source
Differential Front filler plug 59 44 Maximum torque
unverified source
Differential Rear axle case filler plug 59 44 Minimum torque
  • 2WD
 unverified source
Differential Rear axle case filler plug 98 72 Maximum torque
  • 2WD
 unverified source
Wheel hub assembly Wheel hub bolt 49 36 Minimum torque
  • 2WD
 unverified source
Wheel hub assembly Wheel hub bolt 69 51 Maximum torque
  • 2WD
 unverified source
Wheel hub assembly Wheel hub bolt 49 36 Minimum torque
  • 4WD
 unverified source
Wheel hub assembly Wheel hub bolt 69 51 Maximum torque
  • 4WD
 unverified source
Clutch pressure plate Clutch disc bolts 10 7 Minimum torque, Step 1
unverified source
Clutch pressure plate Clutch disc bolts 20 15 Maximum torque, Step 1
unverified source
Clutch pressure plate Clutch disc bolts 22 16 Minimum torque, Final step
unverified source
Clutch pressure plate Clutch disc bolts 29 21 Maximum torque, Final step
unverified source
Transmission fluid pan Drain plug 25 18 Minimum torque
  • Manual Transmission
 unverified source
Transmission fluid pan Drain plug 34 25 Maximum torque
  • Manual Transmission
 unverified source
Transmission fluid pan Drain plug 29 21 Minimum torque
  • Automatic Transmission
 unverified source
Transmission fluid pan Drain plug 39 29 Maximum torque
  • Automatic Transmission
 unverified source
Transmission mount Bolts securing transmission 39 29 Bolt 1, Minimum torque
  • Manual Transmission
 unverified source
Transmission mount Bolts securing transmission 49 36 Bolt 1, Maximum torque
  • Manual Transmission
 unverified source
Transmission mount Bolts securing transmission 39 29 Bolt 2, Minimum torque
  • Manual Transmission
 unverified source
Transmission mount Bolts securing transmission 49 36 Bolt 2, Maximum torque
  • Manual Transmission
 unverified source
Transmission mount Bolts securing transmission 16 12 Bolt 3, With nut, Minimum torque
  • Manual Transmission
 unverified source
Transmission mount Bolts securing transmission 22 16 Bolt 3, With nut, Maximum torque
  • Manual Transmission
 unverified source
Transmission mount Bolts securing transmission 16 12 Bolt 4, Minimum torque
  • Manual Transmission
 unverified source
Transmission mount Bolts securing transmission 22 16 Bolt 4, Maximum torque
  • Manual Transmission
 unverified source
Transmission mount Bolts securing transmission 39 29 Bolt 1, Minimum torque
  • Automatic Transmission
 unverified source
Transmission mount Bolts securing transmission 49 36 Bolt 1, Maximum torque
  • Automatic Transmission
 unverified source
Transmission mount Bolts securing transmission 3 2 Bolt 2, Minimum torque
  • Automatic Transmission
 unverified source
Transmission mount Bolts securing transmission 4 3 Bolt 2, Maximum torque
  • Automatic Transmission
 unverified source
Transmission mount Bolts securing transmission 16 12 Bolt 3, Minimum torque
  • Automatic Transmission
 unverified source
Transmission mount Bolts securing transmission 22 16 Bolt 3, Maximum torque
  • Automatic Transmission
 unverified source
Transmission mount Rear extension case to Transmission case 20 15 Minimum torque
  • Automatic Transmission
 unverified source
Transmission mount Rear extension case to Transmission case 25 18 Maximum torque
  • Automatic Transmission
 unverified source
Axle shaft Rear axle shaft 118 87 Minimum torque
  • 2WD
 unverified source
Axle shaft Rear axle shaft 147 108 Maximum torque
  • 2WD
 unverified source
Axle shaft Rear axle shaft 118 87 Minimum torque
  • 4WD
 unverified source
Axle shaft Rear axle shaft 147 108 Maximum torque
  • 4WD
 unverified source

steering torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Tie rod end Tie rod end nut 54 40 Minimum torque
  • 2WD
 unverified source
Tie rod end Tie rod end nut 98 72 Maximum torque
  • 2WD
 unverified source
Tie rod end Tie rod end nut 54 40 Minimum torque
  • 4WD
 unverified source
Tie rod end Tie rod end nut 98 72 Maximum torque
  • 4WD
 unverified source
Tie rod end Tie rod clamp nut 14 10 Minimum torque
  • 2WD
 unverified source
Tie rod end Tie rod clamp nut 20 15 Maximum torque
  • 2WD
 unverified source
Tie rod end Tie rod assembly lock nut 78 58 Minimum torque
  • 4WD
 unverified source
Tie rod end Tie rod assembly lock nut 98 72 Maximum torque
  • 4WD
 unverified source
Pitman arm Pitman arm to Tie-rod 54 40 Minimum torque
unverified source
Pitman arm Pitman arm to Tie-rod 98 72 Maximum torque
unverified source
Pitman arm Sector shaft to Pitman arm 137 101 Minimum torque, Model PB48S
unverified source
Pitman arm Sector shaft to Pitman arm 177 131 Maximum torque, Model PB48S
unverified source
Pitman arm Sector shaft to Pitman arm 235 173 Minimum torque, Model PB59K
unverified source
Pitman arm Sector shaft to Pitman arm 265 195 Maximum torque, Model PB59K
unverified source
Idler arm Idler arm nut 54 40 Minimum torque
  • 2WD
 unverified source
Idler arm Idler arm nut 69 51 Maximum torque
  • 2WD
 unverified source
Idler arm Idler arm nut 54 40 Minimum torque
  • 4WD
 unverified source
Idler arm Idler arm nut 69 51 Maximum torque
  • 4WD
 unverified source
Steering knuckle Knuckle spindle to Knuckle arm 72 53 Minimum torque
  • 2WD
 unverified source
Steering knuckle Knuckle spindle to Knuckle arm 97 72 Maximum torque
  • 2WD
 unverified source
Steering column Steering column shaft bolts 24 18 Minimum torque
unverified source
Steering column Steering column shaft bolts 29 21 Maximum torque
unverified source
Steering wheel Steering wheel nut 29 21 Minimum torque
unverified source
Steering wheel Steering wheel nut 39 29 Maximum torque
unverified source
Power steering pump Power steering pump pulley nut 54 40 Minimum torque
unverified source
Power steering pump Power steering pump pulley nut 68 50 Maximum torque
unverified source

exhaust torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to

brakes torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Brake caliper Front disc brake main pin bolt 22 16 Minimum torque
unverified source
Brake caliper Front disc brake main pin bolt 31 23 Maximum torque
unverified source
Brake caliper Front brake caliper bracket bolts 122 90 Minimum torque
unverified source
Brake caliper Front brake caliper bracket bolts 136 100 Maximum torque
unverified source
Brake caliper Front brake caliper bolts 34 25 Minimum torque
unverified source
Brake caliper Front brake caliper bolts 41 30 Maximum torque
unverified source

suspension torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Wheels Wheel nuts 118 87 Minimum torque
unverified source
Wheels Wheel nuts 147 108 Maximum torque
unverified source
Wheels Front wheel bearing lock nut 34 25 Minimum torque
  • 2WD
 unverified source
Wheels Front wheel bearing lock nut 39 29 Maximum torque
  • 2WD
 unverified source
Wheels Front wheel bearing lock nut 78 58 Minimum torque
  • 4WD
 unverified source
Wheels Front wheel bearing lock nut 98 72 Maximum torque
  • 4WD
 unverified source
Wheels Front wheel bearing lock nut 0.5 0 Retighten, Minimum torque
  • 4WD
 unverified source
Wheels Front wheel bearing lock nut 1.5 1 Retighten, Maximum torque
  • 4WD
 unverified source
Wheels Rear wheel bearing lock nut 147 108 Minimum torque
  • 2WD
 unverified source
Wheels Rear wheel bearing lock nut 196 145 Maximum torque
  • 2WD
 unverified source
Wheels Rear wheel bearing lock nut 245 181 Minimum torque
  • 4WD
 unverified source
Wheels Rear wheel bearing lock nut 294 217 Maximum torque
  • 4WD
 unverified source
Shock absorbers/shocks Front shock absorber top nut 16 12 Minimum torque
  • 2WD
  • 4WD
 unverified source
Shock absorbers/shocks Front shock absorber top nut 22 16 Maximum torque
  • 2WD
  • 4WD
 unverified source
Shock absorbers/shocks Front shock absorber lower bolt 118 87 Minimum torque
  • 2WD
  • 4WD
 unverified source
Shock absorbers/shocks Front shock absorber lower bolt 147 108 Maximum torque
  • 2WD
  • 4WD
 unverified source
Shock absorbers/shocks Rear shock absorber nuts 40 30 Minimum torque
  • 2WD
  • 4WD
 unverified source
Shock absorbers/shocks Rear shock absorber nuts 50 37 Maximum torque
  • 2WD
  • 4WD
 unverified source
Stabilizer bar Front stabilizer bar clamp bolt 16 12 Minimum torque
  • 2WD
 unverified source
Stabilizer bar Front stabilizer bar clamp bolt 22 16 Maximum torque
  • 2WD
 unverified source
Stabilizer bar Front stabilizer bar clamp bolt 51 38 Minimum torque
  • 4WD
 unverified source
Stabilizer bar Front stabilizer bar clamp bolt 61 45 Maximum torque
  • 4WD
 unverified source
Radius arm Front spring torque arm nuts 50 37 Minimum torque
  • 2WD
 unverified source
Radius arm Front spring torque arm nuts 68 50 Maximum torque
  • 2WD
 unverified source
Radius arm Front spring torque arm nuts 89 66 Minimum torque
  • 4WD
 unverified source
Radius arm Front spring torque arm nuts 118 87 Maximum torque
  • 4WD
 unverified source
Ball joint Knuckle spindle to Upper ball joint 78 58 Minimum torque
  • 2WD
  • 4WD
 unverified source
Ball joint Knuckle spindle to Upper ball joint 147 108 Maximum torque
  • 2WD
  • 4WD
 unverified source
Ball joint Knuckle spindle to Lower ball joint 118 87 Minimum torque
  • 2WD
  • 4WD
 unverified source
Ball joint Knuckle spindle to Lower ball joint 191 141 Maximum torque
  • 2WD
  • 4WD
 unverified source

general torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to

Did you find the answer to your specific question?
👍 0 👎 0

Related Vans:
