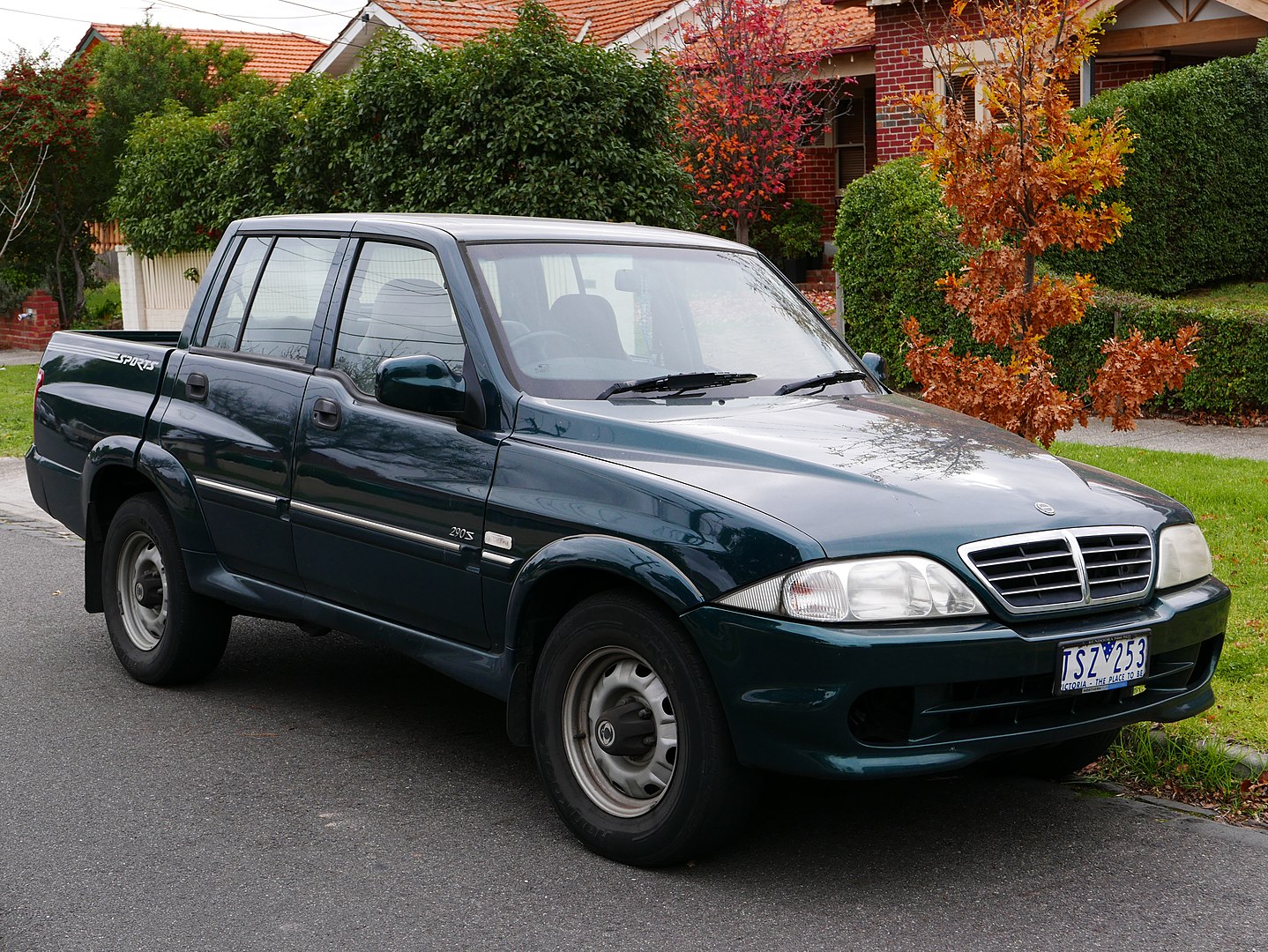

Ssangyong Musso Sports P100 (2002-2005) Torque Spec Settings

By OSX- Own work, Public Domain

Below you'll find the tightening torques for the Ssangyong Musso Sports P100 in both Nm and ft/lbs. The first table contains the most-used torque settings. The tables after it contain all torque spec values I could find.

Most-used torque specs for Ssangyong Musso Sports P100

Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Oil pan Oil drain plug 25 18
  • M162 Engine
 unverified source
Wheels Wheel bolt 80 59 Steel, Minimum torque
unverified source
Wheels Wheel bolt 120 89 Steel, Maximum torque
unverified source
Wheels Wheel bolt 110 81 Aluminium, Minimum torque
unverified source
Wheels Wheel bolt 130 96 Aluminium, Maximum torque
unverified source

Are these torque settings right for you?

  • Production years: 2002 - 2005
  • Generation: P100
  • Type of van: pickup
  • Model variant: Base
  • Also known as: SsangYong Sports SsangYong Musso SUT Daewoo Musso Sports Mercedes-Benz Musso Sports

All Torque Settings in Tables

engine torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Oil pan Oil drain plug 25 18
  • M162 Engine
 unverified source
Oil pan Oil pan bolt 9 7 Minimum torque
  • M162 Engine
 unverified source
Oil pan Oil pan bolt 11 8 Maximum torque
  • M162 Engine
 unverified source
Oil filter Oil filter bolt 23 17 Minimum torque
  • M162 Engine
 unverified source
Oil filter Oil filter bolt 28 21 Maximum torque
  • M162 Engine
 unverified source
Oil filter Oil filter cover 25 18
  • M162 Engine
 unverified source
Oil pressure switch Oil pressure relief valve screw plug 50 37
  • M162 Engine
 unverified source
Cylinder head Cylinder head bolt 55 41 Step 1
  • M162 Engine
 unverified source
Spark plugs Spark plug 25 18 Minimum torque
  • M162 Engine
 unverified source
Spark plugs Spark plug 30 22 Maximum torque
  • M162 Engine
 unverified source
Piston rods Connecting rod bolts 40 30 Step 1
  • M162 Engine
 unverified source
Intake manifold Upper intake manifold bolt 23 17 Minimum torque
  • M162 Engine
 unverified source
Intake manifold Upper intake manifold bolt 28 21 Maximum torque
  • M162 Engine
 unverified source
Intake manifold Lower intake manifold bolt 23 17 Minimum torque
  • M162 Engine
 unverified source
Intake manifold Lower intake manifold bolt 28 21 Maximum torque
  • M162 Engine
 unverified source
Engine block Cylinder block drain plug 30 22
  • M162 Engine
 unverified source
Engine block Crankshaft bearing cap bolts 55 41
  • M162 Engine
 unverified source
Engine mounts Engine mounting nut 50 37 Minimum torque
  • M162 Engine
 unverified source
Engine mounts Engine mounting nut 60 44 Maximum torque
  • M162 Engine
 unverified source
Engine mounts Engine mounting bracket bolts 50 37 Minimum torque
  • M162 Engine
 unverified source
Engine mounts Engine mounting bracket bolts 75 55 Maximum torque
  • M162 Engine
 unverified source
Knock sensor Knock sensor mounting bolt 23 17 Minimum torque
  • M162 Engine
 unverified source
Knock sensor Knock sensor mounting bolt 28 21 Maximum torque
  • M162 Engine
 unverified source
Alternator Alternator carrier bolt 10 7 Minimum torque
  • M162 Engine
 unverified source
Alternator Alternator carrier bolt 15 11 Maximum torque
  • M162 Engine
 unverified source
Alternator Alternator combination bolt 42 31 Minimum torque
  • M162 Engine
 unverified source
Alternator Alternator combination bolt 50 37 Maximum torque
  • M162 Engine
 unverified source
Camshaft Camshaft bearing cap bolt 23 17 Minimum torque
  • M162 Engine
 unverified source
Camshaft Camshaft bearing cap bolt 28 21 Maximum torque
  • M162 Engine
 unverified source
Camshaft Exhaust camshaft sprocket bolt 20 15
  • M162 Engine
 unverified source
Water pump Coolant pump mounting bolts 21 15
  • M162 Engine
 unverified source
Water pump Water pump pulley 23 17 Minimum torque
  • M162 Engine
 unverified source
Water pump Water pump pulley 28 21 Maximum torque
  • M162 Engine
 unverified source
Belt tensioner Belt pulley bolt 41 30 Minimum torque
  • M162 Engine
 unverified source
Belt tensioner Belt pulley bolt 50 37 Maximum torque
  • M162 Engine
 unverified source

drivetrain torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Transmission mount Transmission mounting bolts 65 48
  • M162 Engine
 unverified source

steering torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Power steering pump Steering pump bolt 23 17 Minimum torque
  • M162 Engine
 unverified source
Power steering pump Steering pump bolt 28 21 Maximum torque
  • M162 Engine
 unverified source

exhaust torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Exhaust manifold Exhaust manifold nut to Stud bolt 26 19 Minimum torque
  • M162 Engine
 unverified source
Exhaust manifold Exhaust manifold nut to Stud bolt 34 25 Maximum torque
  • M162 Engine
 unverified source
Exhaust manifold Flange bolt to Exhaust manifold 30 22
  • M162 Engine
 unverified source

brakes torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to

suspension torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to

general torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
