Renault Clio 2 (1998-2005) Torque Spec Settings

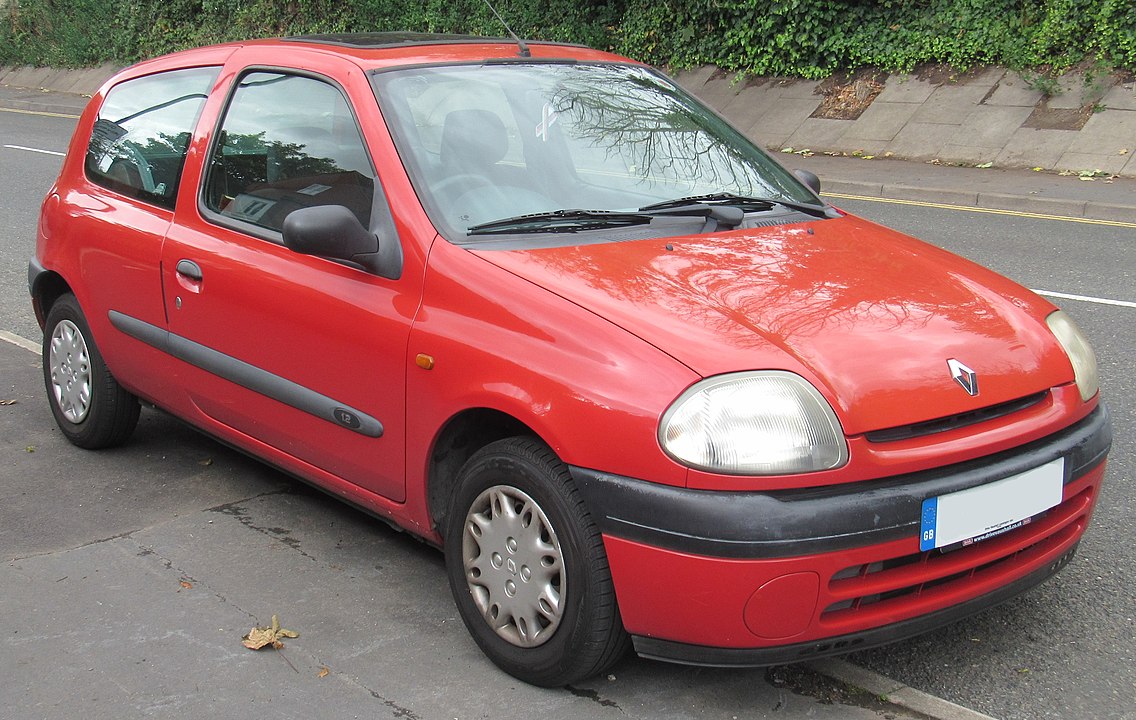

Makizox, CC BY-SA 4.0, via Wikimedia Commons
Below you'll find the tightening torques for the Renault Clio 2 in both Nm and ft/lbs. The first table contains the most-used torque settings. The tables after it contain all torque spec values I could find.
Most-used torque settings for Renault Clio 2
| Part | Description | Torque (Nm) | Torque (ft/lbs) | Remarks | Applies to | |
|---|---|---|---|---|---|---|
| Oil pan | Drainage plug | 20 | 15 |
|
|
|
| Oil filter | Oil filter | 20 | 15 |
|
|
|
| Spark plugs | Spark plugs | 28 | 21 |
|
|
|
| Steering wheel | Steering wheel | 44 | 32 |
|
|
To make sure these are the correct tightening torque values, you can use the data below to verify this is the right model.
Are these torque settings right for you?
- Production years: 1998 - 2005
- Generation: 2
- Type of van: car
- Model variant: Base
- Also known as:
All Torque Settings in Tables
engine torque settings
Save to email ✉️| Part | Description | Torque (Nm) | Torque (ft/lbs) | Remarks | Applies to | |
|---|---|---|---|---|---|---|
| Oil pan | Drainage plug | 20 | 15 |
|
|
|
| Oil pan | Sump plug | 14 | 10 |
|
|
|
| Oil pan | Sump bolts | 8 | 6 | Step 1 |
|
|
| Oil pan | Sump bolts | 12 | 9 | Step 2, Minimum torque |
|
|
| Oil pan | Sump bolts | 15 | 11 | Step 2, Maximum torque |
|
|
| Oil filter | Oil filter | 20 | 15 |
|
|
|
| Oil filter | Oil separator bolts | 13 | 10 |
|
|
|
| Oil pump | Oil pump to Cylinder block | 25 | 18 |
|
|
|
| Cylinder head | Cylinder head bolts | 20 | 15 | Step 1 |
|
|
| Cylinder head | Cylinder head cover bolts | 12 | 9 |
|
|
|
| Spark plugs | Spark plugs | 28 | 21 |
|
|
|
| Intake manifold | Inlet manifold upper | 11 | 8 |
|
|
|
| Intake manifold | Inlet manifold lower | 21 | 15 |
|
|
|
| Throttle body | Throttle housing | 13 | 10 |
|
|
|
| Engine mounts | Engine mount fastening bolts | 40 | 30 |
|
|
|
| Engine mounts | Engine mount upper fastener | 76 | 56 |
|
|
|
| Engine mounts | Engine mount central nut | 44 | 32 |
|
|
|
| Engine mounts | Engine mount bolts | 62 | 46 |
|
|
|
| Engine mounts | Engine mount bolts to Engine | 62 | 46 |
|
|
|
| Engine mounts | Front subframe mounting bolts | 62 | 46 |
|
|
|
| Engine mounts | Rear subframe mounting bolts | 105 | 77 |
|
|
|
| Sensor | Knock sensor | 20 | 15 |
|
|
|
| Sensor | Lambda sensor | 45 | 33 |
|
|
|
| Sensor | Air conditioning circuit pressure sensor | 11 | 8 |
|
|
|
| Alternator | Alternator upper mounting bolts | 32 | 24 |
|
|
|
| Alternator | Alternator lower mounting bolts | 38 | 28 |
|
|
|
| Alternator | Alternator front support mounting bolts | 38 | 28 |
|
|
|
| Alternator | Alternator back support mounting bolts | 32 | 24 |
|
|
|
| Starter | Starter mounting bolt | 30 | 22 |
|
|
|
| Battery | Ignition coil | 9 | 7 | Step 1 |
|
|
| Camshaft | Camshaft cover | 12 | 9 |
|
|
|
| Camshaft | Camshaft carrier/cap | 12 | 9 |
|
|
|
| Camshaft | Camshaft phase shifter bolt | 100 | 74 |
|
|
|
| Camshaft | Exhaust camshaft pulley | 125 | 92 |
|
|
|
| Camshaft | Inlet pulley (dephaser) | 100 | 74 |
|
|
|
| Crankshaft | Crankshaft pulley fastener | 60 | 44 |
|
|
|
| Crankshaft | Main bearings | 20 | 15 | Step 1 |
|
|
| Water pump | Water pump fasteners | 12 | 9 |
|
|
|
| Water pump | Coolant pump support mounting bolt | 62 | 46 |
|
|
|
| Air conditioning | Air conditioning pressure relief valve to Evaporator bolt | 6 | 4 |
|
|
|
| Air conditioning | Air conditioning connecting pipes to Pressure relief valve nut | 8 | 6 |
|
|
|
| Air conditioning | Air conditioning pressure relief valve connecting pipe to Dehydration canister retaining bolt | 8 | 6 |
|
|
|
| Air conditioning | Air conditioning condenser connecting pipe to Dehydration canister retaining bolt | 12 | 9 |
|
|
|
| Air conditioning | Air conditioning compressor connecting pipe to Condenser retaining bolt | 8 | 6 |
|
|
|
| Air conditioning | Air conditioning connecting pipes to Compressor retaining bolt | 8 | 6 |
|
|
|
| Air conditioning | Air conditioning compressor retaining bolt | 21 | 15 |
|
|
|
| Air conditioning | Air conditioning compressor mounting bolt | 32 | 24 |
|
|
|
| Belt tensioner/Timing chains | Timing belt tensioner pulley fastener | 27 | 20 |
|
|
|
| Belt tensioner/Timing chains | Serpentine belt tensioner pulley fastener | 35 | 26 |
|
|
|
| Belt tensioner/Timing chains | Cambelt tensioner | 28 | 21 |
|
|
|
| Belt tensioner/Timing chains | Idlers | 55 | 41 |
|
|
|
| Belt tensioner/Timing chains | Auxiliary/Accessory belt tensioner mounting bolt | 62 | 46 |
|
|
|
| Belt tensioner/Timing chains | Auxiliary/Accessory belt tensioner spring mounting bolt | 21 | 15 |
|
|
|
| Belt tensioner/Timing chains | Auxiliary/Accessory pulley bolt | 32 | 24 |
|
|
|
| Fuel system | Injector support bolts | 21 | 15 | Step 1 |
|
|
drivetrain torque settings
Save to email ✉️| Part | Description | Torque (Nm) | Torque (ft/lbs) | Remarks | Applies to | |
|---|---|---|---|---|---|---|
| Wheel hub assembly | Front drive shaft to Wheel hub bolt | 280 | 207 |
|
|
|
| Wheel hub assembly | Rear hub | 175 | 129 |
|
|
|
| Clutch assembly | Clutch cover to Flywheel | 20 | 15 |
|
|
|
| Flywheel/Flex plate | Flywheel bolts | 55 | 41 |
|
|
|
| Transmission fluid pan | Gearbox drain plug | 22 | 16 |
|
|
|
| Transmission mount/case | Gearbox driveshaft gaiter bolt | 25 | 18 |
|
|
|
| Transmission mount/case | Upper gearbox mount central nut | 62 | 46 |
|
|
|
| Transmission mount/case | Upper gearbox mount to Gearbox | 62 | 46 |
|
|
|
| Transmission mount/case | Upper gearbox mount/Battery tray to Body | 21 | 15 |
|
|
|
| Transmission mount/case | Rubber lower mount nut/bolt | 44 | 32 |
|
|
|
| Transmission mount/case | Lower (dogbone) mount bolts | 62 | 46 |
|
|
|
| Transmission mount/case | Lower (dogbone) mount surround and starter bolt | 30 | 22 |
|
|
|
| Drive/Axle shaft | Stub axle mounting bolts | 29 | 21 | M8x125 |
|
|
| Drive/Axle shaft | Stub axle mounting bolts | 57 | 42 | M10x150 |
|
|
steering torque settings
Save to email ✉️| Part | Description | Torque (Nm) | Torque (ft/lbs) | Remarks | Applies to | |
|---|---|---|---|---|---|---|
| Tie rod end | Tie rod end locknut | 55 | 41 |
|
|
|
| Steering knuckle | Steering knuckle bolts | 140 | 103 |
|
|
|
| Steering rack | Steering rack mounts | 50 | 37 |
|
|
|
| Steering shaft | Steering shaft yoke mounting bolt | 30 | 22 |
|
|
|
| Steering wheel | Steering wheel | 44 | 32 |
|
|
|
| Power steering | Power steering pump mounting bolt | 32 | 24 |
|
|
|
| Power steering | Power steering pulley bolt | 8 | 6 |
|
|
exhaust torque settings
Save to email ✉️| Part | Description | Torque (Nm) | Torque (ft/lbs) | Remarks | Applies to | |
|---|---|---|---|---|---|---|
| Exhaust manifold | Exhaust downpipe to Manifold | 17 | 13 |
|
|
|
| Exhaust manifold | Exhaust manifold to Head | 18 | 13 |
|
|
brakes torque settings
Save to email ✉️| Part | Description | Torque (Nm) | Torque (ft/lbs) | Remarks | Applies to | |
|---|---|---|---|---|---|---|
| Disc brake | Front brake caliper | 35 | 26 |
|
|
|
| Disc brake | Rear brake caliper fasteners | 30 | 22 |
|
|
|
| Disc brake | Front brake caliper bracket | 100 | 74 |
|
|
|
| Disc brake | Front brake disc fastening | 15 | 11 |
|
|
|
| Disc brake | Bleed screws | 6 | 4 |
|
|
|
| Disc brake | Disc to Hub | 20 | 15 |
|
|
|
| Disc brake | Caliper to Hub/Yoke bolt | 60 | 44 |
|
|
|
| ABS | ABS sensor | 8 | 6 |
|
|
|
| ABS | ABS pipe unions | 17 | 13 | M10 |
|
|
| ABS | ABS pipe unions | 17 | 13 | M12 |
|
|
suspension torque settings
Save to email ✉️| Part | Description | Torque (Nm) | Torque (ft/lbs) | Remarks | Applies to | |
|---|---|---|---|---|---|---|
| Wheels | Front wheel bolts | 90 | 66 |
|
|
|
| Wheels | Rear wheel bolts | 90 | 66 |
|
|
|
| Shock absorbers/shocks | Front shock strut piston rod nut | 21 | 15 |
|
|
|
| Shock absorbers/shocks | Front shock strut top mount | 62 | 46 |
|
|
|
| Shock absorbers/shocks | Rear top shock absorber fastening | 20 | 15 |
|
|
|
| Shock absorbers/shocks | Front shock absorber strut mount upper fastener | 60 | 44 |
|
|
|
| Shock absorbers/shocks | Front shock strut to Steering knuckle lower fasteners | 110 | 81 |
|
|
|
| Shock absorbers/shocks | Rear shock absorber lower fastener | 105 | 77 |
|
|
|
| Sway bar links/Stabilizer links | Front stabilizer link fastener | 14 | 10 |
|
|
|
| Control arm | Control arm to Subframe front fastener | 90 | 66 |
|
|
|
| Control arm | Control arm rear fastener | 90 | 66 |
|
|
|
| Ball joint | Front ball joint to Steering knuckle fastener | 55 | 41 |
|
|
|
| Ball joint | Front ball joint to Control arm fasteners | 75 | 55 |
|
|
general torque settings
Save to email ✉️| Part | Description | Torque (Nm) | Torque (ft/lbs) | Remarks | Applies to |
|---|
