Renault Clio 5 (2019-on) Torque Spec Settings

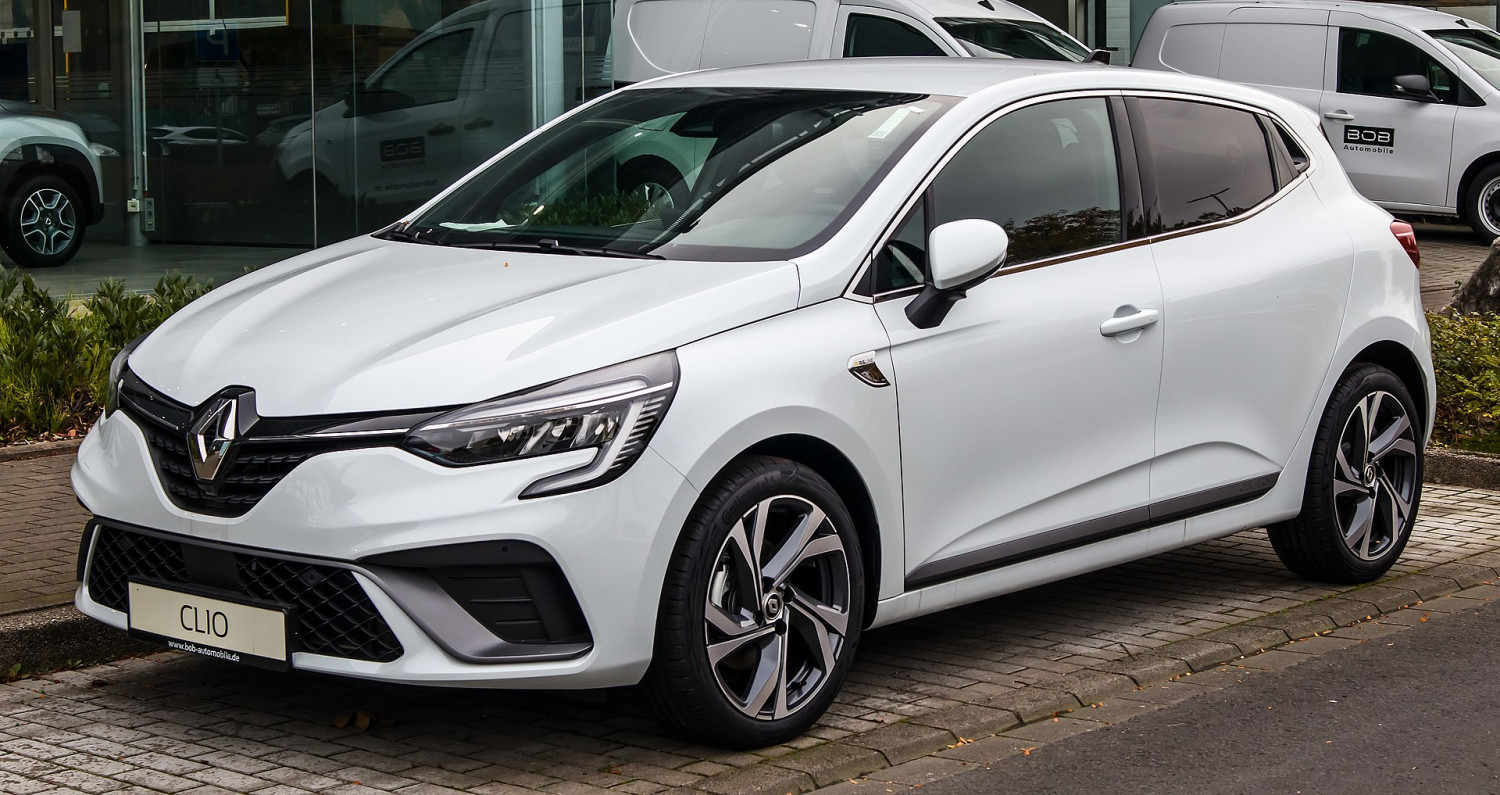

By M 93, CC BY-SA 3.0 de
Below you'll find the tightening torques for the Renault Clio 5 in both Nm and ft/lbs. The first table contains the most-used torque settings. The tables after it contain all torque spec values I could find.
Most-used torque settings for Renault Clio 5
| Part | Description | Torque (Nm) | Torque (ft/lbs) | Remarks | Applies to | |
|---|---|---|---|---|---|---|
| Oil pan | Drainage plug | 30 | 22 |
|
|
|
| Oil filter | Oil filter | 24 | 18 |
|
|
|
| Wheels | Wheel bolts | 90 | 66 |
|
|
|
| Wheels | Wheel bolts | 90 | 66 |
|
|
To make sure these are the correct tightening torque values, you can use the data below to verify this is the right model.
Are these torque settings right for you?
- Production years: 2019 - present
- Generation: 5
- Type of van: car
- Model variant: Base
- Also known as:
All Torque Settings in Tables
engine torque settings
Save to email ✉️| Part | Description | Torque (Nm) | Torque (ft/lbs) | Remarks | Applies to | |
|---|---|---|---|---|---|---|
| Oil pan | Drainage plug | 30 | 22 |
|
|
|
| Oil filter | Oil filter | 24 | 18 |
|
|
drivetrain torque settings
Save to email ✉️| Part | Description | Torque (Nm) | Torque (ft/lbs) | Remarks | Applies to |
|---|
steering torque settings
Save to email ✉️| Part | Description | Torque (Nm) | Torque (ft/lbs) | Remarks | Applies to |
|---|
exhaust torque settings
Save to email ✉️| Part | Description | Torque (Nm) | Torque (ft/lbs) | Remarks | Applies to |
|---|
brakes torque settings
Save to email ✉️| Part | Description | Torque (Nm) | Torque (ft/lbs) | Remarks | Applies to | |
|---|---|---|---|---|---|---|
| Disc brake | Front brake disc fastener | 14 | 10 |
|
|
|
| Disc brake | Front brake caliper fasteners | 32 | 24 |
|
|
|
| Disc brake | Front brake caliper bracket | 100 | 74 |
|
|
suspension torque settings
Save to email ✉️| Part | Description | Torque (Nm) | Torque (ft/lbs) | Remarks | Applies to | |
|---|---|---|---|---|---|---|
| Wheels | Wheel bolts | 90 | 66 |
|
|
general torque settings
Save to email ✉️| Part | Description | Torque (Nm) | Torque (ft/lbs) | Remarks | Applies to |
|---|
