Skoda Octavia 2 (1Z) (2004-2013) Torque Spec Settings

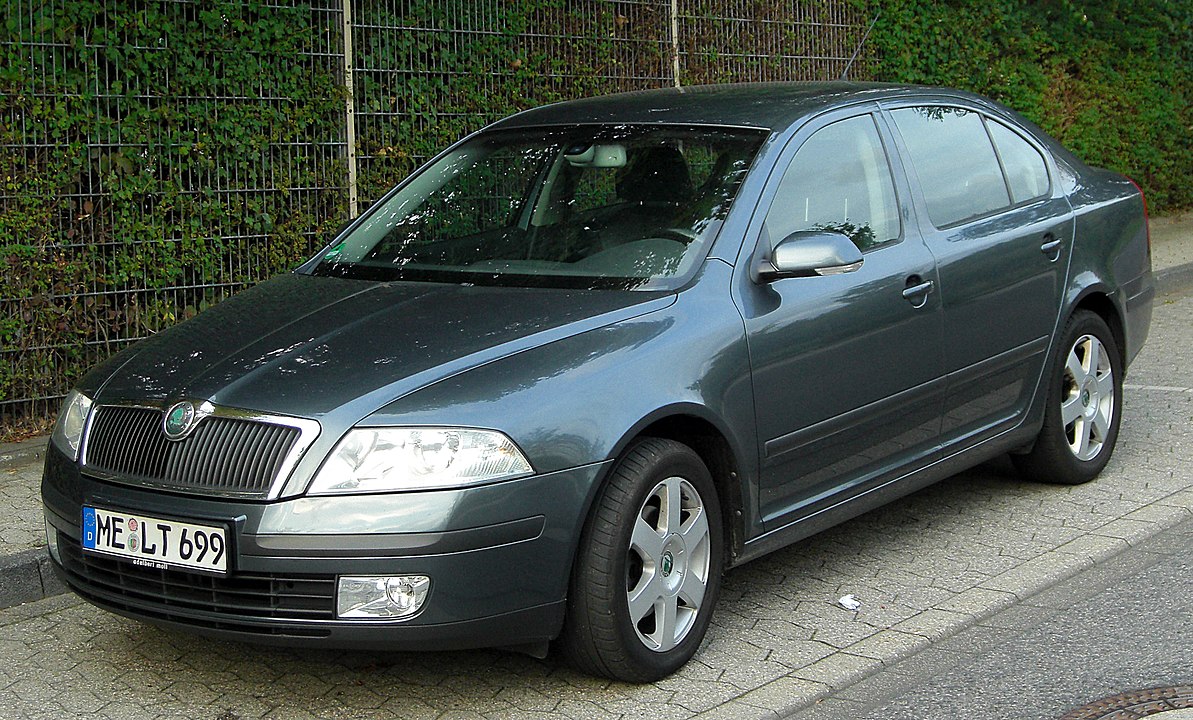

M 93, Attribution, via Wikimedia Commons

Below you'll find the tightening torques for the Skoda Octavia 2 (1Z) in both Nm and ft/lbs. The first table contains the most-used torque settings. The tables after it contain all torque spec values I could find.

Most-used torque settings for Skoda Octavia 2 (1Z)

Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Oil pan Oil pan drain plug 32 24 Use HEX No.H7. Use a torque wrench.
unverified source
Wheels Wheel bolts 120 89 Use wheel impact socket #17. Use a torque wrench.
unverified source
Wheels Wheel bolts 120 89 Use wheel impact socket #17. Use a torque wrench.
unverified source

To make sure these are the correct tightening torque values, you can use the data below to verify this is the right model.

Are these torque settings right for you?

  • Production years: 2004 - 2013
  • Generation: 2
  • Type of van: car
  • Model variant: Base

All Torque Settings in Tables

engine torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Oil pan Oil pan drain plug 32 24 Use HEX No.H7. Use a torque wrench.
unverified source
Oil pan Gearbox housing filler plug 32 24 Use HEX No.H7. Use a torque wrench.
unverified source
Intake manifold Viscous fan clutch fastener 24 18 Use a combination spanner #46. Use HEX No.H8. Use a torque wrench.
unverified source
Sensors MAF sensor fasteners 4 3 Use a drive socket #10. Use a torque wrench.
unverified source
Air conditioning Thermostat housing fasteners 6 4 Use a drive socket #10. Use a torque wrench.
unverified source
Alternator Alternator power cable fastener 5 4 Use a drive socket #13. Use a torque wrench.
unverified source
Alternator Alternator fasteners 8 6 Use HEX No.H8. Use a torque wrench.
unverified source
Piston rods Shock strut piston rod nut 60 44 Use a drive socket #20.6. Use HEX No.H6. Use a torque wrench.
unverified source

drivetrain torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Drive/Axle nut Drive shaft nut 225 166 Use a drive socket #30. Use a torque wrench.
unverified source

steering torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Steering knuckle Steering knuckle to tie rod end fastener 45 33 Use a drive socket #19. Use a torque wrench.
unverified source
Tie rod end Tie rod end locknut 50 37 Use a combination spanner #21. Use a torque wrench.
unverified source

exhaust torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to

brakes torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Brake caliper Brake caliper 28 21 Use HEX No.H7. Use a torque wrench.
unverified source
Disc brake Brake disc fastening 4 3 Use torx T30.
unverified source
Disc brake Brake drum fasteners 4 3 Use torx T30. Use a torque wrench.
unverified source

suspension torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Wheels Wheel bolts 120 89 Use wheel impact socket #17. Use a torque wrench.
unverified source
Control arm Front fastener of control arm to subframe 70 52 Add 90°. Use a drive socket #18. Use a torque wrench.
unverified source
Control arm Rear fastener of control arm to subframe 70 52 Add 90°. Use a drive socket #18. Use a torque wrench.
unverified source
Ball joint Ball joint fastener 20 15 Add 90°. Use a combination spanner #19. Use a torque wrench.
unverified source
Ball joint Ball joint fastener to control arm 20 15 Add 90°. Use a drive socket #13. Use a torque wrench.
unverified source
Struts Lower fastener of suspension strut 60 44 Add 90°. Use a combination spanner #18. Use a drive socket #18. Use a torque wrench.
unverified source
Shock absorbers/shocks Upper fastener of shock absorber strut mount 60 44 Use a drive socket #20.6. Use a torque wrench.
unverified source
Stabilizer bar Rod fastening to stabilizer 15 11 Add 90°. Use a drive socket #16. Use a torque wrench.
unverified source

general torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
