Mitsubishi Raider (2006-2009) Torque Spec Settings

Researched by Wan Wei Tay
Updated: February 11, 2024

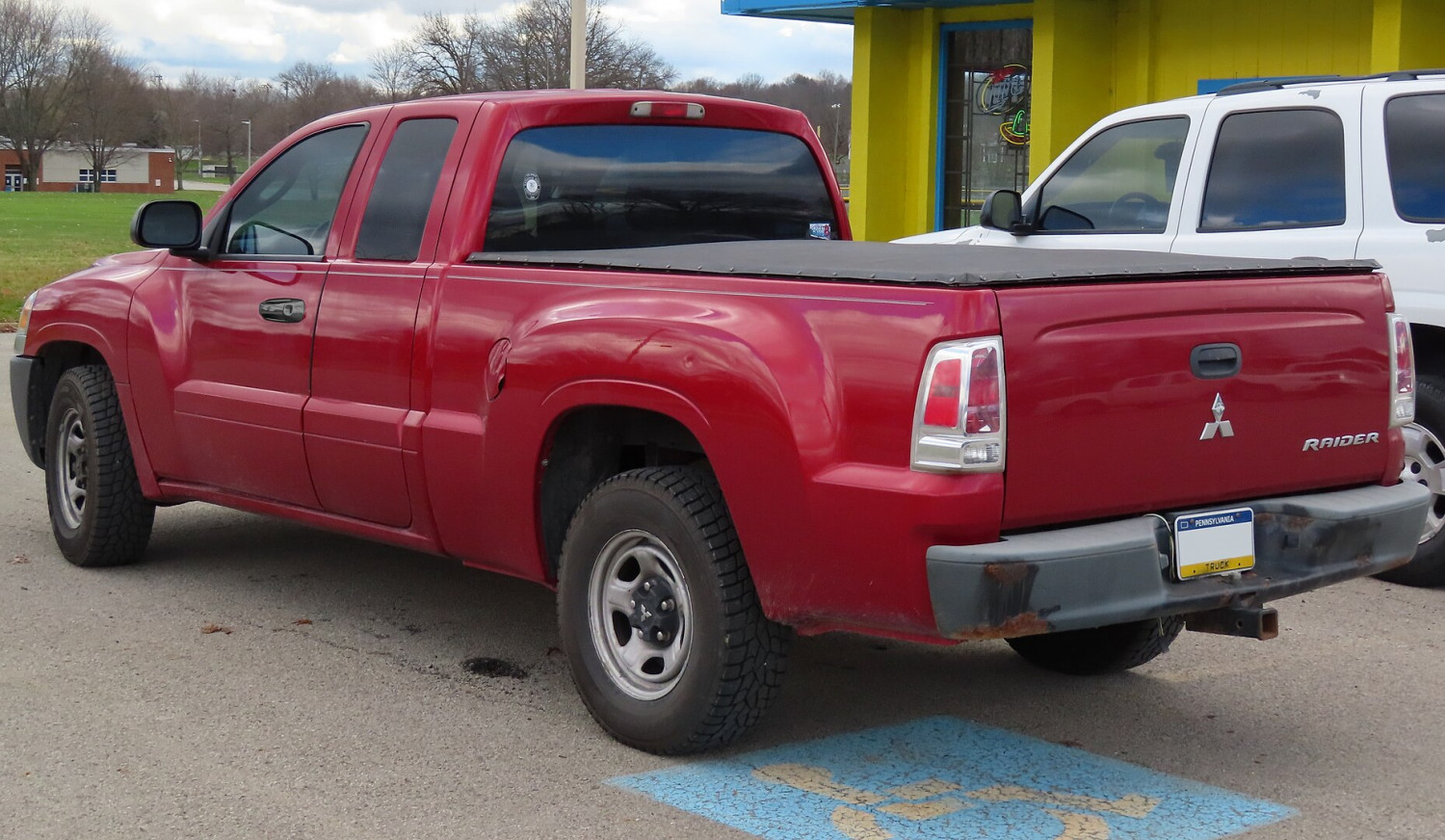

By MercurySable99 - Own work, CC BY-SA 4.0

Below you'll find the tightening torques for the Mitsubishi Raider in both Nm and ft/lbs. The first table contains the most-used torque settings. The tables after it contain all torque spec values I could find.

Most-used torque specs for Mitsubishi Raider

Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Oil pan Oil pan drain plug 34 25
  • 3.7L V6 Engine
verified source
Oil pan Oil pan drain plug 34 25
  • 4.7L V8 Engine
verified source
Transmission fluid pan Drain plug 50 37
  • Getrag 238 Manual Transmission
verified source

Are these torque settings right for you?

  • Production years: 2006 - 2009
  • Type of van: pickup
  • Model variant: Base

All Torque Settings in Tables

engine torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Oil pan Oil pan drain plug 34 25
  • 3.7L V6 Engine
verified source
Oil pan Oil pan drain plug 34 25
  • 4.7L V8 Engine
verified source
Oil pan Oil pan bolts 16 12
  • 3.7L V6 Engine
verified source
Oil pan Oil pan bolts 15 11
  • 4.7L V8 Engine
verified source
Oil dipstick Oil dipstick tube to Engine block bolt 15 11
  • 3.7L V6 Engine
verified source
Oil dipstick Oil dipstick tube to Engine block bolt 15 11
  • 4.7L V8 Engine
verified source
Oil feeder Oil fill tube bolts 12 9
  • 3.7L V6 Engine
verified source
Oil feeder Oil fill tube bolts 12 9
  • 4.7L V8 Engine
verified source
Oil pump Oil pump bolts 28 21
  • 3.7L V6 Engine
verified source
Oil pump Oil pump bolts 28 21
  • 4.7L V8 Engine
verified source
Oil pump Oil pump cover bolts 12 9
  • 3.7L V6 Engine
verified source
Oil pump Oil pump cover bolts 12 9
  • 4.7L V8 Engine
verified source
Oil pump Oil pickup tube bolt and nut 28 21
  • 3.7L V6 Engine
verified source
Oil pump Oil pickup tube bolt and nut 28 21
  • 4.7L V8 Engine
verified source
Oil pump Oil pump screw 12 9 Minimum torque
  • NV243 Transfer Case
verified source
Oil pump Oil pump screw 16 12 Maximum torque
  • NV243 Transfer Case
verified source
Oil pump Oil pump screw 14 10 Minimum torque
  • NV244 GENII Transfer Case
verified source
Oil pump Oil pump screw 19 14 Maximum torque
  • NV244 GENII Transfer Case
verified source
Piston rods Connecting rod cap bolts 27 20 Step 1
  • 3.7L V6 Engine
verified source
Piston rods Connecting rod cap bolts 27 20 Step 1
  • 4.7L V8 Engine
verified source
Cylinder head Cylinder head bolts 27 20 Step 1, Bolts 1-8
  • 3.7L V6 Engine
verified source
Cylinder head Cylinder head bolts 14 10 Step 2, Bolts 9-12
  • 3.7L V6 Engine
verified source
Cylinder head Cylinder head bolts 26 19 Step 4, Bolts 9-12
  • 3.7L V6 Engine
verified source
Cylinder head Cylinder head bolts 27 20 Step 1, Bolts 1-10
  • 4.7L V8 Engine
verified source
Cylinder head Cylinder head bolts 14 10 Step 2, Bolts 11-14
  • 4.7L V8 Engine
verified source
Cylinder head Cylinder head bolts 26 19 Step 4, Bolts 11-14
  • 4.7L V8 Engine
verified source
Cylinder head Cylinder head cover bolts and studs 12 9
  • 3.7L V6 Engine
verified source
Intake manifold Intake manifold bolts 12 9
  • 3.7L V6 Engine
verified source
Intake manifold Intake manifold bolts 12 9
  • 4.7L V8 Engine
verified source
Engine mounts Engine mount bracket to Block bolts 61 45
  • 3.7L V6 Engine
verified source
Engine mounts Engine mount bracket to Block bolts 61 45
  • 4.7L V8 Engine
verified source
Alternator Generator mounting bolts 28 21 M8 bolts
  • 3.7L V6 Engine
verified source
Alternator Generator mounting bolts 54 40 M10 bolts
  • 3.7L V6 Engine
verified source
Alternator Generator mounting bolts 28 21 M8 bolts
  • 4.7L V8 Engine
verified source
Alternator Generator mounting bolts 54 40 M10 bolts
  • 4.7L V8 Engine
verified source
Camshaft Camshaft non-oiled sprocket bolt 122 90
  • 3.7L V6 Engine
verified source
Camshaft Camshaft non-oiled sprocket bolt 122 90
  • 4.7L V8 Engine
verified source
Camshaft Camshaft bearing cap bolts 11 8
  • 3.7L V6 Engine
verified source
Camshaft Camshaft bearing cap bolts 11 8
  • 4.7L V8 Engine
verified source
Crankshaft Crankshaft damper bolt 175 129
  • 3.7L V6 Engine
verified source
Crankshaft Crankshaft damper bolt 175 129
  • 4.7L V8 Engine
verified source
Water pump Water pump bolts 58 43
  • 3.7L V6 Engine
verified source
Radiator Thermostat housing bolts 12 9
  • 3.7L V6 Engine
verified source
Radiator Thermostat housing bolts 13 10
  • 4.7L V8 Engine
verified source
Belt tensioner/Timing chains Timing chain guide bolts 28 21
  • 3.7L V6 Engine
verified source
Belt tensioner/Timing chains Timing chain guide bolts 28 21
  • 4.7L V8 Engine
verified source
Belt tensioner/Timing chains Timing chain tensioner arm 28 21
  • 3.7L V6 Engine
verified source
Belt tensioner/Timing chains Timing chain tensioner arm 28 21
  • 4.7L V8 Engine
verified source
Belt tensioner/Timing chains Timing chain primary tensioner bolts 28 21
  • 3.7L V6 Engine
verified source
Belt tensioner/Timing chains Timing chain primary tensioner bolts 28 21
  • 4.7L V8 Engine
verified source
Belt tensioner/Timing chains Timing drive idler sprocket bolt 34 25
  • 3.7L V6 Engine
verified source
Belt tensioner/Timing chains Timing drive idler sprocket bolt 34 25
  • 4.7L V8 Engine
verified source
Belt tensioner/Timing chains Timing chain cover bolts 58 43
  • 3.7L V6 Engine
verified source
Belt tensioner/Timing chains Timing chain cover bolts 58 43
  • 4.7L V8 Engine
verified source

drivetrain torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Differential Differential case bolt 17 13 Minimum torque
  • NV244 Transfer Case
verified source
Differential Differential case bolt 27 20 Maximum torque
  • NV244 Transfer Case
verified source
Clutch assembly Counterbalance shaft retaining bolt 28 21
  • 3.7L V6 Engine
verified source
Clutch assembly Mainshaft, countershaft bearing retainer bolts 10 7
  • Getrag 238 Manual Transmission
verified source
Clutch assembly Countershaft bolt 90 66
  • Getrag 238 Manual Transmission
verified source
Flywheel/Flex plate Flexplate bolts 95 70
  • 3.7L V6 Engine
verified source
Flywheel/Flex plate Flexplate bolts 60 44
  • 4.7L V8 Engine
verified source
Flywheel/Flex plate Converter to Driveplate bolt 88 65
  • 42RLE Automatic Transmission
verified source
Flywheel/Flex plate Torque converter to Driveplate bolt 31 23
  • 545RFE Automatic Transmission
verified source
Flywheel/Flex plate Driveplate to Crankshaft bolt 75 55
  • 545RFE Automatic Transmission
verified source
Transmission fluid pan Drain plug 50 37
  • Getrag 238 Manual Transmission
verified source
Transmission fluid pan Fill plug 50 37
  • Getrag 238 Manual Transmission
verified source
Transmission fluid pan Oil pan to Case bolt 20 15
  • 42RLE Automatic Transmission
verified source
Transmission fluid pan Oil pan bolt 12 9
  • 545RFE Automatic Transmission
verified source
Transmission fluid pan Cooler line fitting 48 35
  • 42RLE Automatic Transmission
verified source
Transmission fluid pan Cooler line at trans fitting 18 13
  • 545RFE Automatic Transmission
verified source
Transmission fluid pan Oil filter, cooler return 10 7
  • 545RFE Automatic Transmission
verified source
Transmission fluid pan Primary fluid filter screw 5 4
  • 545RFE Automatic Transmission
verified source
Transmission mount/case Engine to Transmission bellhousing bolts 41 30
  • 3.7L V6 Engine
verified source
Transmission mount/case Rear mount to Transmission bolts 46 34
  • 3.7L V6 Engine
verified source
Transmission mount/case Rear mount to Transmission bolts 46 34
  • 4.7L V8 Engine
verified source
Transmission mount/case Rear support to Transmission bolt 47 35
  • 42RLE Automatic Transmission
verified source
Transmission mount/case Support bracket to Transmission bolts 54 40
  • Getrag 238 Manual Transmission
verified source
Transmission mount/case Housing bolts 22 16
  • Getrag 238 Manual Transmission
verified source
Transmission mount/case Clevis bracket to Transmission bolt 68 50
  • 42RLE Automatic Transmission
verified source
Transmission mount/case Clevis bracket/Rear support bolts 47 35
  • 545RFE Automatic Transmission
verified source
Transmission mount/case Fluid filter to Valve body bolt 5 4
  • 42RLE Automatic Transmission
verified source
Transmission mount/case Valve body to Case bolt 12 9
  • 42RLE Automatic Transmission
verified source
Transmission mount/case Valve body to Case bolt 12 9
  • 545RFE Automatic Transmission
verified source
Transmission mount/case Oil pump to Case bolt 30 22
  • 42RLE Automatic Transmission
verified source
Transmission mount/case Oil pump bolt 28 21
  • 545RFE Automatic Transmission
verified source
Transmission mount/case Transmission collar bolts 68 50
  • 545RFE Automatic Transmission
verified source
Transmission mount/case Detent spring screw 5 4
  • 545RFE Automatic Transmission
verified source
Transmission adapter Adapter/Extension housing bolt 54 40
  • 42RLE Automatic Transmission
verified source
Transmission adapter Extension housing bolt 54 40
  • 545RFE Automatic Transmission
verified source
Torque converter Torque converter housing to Engine bolt 68 50
  • 42RLE Automatic Transmission
verified source
Torque converter Torque converter housing to Engine upper four bolts 41 30
  • 545RFE Automatic Transmission
verified source
Torque converter Torque converter housing to Engine lower four bolts 54 40
  • 545RFE Automatic Transmission
verified source
Torque converter Converter housing bolt 68 50
  • 545RFE Automatic Transmission
verified source
Transfer Drain and FIll plug 20 15 Minimum torque
  • NV233 Transfer Case
verified source
Transfer Drain and Fill plug 34 25 Maximum torque
  • NV233 Transfer Case
verified source
Transfer Drain and FIll plug 20 15 Minimum torque
  • NV243 Transfer Case
verified source
Transfer Drain and Fill plug 34 25 Maximum torque
  • NV243 Transfer Case
verified source
Transfer Drain and FIll plug 20 15 Minimum torque
  • NV244 Transfer Case
verified source
Transfer Drain and Fill plug 34 25 Maximum torque
  • NV244 Transfer Case
verified source
Transfer Drain and FIll plug 20 15 Minimum torque
  • NV244 GENII Transfer Case
verified source
Transfer Drain and Fill plug 34 25 Maximum torque
  • NV244 GENII Transfer Case
verified source
Transfer Transfer case nuts 35 26
  • 545RFE Automatic Transmission
verified source
Transfer Valve body to Transfer plate bolt 5 4
  • 42RLE Automatic Transmission
verified source
Transfer Valve body to Transfer plate screw 6 4
  • 545RFE Automatic Transmission
verified source
Transfer Solenoid module to Transfer plate screw 6 4
  • 545RFE Automatic Transmission
verified source
Transfer Manual valve lever to Manual valve bolt 5 4
  • 42RLE Automatic Transmission
verified source
Transfer TRS/Manual shaft retaining screw 5 4
  • 42RLE Automatic Transmission
verified source
Transfer Manual valve cam retaining screw 5 4
  • 545RFE Automatic Transmission
verified source
Transfer Manual selector shaft retaining screw 28 21
  • 545RFE Automatic Transmission
verified source
Transfer Manual selector shaft cross-bolt 16 12
  • 545RFE Automatic Transmission
verified source
Transfer Shift tower bolts 10 7
  • Getrag 238 Manual Transmission
verified source
Transfer Shift fork pivot bolts 35 26
  • Getrag 238 Manual Transmission
verified source
Transfer Transfer case to Transmission bolts 27 20 Minimum torque
  • NV233 Transfer Case
verified source
Transfer Transfer case to Transmission bolts 34 25 Maximum torque
  • NV233 Transfer Case
verified source
Transfer Transfer case to Transmission bolts 27 20 Minimum torque
  • NV244 GENII Transfer Case
verified source
Transfer Transfer case to Transmission bolts 34 25 Maximum torque
  • NV244 GENII Transfer Case
verified source
Transfer Detent plug 16 12 Minimum torque
  • NV233 Transfer Case
verified source
Transfer Detent plug 24 18 Maximum torque
  • NV233 Transfer Case
verified source
Transfer Detent plug 16 12 Minimum torque
  • NV243 Transfer Case
verified source
Transfer Detent plug 24 18 Maximum torque
  • NV243 Transfer Case
verified source
Transfer Detent plug 16 12 Minimum torque
  • NV244 Transfer Case
verified source
Transfer Detent plug 24 18 Maximum torque
  • NV244 Transfer Case
verified source
Transfer Detent plug 16 12 Minimum torque
  • NV244 GENII Transfer Case
verified source
Transfer Detent plug 24 18 Maximum torque
  • NV244 GENII Transfer Case
verified source
Transfer Case half bolt 27 20 Minimum torque
  • NV233 Transfer Case
verified source
Transfer Case half bolt 34 25 Maximum torque
  • NV233 Transfer Case
verified source
Transfer Case half bolt 20 15 Minimum torque
  • NV243 Transfer Case
verified source
Transfer Case half bolt 27 20 Maximum torque
  • NV243 Transfer Case
verified source
Transfer Case half bolt 27 20 Minimum torque
  • NV244 Transfer Case
verified source
Transfer Case half bolt 34 25 Maximum torque
  • NV244 Transfer Case
verified source
Transfer Case half bolt 25 18 Minimum torque
  • NV244 GENII Transfer Case
verified source
Transfer Case half bolt 28 21 Maximum torque
  • NV244 GENII Transfer Case
verified source
Transfer Front brg. retainer bolt 16 12 Minimum torque
  • NV233 Transfer Case
verified source
Transfer Front brg. retainer bolt 25 18 Maximum torque
  • NV233 Transfer Case
verified source
Transfer Front brg. retainer bolt 16 12 Minimum torque
  • NV244 Transfer Case
verified source
Transfer Front brg. retainer bolt 25 18 Maximum torque
  • NV244 Transfer Case
verified source
Transfer Companion flange nut 122 90 Minimum torque
  • NV233 Transfer Case
verified source
Transfer Companion flange nut 176 130 Maximum torque
  • NV233 Transfer Case
verified source
Transfer Companion flange nut 122 90 Minimum torque
  • NV244 Transfer Case
verified source
Transfer Companion flange nut 176 130 Maximum torque
  • NV244 Transfer Case
verified source
Transfer Shift motor and Mode sensor assembly bolt 16 12 Minimum torque
  • NV233 Transfer Case
verified source
Transfer Shift motor and Mode sensor assembly bolt 25 18 Maximum torque
  • NV233 Transfer Case
verified source
Transfer Shift motor and Mode sensor assembly bolt 16 12 Minimum torque
  • NV243 Transfer Case
verified source
Transfer Shift motor and Mode sensor assembly bolt 24 18 Maximum torque
  • NV243 Transfer Case
verified source
Transfer Shift motor and Mode sensor assembly bolt 16 12 Minimum torque
  • NV244 Transfer Case
verified source
Transfer Shift motor and Mode sensor assembly bolt 25 18 Maximum torque
  • NV244 Transfer Case
verified source
Transfer Shift motor and Mode sensor assembly bolt 16 12 Minimum torque
  • NV244 GENII Transfer Case
verified source
Transfer Shift motor and Mode sensor assembly bolt 24 18 Maximum torque
  • NV244 GENII Transfer Case
verified source
Transfer Rear retainer bolt 27 20 Minimum torque
  • NV233 Transfer Case
verified source
Transfer Rear retainer bolt 34 25 Maximum torque
  • NV233 Transfer Case
verified source
Transfer Rear retainer bolt 27 20 Minimum torque
  • NV244 Transfer Case
verified source
Transfer Rear retainer bolt 34 25 Maximum torque
  • NV244 Transfer Case
verified source
Transfer Extension housing bolt 27 20 Minimum torque
  • NV233 Transfer Case
verified source
Transfer Extension housing bolt 34 25 Maximum torque
  • NV233 Transfer Case
verified source
Transfer Extension housing bolt 16 12 Minimum torque
  • NV243 Transfer Case
verified source
Transfer Extension housing bolt 24 18 Maximum torque
  • NV243 Transfer Case
verified source
Transfer Extension housing bolt 27 20 Minimum torque
  • NV244 Transfer Case
verified source
Transfer Extension housing bolt 34 25 Maximum torque
  • NV244 Transfer Case
verified source
Transfer Extension housing bolt 16 12 Minimum torque
  • NV244 GENII Transfer Case
verified source
Transfer Extension housing bolt 24 18 Maximum torque
  • NV244 GENII Transfer Case
verified source
Transfer Mounting nut 27 20 Minimum torque
  • NV233 Transfer Case
verified source
Transfer Mounting nut 34 25 Maximum torque
  • NV233 Transfer Case
verified source
Transfer Mounting nut 30 22 Minimum torque
  • NV243 Transfer Case
verified source
Transfer Mounting nut 41 30 Maximum torque
  • NV243 Transfer Case
verified source
Transfer Mounting nut 27 20 Minimum torque
  • NV244 Transfer Case
verified source
Transfer Mounting nut 34 25 Maximum torque
  • NV244 Transfer Case
verified source
Transfer Mounting nuts 30 22 Minimum torque
  • NV244 GENII Transfer Case
verified source
Transfer Mounting nuts 41 30 Maximum torque
  • NV244 GENII Transfer Case
verified source

steering torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to

exhaust torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Exhaust manifold Exhaust manifold bolts 25 18
  • 3.7L V6 Engine
verified source
Exhaust manifold Exhaust manifold bolts 25 18
  • 4.7L V8 Engine
verified source
Exhaust manifold Exhaust manifold heat shield nuts 8 6 Step 1
  • 3.7L V6 Engine
verified source
Exhaust manifold Exhaust manifold heat shield nuts 8 6 Step 1
  • 4.7L V8 Engine
verified source

brakes torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to

suspension torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to

general torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Example of a Raider

By MercurySable99 - Own work, CC BY-SA 4.0


Did you find the answer to your specific question?
👍 0 👎 1
