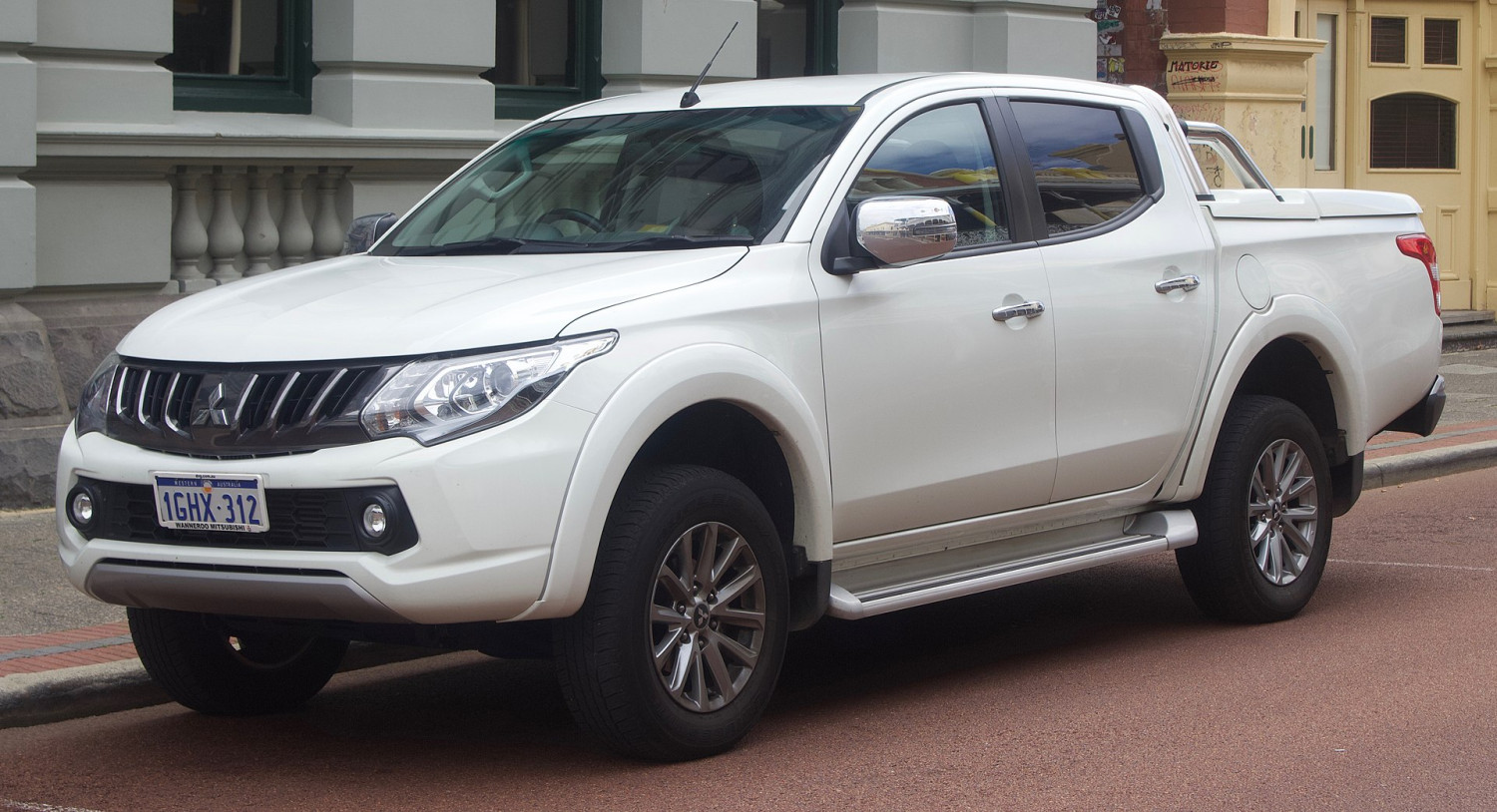

Mitsubishi Triton 5 (2015-2022) Torque Spec Settings

By EurovisionNim - Own work, CC BY-SA 4.0

Below you'll find the tightening torques for the Mitsubishi Triton 5 in both Nm and ft/lbs. The first table contains the most-used torque settings. The tables after it contain all torque spec values I could find.

Most-used torque specs for Mitsubishi Triton 5

Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to

Are these torque settings right for you?


All Torque Settings in Tables

engine torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Oil pan Oil Pan Upper Installation Bolt 11 8 ± 3 N·m (Specified sealant: ThreeBond 1217G or equivalent)
  • L200 [KK] [KL]
  • 4N15
verified source
Oil pan Oil Pan Lower Installation Bolt 19 14 ± 3 N·m (Specified sealant: ThreeBond 1217G or equivalent)
  • L200 [KK] [KL]
  • 4N15
verified source
Oil pan Oil Screen Bolt 11 8 ± 3 N·m (Specified sealant: ThreeBond 1217G or equivalent)
  • L200 [KK] [KL]
  • 4N15
verified source
Oil pan Bell Housing Cover Bolt 11 8 ± 3 N·m (Specified sealant: ThreeBond 1217G or equivalent)
  • L200 [KK] [KL]
  • 4N15
verified source
Oil pan Oil Drain Plug 39 29 ± 5 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Oil filter Oil Filter Bracket Bolt 23 17 ± 6 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Oil pressure switch Engine Oil Pressure Switch 19 14 ± 3 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Oil Cooler Engine Oil Cooler Bolt 23 17 ± 6 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Oil Cooler Engine Oil Cooler Bracket Bolt 23 17 ± 6 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Cylinder head Cylinder Head Bolt 50 37 ± 2 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Cylinder head Rocker Arm Shaft Bolt 31 23 ± 3 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Cylinder head Rocker Arm Pivot Bolt 18 13 ± 2 N·m
  • L200 [KK] [KL]
  • DOHC MIVEC DI-D
  • 4N15
verified source
Cylinder head Valve Lock Nut (Inlet Side) 9 7 ± 1.0 N·m (Tighten the lock nut to the specified torque using special tool valve adjusting socket (MB991477))
  • L200 [KK] [KL]
  • DOHC MIVEC DI-D
  • 4N15
verified source
Cylinder head Valve Lock Nut (Exhaust Side) 9.8 7 ± 1.0 N·m (Tighten the lock nut to the specified torque using special tool valve adjusting socket (MB992046)).
  • L200 [KK] [KL]
  • DOHC MIVEC DI-D
  • 4N15
verified source
Cylinder head Cylinder Head Bolt 50 37 ± 2 N·m → +90° → +90° → 0 → 50 ± 2 N·m → +90° → +90° → +90°
  • L200 [KK] [KL]
  • 4N15
verified source
Fuel Injector Harness Bracket Bolt (Side) 26 19 ± 6 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Fuel Injector Harness Bracket Bolt (Top) 11 8 ± 3 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Fuel Injector Fuel injection Pipe Flare Nut (Initial) 18 13 ± 2 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Fuel Injector Fuel Injection Pipe Flare Nut (Final) 35 26 ± 5 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Fuel Injector Fuel Injector Holder Mounting Bolts 1.1 1 ± 0.1 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Fuel Injector Common Rail Union Bolt 20 15 ± 2 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Fuel Injector Common Rail Fuel Return Pipe Bolt 9.5 7 ± 2.5 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Fuel Injector Common Rail Supply Pump Pipe Bolt 9.5 7 ± 2.5 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Fuel Injector Common Rail Assembly Bolt 25 18 ± 7 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Piston rods Connecting Rod Cap Bolt 20 15 ± 5 N·m → 20 N·m → +90°
  • L200 [KK] [KL]
  • 4N15
verified source
Engine cover Engine Cover Bolt 3 2 ± 0.5 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Engine block Engine Support Bracket Bolt 54 40 ± 13 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Engine block Timing Chain Case Bolt (A) 11 8 ± 3 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Engine block Timing Chain Case Bolt (B) 21 15 ± 3 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Engine mounts Front Engine Mount Bolt 48 35 ± 7 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Engine mounts Front Engine mounting nut 26 19 ± 5 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Engine mounts Rear Engine Support Insulator Connecting Nut 23 17 ± 2 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
  • All Variant
verified source
Engine mounts Rear Engine Support Insulator Connecting Bolt 49 36 ± 5 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
  • All Variant
verified source
Alternator Alternator Connecting Nut 45 33 ± 6 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Alternator Alternator Bracket Connecting Bolt 28 21 ± 4 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Alternator Alternator Bracket Mounting Bolt 26 19 ± 6 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Alternator Alternator Wire Connector Nut 12 9 ± 2 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Alternator Drive Belt Auto-Tensioner Connecting Bolt 48 35 ± 4 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Alternator Idler Pulley Allen Bolt 60 44 ± 3 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Camshaft Camshaft Bearing Cap Mounting Bolts (M6) 11 8 ± 1.0 N·m
  • L200 [KK] [KL]
  • DOHC MIVEC DI-D
  • 4N15
verified source
Camshaft Camshaft Bearing Cap Mounting Bolts (M8) 20 15 ± 1.0 N·m
  • L200 [KK] [KL]
  • DOHC MIVEC DI-D
  • 4N15
verified source
Water pump Water Pump Pulley Mounting Bolt 11 8 ± 3 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Water pump Water Pump Mounting Bolt 24 18 ± 3 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Water pump Water Pipe Mounting Bolt 11 8 ± 3 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Belt tensioner Idler Pulley Nut (Initial) 7.5 6 ± 2.5 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Belt tensioner Idler Pulley Nut (Final) 50 37 ± 2 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Belt tensioner Adjusting Bolt 5.5 4 ± 1.5 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Belt tensioner Idler Pulley Bolt 56 41 ± 6 N·m (Please refer Removal Step image)
  • L200 [KK] [KL]
  • 4N15
verified source
Belt tensioner Idler Pulley Bracket Bolt 26 19 ± 6 N·m (Please refer Removal Step image)
  • L200 [KK] [KL]
  • 4N15
verified source
Belt tensioner Tension Pulley Bracket Bolt 5.5 4 ± 1.5 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Belt tensioner Timing Chain Tensioner Bolt 11 8 ± 3 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Belt tensioner Tension Lever Bolt 23 17 ± 6 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Belt tensioner Chain Guide Bolt 11 8 ± 3 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Valve cover Valve or Rocker Cover Bolt (initial) 3 2 ± 1 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Valve cover Valve or Rocker Cover Bolt (Final) 5.5 4 ± 0.5 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Fuel Injector Supply Pump Shaft Lock Nut 83 61 ± 5 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Fuel Injector Supply Pump Assemly Mounting Bolt 25 18 ± 7 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Fuel Injector Supply Pump Pipe Mounting Bolt 9.5 7 ± 2.5 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Fuel Injector Fuel Return Pipe Assembly Mounting Bolt 9.5 7 ± 2.5 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Fuel Injector Fuel Inlet Pipe Assembly Mounting Bolt 9.5 7 ± 2.5 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Fuel Injector Suction Control Valve Mounting Bolts 8.9 7 ± 1.9 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Fuel Supply Fuel Tank Mounting Nut 8.9 7 ± 1.9 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Fuel Supply Fuel Tank Front Lower Protector Bolt 5 4 ± 1 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Fuel Supply Fuel Pipe and Gauge Assembly Mounting Nut 2.5 2 ± 0.4 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Fuel Supply Fuel Line Heater Mounting Nut 5.5 4 ± 1.5 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Fuel Supply Fuel Filter Bracket Bolt 12 9 ± 3 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Fuel Supply Fuel Filter Support Mounting Bolt 12 9 ± 3 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Fuel Supply Fuel Cooler Mounting Bolt 9.5 7 ± 2.5 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Fuel Supply Fuel Cooler Bracket Mounting Bolt 9.5 7 ± 2.5 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Fuel Supply Fuel Cooler & Bracket Connector Bolt 4.5 3 ± 1.5 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Throttle Body InterCooler Outlet Air Hose Clamp 6 4 ± 1 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Throttle Body Throttle Body Mounting Bolt 55 41 ± 3 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Glow Plug Glow Plug 18 13 ± 2 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Glow Control Unit Glow Control Unit Connecting Bolt 9 7 ± 1 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Glow Control Unit Glow Control Unit Bracket Connecting Nut 12 9 ± 2 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Intake manifold Air Intake Bolt Hose Clamp 4 3 ± 1 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Intake manifold Air Cleaner Body Bolt 8.5 6 ± 1.5 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Intake manifold Intercooler Assembly Mounting Bolt 11 8 ± 2 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Intake manifold Intercooler Bracket Mounting Bolt 12 9 ± 5 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Intake manifold Air Pipe Connecting Bolt 20 15 ± 4 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Intake manifold Air Hose Clamp (A) 7 5 ± 1 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Intake manifold Air Hose Clamp (B) 6 4 ± 1 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Intake manifold Inlet Manifold Mounting Bolt 20 15 ± 2 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Intake manifold Inlet Manifold Mounting Nut 20 15 ± 2 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Intake manifold Oil Level Gauge Guide Mounting Bolt 26 19 ± 6 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Turbocharger Oil Pipe Clamp Mounting Bolt 28 21 ± 1 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Turbocharger Oil Pipe Union Bolt 17 13 ± 2 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Turbocharger Turbocharger Cover Bolt 14 10 ± 1 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Turbocharger Turbocharger Bracket Nut 59 44 ± 5 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Turbocharger Turbocharger Bracket Bolt 28 21 ± 1 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Turbocharger Turbocharger Stay Bolt 28 21 ± 1 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Turbocharger Oil Return Pipe Connecting Pipe 9 7 ± 1 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Turbocharger Turbocharger Connecting Bolt (Exhaust) 59 44 ± 5 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Turbocharger Turbocharger Connecting Nut (Exhaust) 59 44 ± 5 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Turbocharger Water Pipe Connecting Bolt 11 8 ± 3 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Turbocharger Air Inlet Fitting Bolt 28 21 ± 1 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Oil Feeder Control Valve Taper Plug 10 7 ± 2 N·m (Specified sealant: ThreeBond 2403 or equivalent)
  • L200 [KK] [KL]
  • 4N15
verified source
Oil Feeder Control Valve Oil Feeder Control Valve 10 7 ± 2 N·m (Specified sealant: ThreeBond 2403 or equivalent)
  • L200 [KK] [KL]
  • 4N15
verified source
Starter Motor Starter Connecting Bolt 36 27 ± 9 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Starter Motor Starter Wire Connector Nut 11 8 ± 1 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Vacuum pump Oil Pipe Connector Bolt 19 14 ± 3 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Vacuum pump Vacuum Pump Oil Pipe Connector Bolt 15 11 ± 2 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Vacuum pump Vacuum Pump Bolt 26 19 ± 6 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Solenoid valve and vacuum hose Bracket Bolt 26 19 ± 6 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Solenoid valve and vacuum hose EGR Cooler Bypass Control Solenoid Valve Nut 5.5 4 ± 1.5 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Solenoid valve and vacuum hose Engine Cover Bracket Bolt 11 8 ± 3 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Solenoid valve and vacuum hose Harness Bracket Bolt (M6) 11 8 ± 3 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Solenoid valve and vacuum hose Harness Bracket Bolt (M8) 26 19 ± 6 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Solenoid valve and vacuum hose Manifold Absolute Pressure Sensor Bolt 5 4 ± 1 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Solenoid valve and vacuum hose Stud ball 9.5 7 ± 2.5 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Solenoid valve and vacuum hose Vacuum Pipe and Hose Assembly Bolt <Vehicles for Europe - 4WD> 11 8 ± 3 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Solenoid valve and vacuum hose Vacuum Pipe and Hose Assembly Bolt (Fuel Return Pipe B Bolt) <Vehicles for Europe - 4WD> 9.5 7 ± 2.5 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Solenoid valve and vacuum hose Vacuum Pipe Bolt 25 18 ± 5 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Solenoid valve and vacuum hose Variable Geometry Control Solenoid Valve Bolt 5.5 4 ± 1.5 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Crankshaft Balancer Unit Bolt 20 15 ± 1 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Crankshaft Crankshaft Pulley Bolt (Initial) 250 184
  • L200 [KK] [KL]
  • 4N15
verified source
Crankshaft Crankshaft Pulley Bolt (Final) 110 81
  • L200 [KK] [KL]
  • 4N15
verified source
Crankshaft (M/T) Flywheel Bolts 40 30 ± 2 N·m
  • L200 [KK] [KL]
  • 4N15
  • Manual Variant
verified source
Crankshaft (A/T) Drive Plate Bolts (Initial) 40 30 ± 2 N·m
  • L200 [KK] [KL]
  • 4N15
  • Automatic Variant
verified source
Crankshaft (A/T) Drive Plate bolts (Final) 135 100 ± 5 N·m
  • L200 [KK] [KL]
  • 4N15
  • Automatic Variant
verified source
Crankshaft Crankshaft Pulley Bolt (Initial) 250 184 (1) Tighten the crankshaft pulley bolt to the specified torque. Tightening torque: 250 N·m (2) Loosen the crankshaft pulley bolt fully.
  • L200 [KK] [KL]
  • 4N15
verified source
Crankshaft Crankshaft Pulley Bolt (Final) 110 81 (3) Tighten the crankshaft pulley bolt to the specified torque again. Tightening torque: 110 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Crankshaft Bearing Cap bolt (M8) 26 19 ± 6 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Crankshaft Bearing Cap Bolt (M11) 65 48 ± 2 N·m → +120° to 125°
  • L200 [KK] [KL]
  • 4N15
verified source
Crankshaft Check Valve 32 24 ± 2 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Crankshaft Crankshaft Sensing Ring Bolt 11 8 ± 1 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Engine ECU ECU Cover Bolt 7.5 6 ± 1.5 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Engine ECU Engine ECU Lock Nut 5 4 ± 2 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Engine ECU Engine Upper Bracket Bolt 5 4 ± 2 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Engine ECU Engine Lower Bracket Bolt 5 4 ± 2 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Radiator Cooling Fan Mouting Bolt 10 7 ± 2 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Radiator Fan Drive Pulley Nut 10 7 ± 2 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Radiator Thermostat Water Inlet Fitting Bolt 26 19 ± 6 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Radiator Radiator Mounting Bolt 11 8 ± 3 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Radiator Air Guide Panel Mounting Bolt 5 4 ± 1 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Radiator Radiator Shroud Mounting Bolt 5 4 ± 1 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Radiator Condenser Tank Assembly Mounting Bolt 8 6 ± 2 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Sensor Engine Coolant Temperature Sensor 30 22 ± 9 N·m (Specified sealant: ThreeBond 1324N or equivalent)
  • L200 [KK] [KL]
  • 4N15
verified source
Sensor Intake Air Temperature Sensor 1 1 ± 0.1 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Sensor Camshaft Position Sensor Mounting Bolt 9.5 7 ± 2.5 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Sensor Crankshaft Angle Sensor Mounting Bolt 9.5 7 ± 2.5 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Sensor Air Flow Sensor Bolt 0.7 1 ± 0.1 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Sensor EGR Gas Temperature Sensor Flare Nut 20 15 ± 4 N·m
  • L200 [KK] [KL]
  • 4N15
verified source

drivetrain torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Differential Front Differential Filler Plug 50 37 ± 10 N·m
  • L200 [KK] [KL]
  • 4N15
  • 4WD
verified source
Differential Front Differential Drain Plug 65 48 ± 5 N·m
  • L200 [KK] [KL]
  • 4N15
  • 4WD
verified source
Differential Front Differential Cover Bolt 18 13 ± 3 N·m
  • L200 [KK] [KL]
  • 4N15
  • 4WD
verified source
Differential Front Differential Case Bolt 84 62 ± 4 N·m
  • L200 [KK] [KL]
  • 4N15
  • 4WD
verified source
Differential Front Differential Bearing Cap Mounting Bolt 59 44 ± 4 N·m
  • L200 [KK] [KL]
  • 4N15
  • 4WD
verified source
Differential Front Differential Drive Pinion Self-Locking Nut 216 159 ± 29 N·m
  • L200 [KK] [KL]
  • 4N15
  • 4WD
verified source
Differential Front Propeller Shaft Connection Nut 54 40 ± 5 N·m
  • L200 [KK] [KL]
  • 4N15
  • 4WD
verified source
Differential Front Suspension Rear Cross-member Assembly Mounting Bolt & Nut 108 80 ± 10 N·m
  • L200 [KK] [KL]
  • 4N15
  • 4WD
verified source
Differential Front Differential Mount Bracket Assembly (Rear) Bolt 44 32 ± 10 N·m
  • L200 [KK] [KL]
  • 4N15
  • 4WD
verified source
Differential Front Differential Mounting Bracket Bolt 90 66 ± 10 N·m
  • L200 [KK] [KL]
  • 4N15
  • 4WD
verified source
Differential Actuator Bracket Connecting Bolt 17 13 ± 3 N·m
  • L200 [KK] [KL]
  • 4N15
  • 4WD
verified source
Differential Free Wheel Engage Switch 25 18 ± 5 N·m
  • L200 [KK] [KL]
  • 4N15
  • 4WD
verified source
Differential Breather Pipe Clamp Mounting Bolt 12 9 ± 2 N·m
  • L200 [KK] [KL]
  • 4N15
  • 4WD
verified source
Differential Front Differential Mounting Bracket Connecting Nut <RH & LH> 105 77 ± 15 N·m
  • L200 [KK] [KL]
  • 4N15
  • 4WD
verified source
Differential Front Differential Support Bracket Bolt 90 66 ± 10 N·m
  • L200 [KK] [KL]
  • 4N15
  • 4WD
verified source
Differential Rear Differential and Profeller Shaft Connecting Bolt & Nut 103 76 ± 5 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
verified source
Differential Rear Differential Drain Plug 60 44 ± 10 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
verified source
Differential Rear Differential Filler Plug 50 37 ± 10 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
verified source
Differential Rear Differential Carrier Assembly and Housing Connecting Nut 47 35 ± 7 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
verified source
Differential Rear Differential Dynamic Damper Connecting Bolt 41 30 ± 10 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
verified source
Differential Rear Differential Drive Pinion Self-Locking Nut 216 159 ± 29 N·m
  • L200 [KK] [KL]
  • 4N15
  • 4WD
verified source
Differential Rear Differential Lock Detection Switch Bolt 8.9 7 ± 1.9 N·m
  • L200 [KK] [KL]
  • 4N15
  • 4WD
verified source
Differential Rear Differential Lock Soleniod Bolt 8.9 7 ± 1.9 N·m
  • L200 [KK] [KL]
  • 4N15
  • 4WD
verified source
Differential Rear Differential Bearing Cap 74 55 ± 4 N·m
  • L200 [KK] [KL]
  • 4N15
  • 4WD
verified source
Differential Rear Differential Lock Assembly Bolt 152 112 ± 15 N·m
  • L200 [KK] [KL]
  • 4N15
  • 4WD
verified source
Differential Rear Differential Lock Plate Bolt 18 13 ± 3 N·m
  • L200 [KK] [KL]
  • 4N15
  • 4WD
verified source
CVs Bolt and Nut (Inboard Joint Outer Race & House Tube Assy.) 60 44 ± 10 N·m
  • L200 [KK] [KL]
  • 4N15
  • 4WD
verified source
CVs Front Axle Nut 200 148 ± 10 N·m
  • L200 [KK] [KL]
  • 4N15
  • 4WD
verified source
Clutch assembly Clutch Master Cylinder Pipe Flare Nut (M10) 15 11 ± 2 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Clutch assembly Clutch Master Cylinder Pipe Flare Nut (M12) 18 13 ± 2 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Clutch assembly Clutch Dumper & Hose Union Bolt 23 17 ± 2 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Clutch assembly Clutch Dumper & Pipe Flare Nut 15 11 ± 2 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Clutch assembly Clutch Hose & Master Cylinder Pipe Flare Nut 18 13 ± 2 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Clutch assembly Clutch Release Cylinder Mounting Bolt 10 7 ± 2 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Clutch pressure plate Clutch Cover Mounting Bolts (1st) 7 5 Tighten all bolt
  • L200 [KK] [KL]
  • 4N15
verified source
Clutch pressure plate Clutch Cover Mounting Bolts (2nd) 7 5 Tighten as per order
  • L200 [KK] [KL]
  • 4N15
verified source
Clutch pressure plate Clutch Cover Mounting Bolts (3rd) 15 11 Tighten as per order
  • L200 [KK] [KL]
  • 4N15
verified source
Clutch pressure plate Clutch Cover Mounting Bolts (4th) 30 22 Tighten as per order
  • L200 [KK] [KL]
  • 4N15
verified source
Clutch pressure plate Clutch Cover Mounting Bolts (Final) 30 22 ± 2 N·m Tighten as per order
  • L200 [KK] [KL]
  • 4N15
verified source
Transmission fluid pan Filler Plug 37 27 ± 11 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
  • All Variant
verified source
Transmission fluid pan Drain Plug 37 27 ± 11 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
  • All Variant
verified source
Transmission fluid pan Oil Pool Cover Bolt 7.6 6 ± 2.2 N·m
  • L200 [KK] [KL]
  • 4N15
  • 4WD
  • R5AWF & V5AWF
verified source
Transmission fluid pan Oil Strainer Assembly Bolt 10 7 ± 2 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
  • R5AWF & V5AWF
verified source
Transmission fluid pan Oil Pan Sub-Assembly Bolt 7 5 ± 0.9 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
  • R5AWF & V5AWF
verified source
Transmission fluid pan Drain Plug 20 15 ± 2 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
  • R5AWF & V5AWF
verified source
Transmission fluid pan Overflow Plug 20 15 ± 2 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
  • R5AWF & V5AWF
verified source
Transmission fluid pan Oil Pump Assembly Bolt 21 15 ± 3 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
  • R5AWF & V5AWF
verified source
Transmission mount Transmission to Engine Mounting Bolts 48 35 ± 6 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
  • All Variant
verified source
Transmission mount Transmission to Transfer Case Mounting Bolts 28 21 ± 4 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
  • R6M5A & V6M5A
verified source
Transmission mount Backup Lamp Switch 34 25 ± 5 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
  • R6M5A & V6M5A
verified source
Transmission mount Neutral Position Switch <Vehicles with AS&G System> 32 24 ± 2 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
  • R6M5A & V6M5A
verified source
Transmission mount Bracket Mounting Bolt <Vehicles with AS&G System> 24 18 ± 4 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
  • R6M5A & V6M5A
verified source
Transmission mount Self-Locking Nut 255 188 ± 10 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
  • R6M5A & V6M5A
verified source
Transmission mount Extension Housing Mounting Bolt 44 32 ± 5 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
  • R6M5A & V6M5A
verified source
Transmission mount M/T Case Rear Mounting Bolt 44 32 ± 5 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
  • R6M5A & V6M5A
verified source
Transmission mount M/T Case Front Plug 32 24 ± 2 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
  • R6M5A & V6M5A
verified source
Transmission mount M/T Case Front Bolt 48 35 ± 5 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
  • R6M5A & V6M5A
verified source
Transmission mount M/T Case Front Mounting Bolt 44 32 ± 5 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
  • R6M5A & V6M5A
verified source
Transmission mount Gearshift Interlock Plate Mounting Bolt 23 17 ± 2 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
  • R6M5A & V6M5A
verified source
Transmission mount Transfer Plug 19 14 ± 5 N·m
  • L200 [KK] [KL]
  • 4N15
  • 4WD
  • V6M5A & V5AWF
verified source
Transmission mount Self-Locking Nut [Companion Flange (Front)] 118 87 ± 19 N·m
  • L200 [KK] [KL]
  • 4N15
  • 4WD
  • V6M5A & V5AWF
verified source
Transmission mount Self-Locking Nut [Companion Flange (Rear)] 128 94 ± 25 N·m
  • L200 [KK] [KL]
  • 4N15
  • 4WD
  • V6M5A & V5AWF
verified source
Transmission mount Gearshift Link Plug <Easy Select 4WD> 19 14 ± 5 N·m
  • L200 [KK] [KL]
  • 4N15
  • 4WD
  • V6M5A & V5AWF
verified source
Transmission mount Gearshift Fork 2 Bolt <Super Select 4WD> 24 18 ± 4 N·m
  • L200 [KK] [KL]
  • 4N15
  • 4WD
  • V6M5A & V5AWF
verified source
Transmission mount Stopper Bolt 19 14 ± 3 N·m
  • L200 [KK] [KL]
  • 4N15
  • 4WD
  • V6M5A & V5AWF
verified source
Transmission mount Transmission Control Cable Connection Nut 23 17 ± 4 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
  • R5AWF & V5AWF
verified source
Transmission mount Transmission Cable Bracket Mounting Bolt 11 8 ± 2 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
  • R5AWF & V5AWF
verified source
Transmission mount Selector Lever Mounting Nut 11 8 ± 2 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
  • R5AWF & V5AWF
verified source
Transmission mount Transmission Control Cable Clip Bolt 11 8 ± 2 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
  • R5AWF & V5AWF
verified source
Transmission mount Heat Protector Mounting Bolt 11 8 ± 2 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
  • R5AWF & V5AWF
verified source
Transmission mount Transmission Assembly Coupling Bolt 49 36 ± 6 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
  • R5AWF & V5AWF
verified source
Transmission mount Drive Plate Connecting Bolt 56 41 ± 3 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
  • R5AWF & V5AWF
verified source
Transmission mount Breather Pipe Assembly Mounting Bolt 22 16 ± 4 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
  • R5AWF & V5AWF
verified source
Transmission mount Bell Housing Mounting Bolt 11 8 ± 3 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
  • R5AWF & V5AWF
verified source
Transmission mount A/T Fluid Cooler Bracket Mounting Bolt 12 9 ± 5 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
  • R5AWF & V5AWF
verified source
Transmission mount A/T Fluid Cooler Side Tube Assembly Union Bolt 30 22 ± 4 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
  • R5AWF & V5AWF
verified source
Transmission mount Inhibitor Switch Nut 6.9 5 ± 0.9 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
  • R5AWF & V5AWF
verified source
Transmission mount Inhibitor Switch Bolt 13 10 ± 2 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
  • R5AWF & V5AWF
verified source
Transmission mount Union bolt 30 22 ± 5 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
  • R5AWF & V5AWF
verified source
Transmission mount Transmission Control Shaft Lever LH 16 12 ± 1 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
  • R5AWF & V5AWF
verified source
Transmission mount Breather Tube 5.4 4 ± 1.5 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
  • R5AWF & V5AWF
verified source
Transmission mount Converter Housing Bolt (M10) 34 25 ± 7 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
  • R5AWF & V5AWF
verified source
Transmission mount Converter Housing Bolt (M12) 57 42 ± 9 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
  • R5AWF & V5AWF
verified source
Transmission mount Extension Housing Plug <2WD> 39 29 ± 15 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD
  • R5AWF
verified source
Transmission mount Extension Housing <2WD> (M8) 23 17 ± 3 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD
  • R5AWF
verified source
Transmission mount Extension Housing <2WD> (M10) 34 25 ± 7 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD
  • R5AWF
verified source
Transmission mount Transmission Case RR Adaptor Plug <4WD> 39 29 ± 15 N·m
  • L200 [KK] [KL]
  • 4N15
  • 4WD
  • V5AWF
verified source
Transmission mount Transmission Case RR Adaptor <4WD> (M8) 23 17 ± 3 N·m
  • L200 [KK] [KL]
  • 4N15
  • 4WD
  • V5AWF
verified source
Transmission mount Transmission Case RR Adaptor <4WD> (M10) 34 25 ± 7 N·m
  • L200 [KK] [KL]
  • 4N15
  • 4WD
  • V5AWF
verified source
Transmission mount Parking Lock Pawl Bracket Bolt 7.4 5 ± 1.4 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
  • R5AWF & V5AWF
verified source
Transmission mount Valve Body Assembly Bolt 11 8 ± 1 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
  • R5AWF & V5AWF
verified source
Transmission mount Manual Detent Spring Sub-Assembly Bolt 10 7 ± 2 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
  • R5AWF & V5AWF
verified source
Transmission mount Harness Clamp Bolt 5.4 4 ± 1.5 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
  • R5AWF & V5AWF
verified source
Transmission mount Temperature Sensor Clamp Bolt (M6 x 1.0 x 12 mm) 10 7 ± 2 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
  • R5AWF & V5AWF
verified source
Transmission mount Temperature Sensor Clamp Bolt (M6 x 1.0 x 36 mm) 11 8 ± 1 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
  • R5AWF & V5AWF
verified source
Transmission mount Stator Shaft Assembly Bolt 10.5 8 ± 0.5 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
  • R5AWF & V5AWF
verified source
Transmission mount 3way Solenoid Assembly No. 1 (S1) Bolt 6.7 5 ± 0.7 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
  • R5AWF & V5AWF
verified source
Transmission mount 2way Solenoid Assembly (S2) Bolt 10 7 ± 2 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
  • R5AWF & V5AWF
verified source
Transmission mount 3way Solenoid Assembly No. 2 (SR) Bolt 6.7 5 ± 0.7 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
  • R5AWF & V5AWF
verified source
Transmission mount Chassis Frame Cross-Member Bolt & Nut 106 78 ± 8 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
  • All Variant
verified source
Transfer Transfer Chain Case Cover (front) Bolt 12 9 ± 3 N·m
  • L200 [KK] [KL]
  • 4N15
  • 4WD
  • V6M5A & V5AWF
verified source
Transfer Transfer Chain Case Cover (rear) Bolt 28 21 ± 8 N·m
  • L200 [KK] [KL]
  • 4N15
  • 4WD
  • V6M5A & V5AWF
verified source
Transfer Transfer Case Underguard Mounting Bolt 59 44 ± 8 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
  • R6M5A & V6M5A
verified source
Transfer Transfer Case Bracket Mounting Bolt 28 21 ± 4 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
  • R6M5A & V6M5A
verified source
Transfer Transfer Oil Separator Bolt 7.6 6 ± 2.2 N·m
  • L200 [KK] [KL]
  • 4N15
  • 4WD
  • V6M5A & V5AWF
verified source
Transfer Transfer Filler Plug 37 27 ± 11 N·m
  • L200 [KK] [KL]
  • 4N15
  • 4WD
  • V6M5A & V5AWF
verified source
Transfer Transfer Drain Plug 37 27 ± 11 N·m
  • L200 [KK] [KL]
  • 4N15
  • 4WD
  • V6M5A & V5AWF
verified source
Transfer Transfer Actuator Bolt 20 15 ± 6 N·m
  • L200 [KK] [KL]
  • 4N15
  • 4WD
  • V6M5A & V5AWF
verified source
Transfer Transfer Oil Pump Assembly Bolt 7.6 6 ± 2.2 N·m
  • L200 [KK] [KL]
  • 4N15
  • 4WD
  • V6M5A & V5AWF
verified source
Transfer Transfer Roll Stopper Connecting Nut 25 18 ± 5 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
  • All Variant
verified source
Transfer Transfer Mount Bracket Bolt & Nut 44 32 ± 9 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
  • All Variant
verified source
Transfer Transfer Mount Bracket Mounting Bolt 25 18 ± 5 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
  • All Variant
verified source
Transfer Transfer Mount Bracket Assembly Bolt 25 18 ± 5 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
  • All Variant
verified source
Axle shaft Front Differential Drive Pinion Self-Locking Nut 216 159 ± 29 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD
verified source
Axle shaft Rear Differential Housing & Shoe and Lining Assembly Connecting Bolt 55 41 ± 5 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
verified source
Axle shaft Propeller Shaft Sleeve Yoke & Ball Joint Assembly Connecting Bolt & Nut 54 40 ± 5 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD
  • R5AWF
verified source
Axle shaft Front Propeller Shaft & Centre Yoke Connecting Nut 187 138 ± 29 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD
  • R5AWF
verified source
Axle shaft Front Propeller Shaft Mounting Nut & Bolt 54 40 ± 5 N·m
  • L200 [KK] [KL]
  • 4N15
  • 4WD
  • R5AWF
verified source
Axle shaft Front Propeller Shaft Flange Yoke Self-Locking Nut 103 76 ± 5 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD
  • R6M5A
verified source
Axle shaft Front Propeller Shaft Flange Yoke & Front Differential Nut & Bolt 54 40 ± 5 N·m
  • L200 [KK] [KL]
  • 4N15
  • 4WD
  • All Variant
verified source
Axle shaft Front Propeller Shaft Flange Yoke & Transfer Self-Locking Nut 54 40 ± 5 N·m
  • L200 [KK] [KL]
  • 4N15
  • 4WD
  • All Variant
verified source
Axle shaft Rear Propeller Shaft Flange Yoke Self-Locking Nut & Bolt 135 100 ± 5 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
  • All Variant
verified source
Axle shaft Propeller Shaft Centre Bearing Bracket Self-Locking Nut 34 25 ± 5 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
  • All Variant
verified source
Sensor Front Wheel Speed Sensor Bolt 11 8 ± 2 N·m
  • L200 [KK] [KL]
  • 4N15
  • 4WD
verified source
Sensor Rear Wheel Speed Sensor Mounting Bolt 11 8 ± 2 N·m
  • L200 [KK] [KL]
  • 4N15
  • 4WD
verified source
Sensor Speed Sensor (Output) 5.4 4 ± 1.5 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
  • R5AWF & V5AWF
verified source
Sensor Speed Sensor (Input) 5.4 4 ± 1.5 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
  • R5AWF & V5AWF
verified source

steering torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Tie rod end Tie Rod End Ball Joint & Knuckle Connection Slotted Nut 40 30 ± 4 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
  • All Variant
verified source
Tie rod end Tie Rod End Lock Nut 93 69 ± 15 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
  • All Variant
verified source
Tie rod end Tie Rod 89 66 ± 10 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
  • All Variant
verified source
Steering knuckle Dust Cover Bolt 9 7 ± 2 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
  • All Variant
verified source
Steering knuckle Bolt (Knuckle and Front Brake Caliper Assembly Connection) 113 83 ± 9 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
  • All Variant
verified source
Steering knuckle Bolt (Knuckle and Front Hub Assembly Connection) 88 65 ± 10 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
  • All Variant
verified source
Steering rack Power Steering Gear Box Mounting Bolt & Nut 100 74 ± 15 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Steering rack Power Steering Gear Rack Support Lock Nut 59 44 ± 10 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Steering rack Power Steering Gear End Plug 59 44 ± 10 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Steering rack Power Steering Gear Valve Housing Mounting Bolt 18 13 ± 3 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Steering rack Power Steering Gear Valve Housing Feed Pipe Flare Nut 15 11 ± 3 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Steering column Paddle Shift Assembly Bolt <Vehicles with Paddle Shift> 4 3 ± 2 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Steering column Steering Column Tilt Lever Mounting Bolt 21 15 ± 3 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Steering column Steering Column Mounting Bolt 42 31 ± 8 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Steering column Bolt (Steering Column Assembly and Steering Shaft Assembly Connection) 42 31 ± 8 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Steering column Steering Column Dash Cover Bolt 5 4 ± 1 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Steering column Steering Column Dash Cover Bolt 5 4 ± 1 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Steering shaft Bolt (Steering Shaft Lower and Steering Shaft Joint Assembly Connection) 32 24 ± 3 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Steering shaft Steering Shaft Joint Support Bracket Lower Bolt 13 10 ± 2 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Steering shaft Bolt (Steering Shaft Assembly and Power Steering Gear Box Assembly) 32 24 ± 3 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Steering wheel Steering Wheel Column Lock Nut 32 24 ± 3 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Power steering pump Power Steering Oil Return Tube Connection Flare Nut 15 11 ± 2 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Power steering pump Power Steering Oil Pressure Tube Connection Flare Nut 15 11 ± 2 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Power steering pump Power Steering Oil Pressure Hose Connection Union Bolt 15 11 ± 2 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Power steering pump Power Steering Pump Pulley and Shaft Bolt 23 17 ± 3 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Power steering pump Power Steering Pump Cover Bolt 24 18 ± 2 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Power steering pump Power Steering Pump Terminal 18 13 ± 2 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Power steering pump Power Steering Pump Flow Joint Kit 79 58 ± 9 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Power steering pump Power Steering Pump Flow Control Kit Bolt 9.9 7 ± 2.1 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Power steering pump Power Steering Oil Pump Bracket & Tension Pulley Bracket Connecting Bolt 29 21 ± 3 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Power steering pump Power Steering Oil Pump Bracket Bolt 26 19 ± 6 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Power steering pump Adjusting Stud 12 9 ± 2 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Power steering pump Power Steering Oil Line Bracket 12 9 ± 2 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Power steering pump Power Steering Reservior Mounting Bolt 12 9 ± 2 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Power steering pump Power Steering Oil Pressure Hose Union Bolt 57 42 ± 7 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Power steering pump Power Steering Oil Pressure Tube Flare Nut 45 33 ± 4 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Power steering pump Power Steering Oil Tube Clip Bolt 12 9 ± 2 N·m
  • L200 [KK] [KL]
  • 4N15
verified source

exhaust torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Exhaust manifold Exhaust Manifold Cover Bolt 14 10 ± 1 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
verified source
Exhaust manifold Exhaust Manifold Cover Bracket Bolt 26 19 ± 3 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
verified source
Exhaust manifold Exhaust Manifold Connecting Nut 62 46 ± 5 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
verified source
Exhaust Exhaust Center Pipe Mounting Bolt 9.5 7 ± 3.5 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
verified source
Exhaust Main Muffler Connecting Bolt 41 30 ± 10 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
verified source
Exhaust Exhaust Manifold Pipe Connecting Bolt 49 36 ± 5 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
verified source
Exhaust Front Floor Heat Protector Panel Connecting Bolt 5 4 ± 1 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
verified source
Exhaust Front Dash Heat Protector Panel Connecting Bolt 5 4 ± 1 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
verified source
Exhaust Dash Heat Protector Panel Connecting Bolt 5 4 ± 1 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
verified source

brakes torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Brake caliper Brake Tube Flare Nut 16 12 ± 3 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Brake caliper Connection between Brake Hose and Brake Tube 16 12 ± 3 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Brake caliper Front Brake Caliper Assembly & Dust Cover Connecting Bolt 113 83 ± 9 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Brake caliper Brake Hose Union Bolt 30 22 ± 5 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Brake caliper Brake Hose Bracket Mounting Bolt 11 8 ± 2 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Brake caliper Bleeder Screw 7.9 6 ± 0.9 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Brake caliper Caliper Body and Support Pin Bolt 27 20 ± 4 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Drum brake Drum Brake Tube Flare Nut 16 12 ± 3 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
  • All Variant
verified source
Drum brake Brake Pipe Connection Flare Nut 16 12 ± 3 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
  • All Variant
verified source
Drum brake Drum Brake Wheel Cylinder Bleeder Screw 6.9 5 ± 1 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
  • All Variant
verified source
Drum brake Drum Brake Wheel Cylinder Connecting Bolt 16 12 ± 1 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
  • All Variant
verified source
Brake system Brake Booster Mounting Nut 57 42 ± 7 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Brake system Brake Master Cylinder Assembly and Brake Pipe Connection Flare Nut 20 15 ± 3 N·m
  • L200 [KK] [KL]
  • 4N15
verified source
Brake system Fuel Pipe Bracket Connecting Nut 13 10 ± 3 N·m (Left hand drive)
  • L200 [KK] [KL]
  • 4N15
verified source
Brake system Harness Bracket Connecting Nut 11 8 ± 2 N·m (Left hand drive)
  • L200 [KK] [KL]
  • 4N15
verified source
Brake system Brake Booster Assembly & Brake Master Cylinder Assembly Connecting Nut 13 10 ± 3 N·m (Right hand drive)
  • L200 [KK] [KL]
  • 4N15
verified source
Hand Brake Parking Brake Lever Assembly Mounting Nut 23 17 ± 4 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
  • All Variant
verified source
Hand Brake Parking Brake Switch Bolt 1.5 1 ± 0.2 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
  • All Variant
verified source
Hand Brake Parking Brake Rear Cable Clip Bolt 11 8 ± 2 N·m
  • L200 [KK] [KL]
  • 4N15
  • 2WD & 4WD
  • All Variant
verified source

suspension torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Wheels Steel Wheels Lug Nuts 147 108 ± 10 N·m
  • 2WD & 4WD
  • All Variant
verified source
Wheels Aluminum Wheels Lug Nuts 128 94 ± 9 N·m
  • 2WD & 4WD
  • All Variant
verified source
Wheels Spare Tyre Carrier Assembly Mounting Bolt 13 10 ± 2 N·m
  • 2WD & 4WD
  • All Variant
verified source
Shock absorbers/shocks Bolt (Shock Absorber and Lower Arm Assembly Connection) 105 77 ± 10 N·m
  • 2WD & 4WD
verified source
Shock absorbers/shocks Shock Absorber Assembly Self-Locking Nut 22 16 ± 2 N·m
  • 2WD & 4WD
verified source
Shock absorbers/shocks Shock Absorber Assembly & Body Mounting Nut 44 32 ± 5 N·m
  • 2WD & 4WD
verified source
Shock absorbers/shocks Shock Absorber Assembly & Lower Arm Connecting Nut & Bolt 105 77 ± 10 N·m
  • 2WD & 4WD
verified source
Shock absorbers/shocks Lift Spring and Rear Axle U-Bolt & Nut 130 96 ± 10 N·m
  • 2WD & 4WD
verified source
Shock absorbers/shocks Shock Absorber & U-Bolt Seat Connecting Nut 22 16 ± 3 N·m
  • 2WD & 4WD
verified source
Stabilizer bar Stabilizer Bar & Stabilizer Link Connecting Nut 100 74 ± 10 N·m
  • 2WD & 4WD
verified source
Stabilizer bar Stabilizer Clamp Mounting Bolt 44 32 ± 10 N·m
  • 2WD & 4WD
verified source
Sway bar links/Stabilizer links Stabilizer Link & Lower Arm Connecting Nut 42 31 ± 8 N·m
  • 2WD & 4WD
verified source
Ball joint Upper Arm Assembly & Knuckle Slotted Nut 74 55 ± 14 N·m
  • 2WD & 4WD
verified source
Ball joint Upper Arm Ball Joint Connection Nut 74 55 ± 14 N·m
  • 2WD & 4WD
verified source
Ball joint Bolt (Upper Arm Assembly and Front Frame Connection) 105 77 ± 10 N·m
  • 2WD & 4WD
verified source
Ball joint Bolt (Shock Absorber and Lower Arm Assembly Connection) 105 77 ± 10 N·m
  • 2WD & 4WD
verified source
Ball joint Rebound Stopper Bolt 13 10 ± 2 N·m
  • 2WD & 4WD
verified source
Ball joint Lower Arm Ball Joint & Lower Arm Assy. Connecting Nut & Bolt 111 82 ± 14 N·m
  • 2WD & 4WD
verified source
Ball joint Lower Arm Mounting Bolt & Nut 129 95 ± 15 N·m
  • 2WD & 4WD
verified source
Ball joint Lower Arm Ball Joint Connection Nut 147 108 ± 29 N·m
  • 2WD & 4WD
verified source

general torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to

Did you find the answer to your specific question?
👍 6 👎 7
