Land Rover Range Rover 2 (1994-2002) Torque Spec Settings

Researched by Wan Wei Tay
Updated: January 07, 2024

By OSX - Own work, Public Domain

Below you'll find the tightening torques for the Land Rover Range Rover 2 in both Nm and ft/lbs. The first table contains the most-used torque settings. The tables after it contain all torque spec values I could find.

Most-used torque specs for Land Rover Range Rover 2

Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to

To make sure these are the correct tightening torque values, you can use the data below to verify this is the right model.

Are these torque settings right for you?

  • Production years: 1994 - 2002
  • Generation: 2
  • Type of van: car
  • Model variant: Base

All Torque Settings in Tables

engine torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Fuel/Oil cooler Oil cooler adaptors 42 31
  • ZF Automatic Gearbox
verified source

drivetrain torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Transmission fluid pan Fluid pan to Gearbox bolts 8 6
  • ZF Automatic Gearbox
verified source
Transmission fluid pan Fluid cooler pipe unions 22 16
  • ZF Automatic Gearbox
verified source
Transmission mount/case Extension housing bolts 25 18
  • ZF Automatic Gearbox
verified source
Torque converter Torque converter to Drive plate bolts 50 37
  • From 99 Model Year
  • ZF Automatic Gearbox
verified source
Transfer Gearbox mounting assembly bolts 45 33
  • ZF Automatic Gearbox
verified source
Transfer Parking pawl guide Torx screw 10 7
  • ZF Automatic Gearbox
verified source
Drive/Axle shaft Propeller shafts to Transfer box output flanges nuts 48 35
  • ZF Automatic Gearbox
verified source

steering torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to

exhaust torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to

brakes torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to

suspension torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to

general torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to

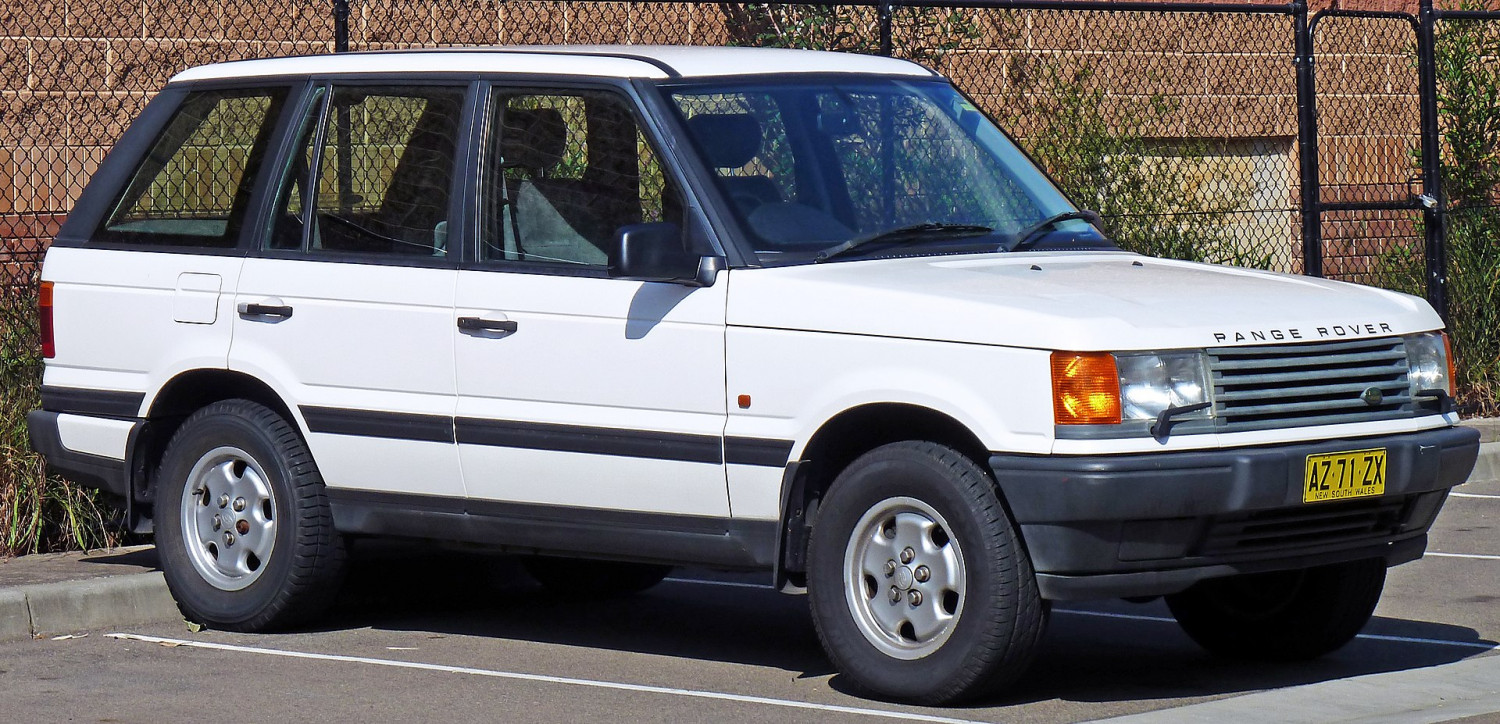

Example of a Range Rover 2

By OSX - Own work, Public Domain
