GMC Sierra 4 (2014-2018) Torque Spec Settings

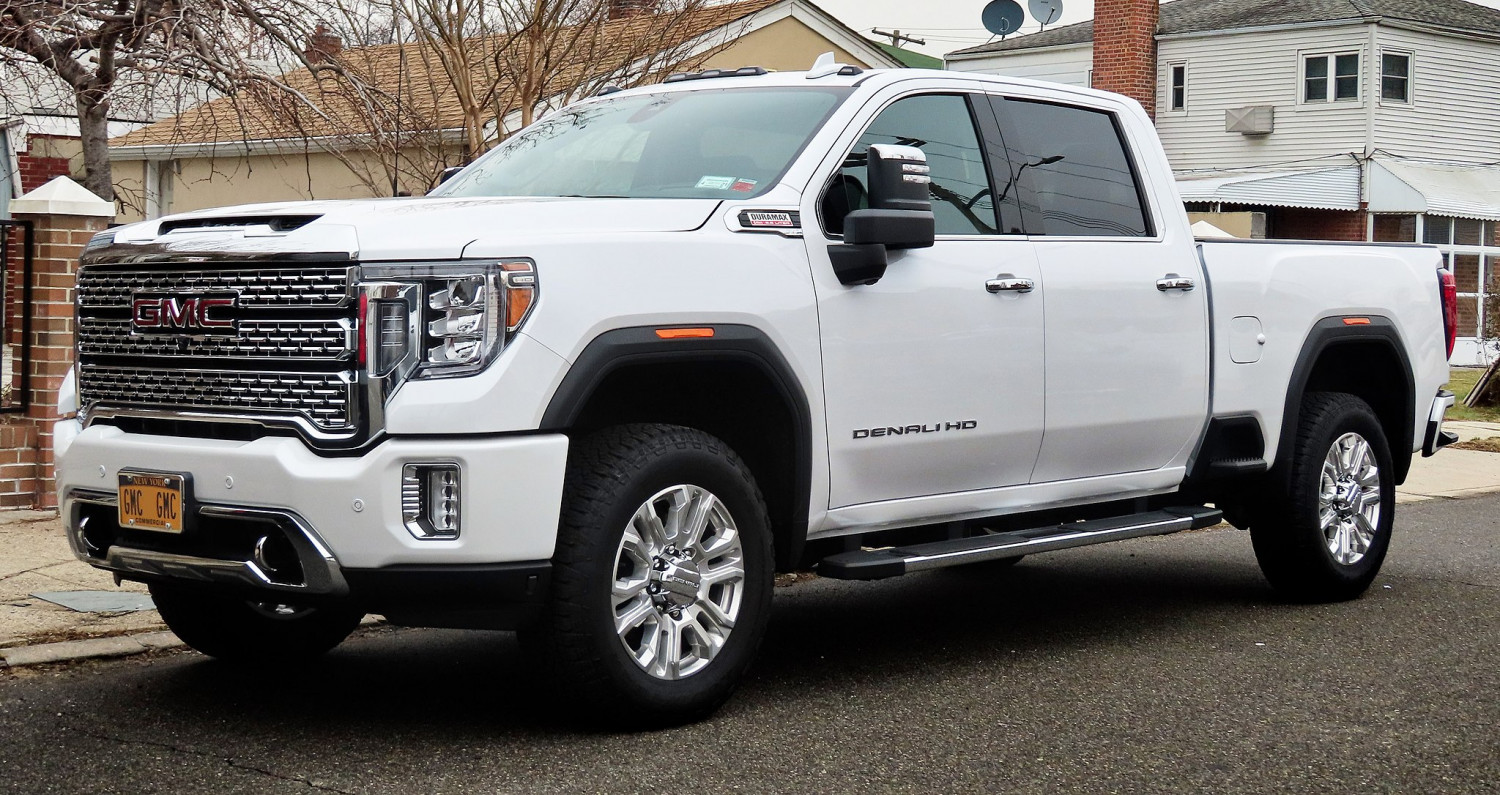

Bull-Doser, Public domain, via Wikimedia Commons

Below you'll find the tightening torques for the GMC Sierra 4 in both Nm and ft/lbs. The first table contains the most-used torque settings. The tables after it contain all torque spec values I could find.

Most-used torque settings for GMC Sierra 4

Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Oil pan Oil pan drain plug 25 18
  • 6.2L Engine
  • L86
 unverified source
Belt tensioner/Timing chains Drive belt tensioner bolt 58 43
  • 6.2L Engine
  • L86
 unverified source
Wheels Wheel nut 190 140
unverified source

Are these torque settings right for you?

  • Production years: 2014 - 2018
  • Generation: 4
  • Type of van: pickup
  • Model variant: Base
  • Also known as: Chevrolet Cheyenne VIA Vtrux Truck Chevrolet Silverado LD Chevrolet Silverado 3

All Torque Settings in Tables

engine torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Oil pan Oil pan to Rear housing bolt 12 9
  • 6.2L Engine
  • L86
 unverified source
Oil pan Oil pan to Engine block bolt 25 18
  • 6.2L Engine
  • L86
 unverified source
Oil pan Lower oil pan to Upper oil pan bolt 10 7
  • 6.2L Engine
  • L86
 unverified source
Oil pan Oil pan drain plug 25 18
  • 6.2L Engine
  • L86
 unverified source
Oil pan Oil pan baffle 11 8
  • Model 1500
  • 6.2L Engine
 unverified source
Oil pan Oil pan cover bolt 10 7
  • 6.2L Engine
  • L86
 unverified source
Oil filter Oil filter fitting 55 41
  • 6.2L Engine
  • L86
 unverified source
Oil pressure sensor Engine oil pressure sensor 35 26
  • 6.2L Engine
  • L86
 unverified source
Oil dipstick Oil level indicator tube bolt 10 7
  • 6.2L Engine
  • L86
 unverified source
Oil pump Oil pump to Engine block bolt 25 18
  • 6.2L Engine
  • L86
 unverified source
Oil pump Oil pump screen bolt 10 7
  • 6.2L Engine
  • L86
 unverified source
Oil pump Oil pickup tube to Block 24 18
  • Model 1500
  • 6.2L Engine
 unverified source
Vacuum pump Vacuum pump bolt 25 18
  • 6.2L Engine
  • L86
 unverified source
Piston rods Connecting rod bolt 20 15 First pass
  • 6.2L Engine
  • L86
 unverified source
Cylinder head Cylinder head bolts 80 59 Internal hex
  • 6.2L Engine
  • L86
 unverified source
Cylinder head Cylinder head bolts 80 59 Standard hex
  • 6.2L Engine
  • L86
 unverified source
Spark plugs Spark plug 20 15
  • 6.2L Engine
  • L86
 unverified source
Intake manifold Intake manifold bolt 5 4 First pass
  • 6.2L Engine
  • L86
 unverified source
Intake manifold Intake manifold bolt 10 7 Final pass
  • 6.2L Engine
  • L86
 unverified source
Intake manifold Intake manifold cover stud 5 4
  • 6.2L Engine
  • L86
 unverified source
Intake manifold Intake manifold cover bolt 5 4
  • 6.2L Engine
  • L86
 unverified source
Throttle body Throttle body assembly fastener 10 7
  • 6.2L Engine
  • L86
 unverified source
Engine block Engine block coolant drain hole plug 60 44
  • 6.2L Engine
  • L86
 unverified source
Engine block Engine block oil galley plug 30 22
  • 6.2L Engine
  • L86
 unverified source
Engine block Valley cover bolt 25 18
  • 6.2L Engine
  • L86
 unverified source
Engine block Positive crankcase ventilation valve 6 4
  • 6.2L Engine
  • L86
 unverified source
Engine block Bell housing bolts 47 35
  • Model 1500
  • 6.2L Engine
 unverified source
Engine mount Engine mount to Engine block bolts 65 48
  • 6.2L Engine
  • L86
 unverified source
Engine mount Engine mount to Frame bolts 50 37
  • 6.2L Engine
  • L86
 unverified source
Sensor Engine oil level and temperature sensor bolt 10 7
  • 6.2L Engine
  • L86
 unverified source
Sensor Crankshaft position sensor fastener 25 18
  • 6.2L Engine
  • L86
 unverified source
Sensor Camshaft position sensor bracket fasteners 25 18
  • 6.2L Engine
  • L86
 unverified source
Sensor Engine coolant temperature sensor 20 15
  • 6.2L Engine
  • L86
 unverified source
Sensor Mass airflow sensor 2 1
  • 6.2L Engine
  • L86
 unverified source
Sensor Manifold absolute pressure sensor 5 4
  • 6.2L Engine
  • L86
 unverified source
Sensor Heated oxygen sensor 42 31
  • 6.2L Engine
  • L86
 unverified source
Sensor Fuel pressure sensor 15 11
  • 6.2L Engine
  • L86
 unverified source
Sensor Fuel injection fuel rail fuel pressure sensor 33 24
  • 6.2L Engine
  • L86
 unverified source
Sensor Knock sensor fastener 25 18
  • 6.2L Engine
  • L86
 unverified source
Sensor Knock sensor shield fastener 25 18
  • 6.2L Engine
  • L86
 unverified source
Battery Ignition coil fasteners 10 7
  • 6.2L Engine
  • L86
 unverified source
Battery Ignition coil module 11 8
  • Model 1500
  • 6.2L Engine
 unverified source
Camshaft Camshaft timing sprocket 35 26
  • Model 1500
  • 6.2L Engine
 unverified source
Camshaft Camshaft retainer bolt 15 11 TORX head bolt
  • 6.2L Engine
  • L86
 unverified source
Camshaft Camshaft position actuator solenoid valve 65 48 First pass
  • 6.2L Engine
  • L86
 unverified source
Camshaft Camshaft position actuator magnet bolt 10 7
  • 6.2L Engine
  • L86
 unverified source
Crankshaft Crankshaft pulley 50 37
  • Model 1500
  • 6.2L Engine
 unverified source
Crankshaft Crankshaft bearing cap bolt 20 15 Inner bolt, First pass
  • 6.2L Engine
  • L86
 unverified source
Crankshaft Crankshaft bearing cap bolt 20 15 Outer bolt, First pass
  • 6.2L Engine
  • L86
 unverified source
Crankshaft Crankshaft bearing cap bolt 25 18 Side bolt, First pass
  • 6.2L Engine
  • L86
 unverified source
Crankshaft Crankshaft balancer bolt 120 89 First pass
  • 6.2L Engine
  • L86
 unverified source
Crankshaft Crankshaft balancer bolt 80 59 Third pass
  • 6.2L Engine
  • L86
 unverified source
Crankshaft Crankshaft rear oil seal housing bolt 25 18
  • 6.2L Engine
  • L86
 unverified source
Crankshaft Crankshaft oil deflector bolt 10 7
  • 6.2L Engine
  • L86
 unverified source
Common rail Fuel injection fuel rail bolt 25 18
  • 6.2L Engine
  • L86
 unverified source
Common rail Fuel injection fuel rail crossover pipe bolt 25 18
  • 6.2L Engine
  • L86
 unverified source
Water pump Water pump cover 15 11
  • Model 1500
  • 6.2L Engine
 unverified source
Water pump Water pump impeller bolt 10 7
  • 6.2L Engine
  • L86
 unverified source
Water pump Water inlet housing bolt 10 7
  • 6.2L Engine
  • L86
 unverified source
Fuel/Oil cooler Engine oil cooler adapter 12 9
  • 6.2L Engine
  • L86
 unverified source
Coolant expansion tank Engine coolant manifold bolt 25 18
  • 6.2L Engine
  • L86
 unverified source
Belt tensioner/Timing chains Drive belt tensioner bolt 58 43
  • 6.2L Engine
  • L86
 unverified source
Belt tensioner/Timing chains Belt idler pulley 50 37
  • Model 1500
  • 6.2L Engine
 unverified source
Belt tensioner/Timing chains Timing cover 24 18
  • Model 1500
  • 6.2L Engine
 unverified source
Valve cover Valve lifter retainer 11 8
  • Model 1500
  • 6.2L Engine
 unverified source
Rocker arm Valve rocker arm bolt 30 22
  • 6.2L Engine
  • L86
 unverified source
Rocker arm Rocker arm 30 22
  • Model 1500
  • 6.2L Engine
 unverified source
Rocker arm Valve rocker arm cover bolts 10 7
  • 6.2L Engine
  • L86
 unverified source
Fuel system Fuel pump power control module fastener 9 7
  • 6.2L Engine
  • L86
 unverified source
Fuel system Fuel pump bolt 25 18
  • 6.2L Engine
  • L86
 unverified source
Fuel system Fuel tank strap bolts 40 30 26gal tank
  • 6.2L Engine
  • L86
 unverified source
Fuel system Fuel tank strap bolts 40 30 34gal tank
  • 6.2L Engine
  • L86
 unverified source
Fuel system Fuel tank strap bolts 40 30 34gal tank
  • 6.2L Engine
  • L86
 unverified source
Fuel system Fuel tank strap bolts 40 30 26gal tank
  • 6.2L Engine
  • L86
 unverified source
Fuel system Fuel tank strap bolts 40 30 26gal tank
  • 6.2L Engine
  • L86
 unverified source
Fuel system Fuel tank shield bolts 12 9 34gal tank
  • 6.2L Engine
  • L86
 unverified source
Fuel system Fuel tank shield bolts 12 9 34gal tank
  • 6.2L Engine
  • L86
 unverified source
Fuel system Fuel tank filler hose clamp 4 3
  • 6.2L Engine
  • L86
 unverified source
Fuel system Fuel tank fill pipe clamp 4 3
  • 6.2L Engine
  • L86
 unverified source
Fuel system Fuel tank fill pipe ground wire bolt 9 7
  • 6.2L Engine
  • L86
 unverified source
Fuel system Fuel tank fill pipe ground wire bolt 9 7
  • 6.2L Engine
  • L86
 unverified source
Fuel system Fuel feed pipe fastener 10 7
  • 6.2L Engine
  • L86
 unverified source
Fuel system Fuel feed intermediate pipe fitting 30 22
  • 6.2L Engine
  • L86
 unverified source

drivetrain torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Flywheel/Flex plate Flywheel to Converter 62 46
  • Model 1500
  • 6.2L Engine
 unverified source
Flywheel/Flex plate Flywheel inspection cover bolt 10 7
  • 6.2L Engine
  • L86
 unverified source
Flywheel/Flex plate Automatic transmission flex plate bolt 15 11 First pass
  • 6.2L Engine
  • L86
 unverified source
Flywheel/Flex plate Automatic transmission flex plate bolt 30 22 Second pass
  • 6.2L Engine
  • L86
 unverified source
Flywheel/Flex plate Flex plate to Torque converter fastener 60 44
  • 6.2L Engine
  • L86
 unverified source
Transmission fluid pan Transmission pan 14 10
  • Model 1500
  • 6.2L Engine
 unverified source
Transmission fluid pan Transmission drain plug 20 15
  • Model 1500
  • 6.2L Engine
 unverified source
Transmission fluid pan Transmission to Oil pan bolt 50 37
  • 6.2L Engine
  • L86
 unverified source
Transmission mount/case Transmission to Engine fastener 50 37
  • 6.2L Engine
  • L86
 unverified source
Drive/Axle shaft Front wheel axle nut 240 177
  • Model 1500
  • 6.2L Engine
 unverified source
Drive/Axle shaft Rear axle U-bolts 100 74
  • Model 1500
  • 6.2L Engine
 unverified source
Drive/Axle shaft Rear axle backing plate 41 30
  • Model 1500
  • 6.2L Engine
 unverified source

steering torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Power steering Power steering pump 24 18
  • Model 1500
  • 6.2L Engine
 unverified source
Power steering Power steering pump pulley 24 18
  • Model 1500
  • 6.2L Engine
 unverified source

exhaust torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Exhaust manifold Exhaust manifold to Pipe 35 26
  • Model 1500
  • 6.2L Engine
 unverified source
EGR EGR pipe 30 22
  • Model 1500
  • 6.2L Engine
 unverified source

brakes torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Disc brake Front brake caliper slide bolt 100 74
  • Model 1500
  • 6.2L Engine
 unverified source
Disc brake Rear brake caliper slide bolt 52 38
  • Model 1500
  • 6.2L Engine
 unverified source
Disc brake Front caliper bracket 230 170
  • Model 1500
  • 6.2L Engine
 unverified source
Disc brake Rear caliper bracket 201 148
  • Model 1500
  • 6.2L Engine
 unverified source
Disc brake Front caliper banjo bolt 41 30
  • Model 1500
  • 6.2L Engine
 unverified source
Disc brake Rear caliper banjo bolt 41 30
  • Model 1500
  • 6.2L Engine
 unverified source
Brake pedal Accelerator pedal bolts 9 7
  • 6.2L Engine
  • L86
 unverified source

suspension torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Struts Front strut upper nuts 50 37
  • Model 1500
  • 6.2L Engine
 unverified source
Struts Front strut lower bolts 50 37
  • Model 1500
  • 6.2L Engine
 unverified source

general torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to

Did you find the answer to your specific question?
👍 8 👎 13

Related Vans:
