Toyota Tacoma 3 (2016-2023) Torque Spec Settings

Researched by Wan Wei Tay
Updated: February 17, 2024

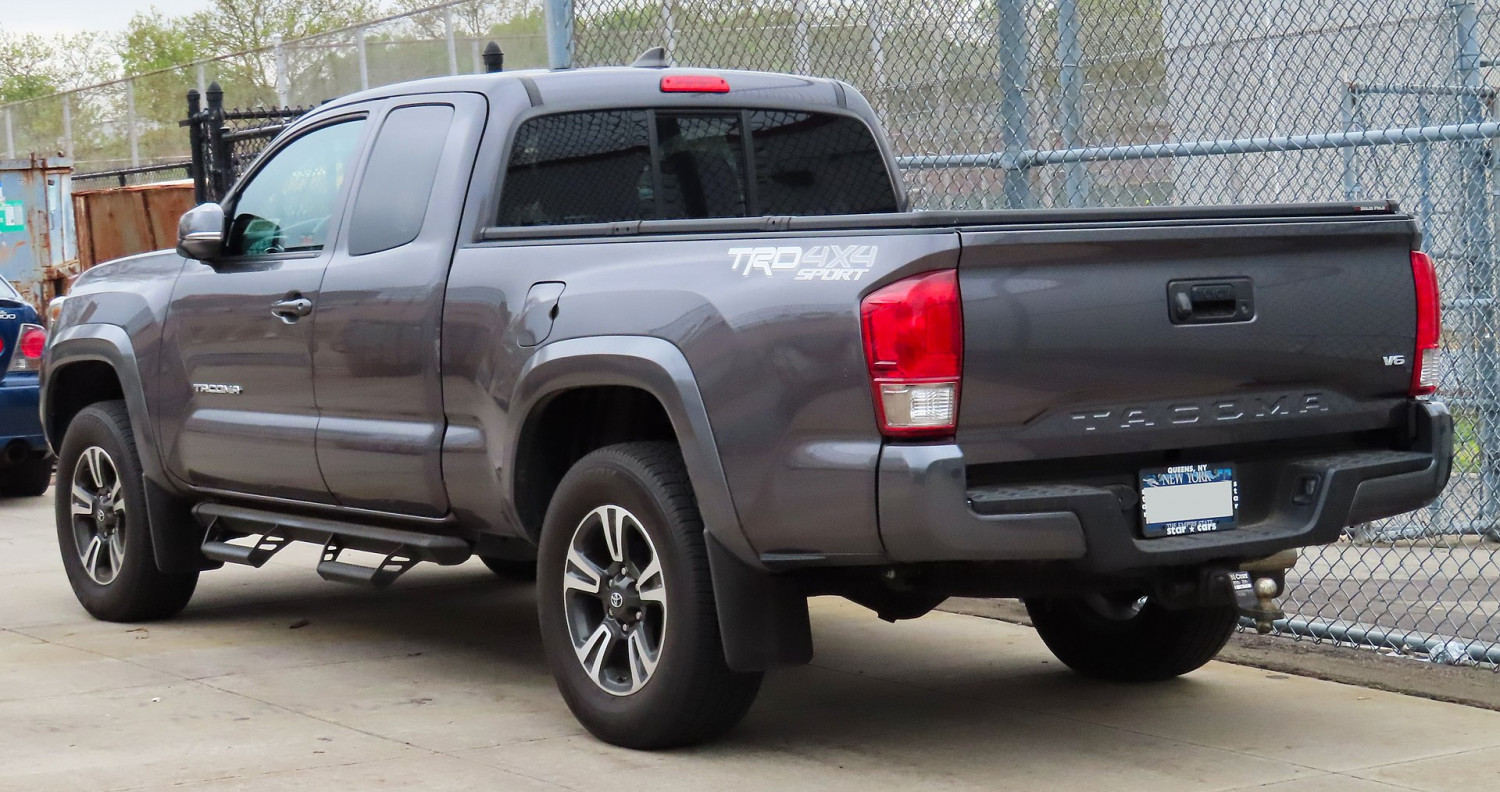

By Kevauto - Own work, CC BY-SA 4.0

Below you'll find the tightening torques for the Toyota Tacoma 3 in both Nm and ft/lbs. The first table contains the most-used torque settings. The tables after it contain all torque spec values I could find.

Most-used torque specs for Toyota Tacoma 3

Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to

Are these torque settings right for you?

  • Production years: 2016 - 2023
  • Generation: 3
  • Type of van: pickup
  • Model variant: Base

All Torque Settings in Tables

engine torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Oil pan Oil pan drain plug to No.2 oil pan sub-assembly 40 30
  • 2GR-FKS
verified source
Oil pan Oil pan drain plug to No.2 oil pan sub-assembly 38 28
  • 2TR-FE
verified source
Oil pan Oil pan sub-assembly stud bolt 4 3 Stud bolts A and B
  • 2GR-FKS
verified source
Oil pan Oil pan sub-assembly stud bolt 10 7 Stud bolt C
  • 2GR-FKS
verified source
Oil pan Oil pan sub-assembly to Cylinder block 26 19
  • 2TR-FE
verified source
Oil pan Oil pan sub-assembly to Cylinder block sub-assembly bolt 10 7 Bolt A
  • 2GR-FKS
verified source
Oil pan Oil pan sub-assembly to Cylinder block sub-assembly bolt and nut 21 15 Bolts B, C, E and nut D
  • 2GR-FKS
verified source
Oil pan Oil pan sub-assembly to No.2 oil pan sub-assembly 10 7
  • 2GR-FKS
verified source
Oil pan No.2 oil pan sub-assembly to Oil pan sub-assembly 9 7
  • 2TR-FE
verified source
Oil pan Oil pan stud bolt 3 2
  • 2TR-FE
verified source
Oil pan Oil pan cover silencer to No.2 oil pan sub-assembly 7 5
  • 2TR-FE
verified source
Oil pan No.1 oil pan baffle plate to Cylinder block sub-assembly 10 7
  • 2GR-FKS
verified source
Oil filter Oil filter cap assembly to Oil filter bracket 25 18
  • 2GR-FKS
verified source
Oil filter Oil filter to Oil filter bracket 17 13
  • 2TR-FE
verified source
Oil filter Oil filter bracket to Timing chain cover 21 15
  • 2GR-FKS
verified source
Oil filter Oil filter bracket to Cylinder block 25 18
  • 2TR-FE
verified source
Oil filter Oil filter bracket to Screw plug 49 36
  • 2TR-FE
verified source
Oil filter Oil filter union to Oil filter bracket 43 32
  • 2TR-FE
verified source
Oil filter Oil filter bracket union to Cylinder block 25 18
  • 2TR-FE
verified source
Oil filter Oil filter drain plug to Oil filter cap assembly 13 10
  • 2GR-FKS
verified source
Oil filter Oil filter stud bolt to Cylinder head cover sub-assembly LH 4 3
  • 2GR-FKS
verified source
Oil filter Oil pan sub-assembly to Oil strainer sub-assembly 10 7
  • 2GR-FKS
verified source
Oil filter Oil strainer sub-assembly to Oil pan sub-assembly 10 7
  • 2TR-FE
verified source
Oil pressure switch Engine oil pressure switch to Oil filter bracket 15 11
  • 2GR-FKS
verified source
Oil pressure switch Engine oil pressure switch to Cylinder block 15 11
  • 2TR-FE
verified source
Oil dipstick Oil level dipstick guide to Timing chain cover 10 7
  • 2GR-FKS
verified source
Oil dipstick Oil level dipstick guide to Front no.1 engine mounting bracket 20 15
  • 2TR-FE
verified source
Oil dipstick Engine oil level sensor bracket to Oil pan sub-assembly 10 7
  • 2GR-FKS
verified source
Oil feeder Oil filler cap housing to Cylinder head cover sub-assembly LH 10 7
  • 2GR-FKS
verified source
Oil pump Oil pump cover to Timing chain cover 9 7
  • 2GR-FKS
verified source
Oil pump Oil pump cover to Timing chain cover bolt 9 7
  • 2TR-FE
verified source
Oil pump Oil pump cover to Timing chain cover screw 10 7
  • 2TR-FE
verified source
Oil pump Oil pump relief valve plug to Oil pump cover 49 36
  • 2GR-FKS
verified source
Oil pump Oil pump relief valve plug to Timing chain cover 49 36
  • 2TR-FE
verified source
Oil pump Oil pump assembly to Automatic transmission case sub-assembly 21 15
  • AC60E Automatic Transmission
verified source
Oil pump Oil pump assembly to Automatic transmission case sub-assembly 21 15
  • AC60F Automatic Transmission
verified source
Oil pump Front oil pump plate to Stator shaft assembly 11 8
  • AC60E Automatic Transmission
verified source
Oil pump Front oil pump plate to Stator shaft assembly 11 8
  • AC60F Automatic Transmission
verified source
Oil pump Stator shaft assembly to Front oil pump body sub-assembly 11 8
  • AC60E Automatic Transmission
verified source
Oil pump Stator shaft assembly to Front oil pump body sub-assembly 11 8
  • AC60F Automatic Transmission
verified source
Vacuum pump Vacuum pump hole cover bracket to Cylinder head 21 15
  • 2GR-FKS
verified source
Piston rods Connecting rod cap to Connecting rod 25 18 Step 1
  • 2GR-FKS
verified source
Piston rods Connecting rod to Connecting rod cap 25 18 Step 1
  • 2TR-FE
verified source
Cylinder head Cylinder head LH to Cylinder block sub-assembly 36 27 Recessed head, Step 1
  • 2GR-FKS
verified source
Cylinder head Cylinder head LH to Cylinder block sub-assembly 30 22 14mm head
  • 2GR-FKS
verified source
Cylinder head Cylinder head sub-assembly to Cylinder block sub-assembly 36 27 Step 1
  • 2GR-FKS
verified source
Cylinder head Cylinder head to Cylinder block 39 29 Step 1
  • 2TR-FE
verified source
Cylinder head Cylinder head stud bolt 10 7 Bolts A and B
  • 2GR-FKS
verified source
Cylinder head Cylinder head stud bolt 4 3 Bolt C
  • 2GR-FKS
verified source
Cylinder head Union to Cylinder head 15 11
  • 2GR-FKS
verified source
Cylinder head No.1 straight screw plug to Cylinder head 44 32
  • 2GR-FKS
verified source
Cylinder head No.1 head straight screw plug to Cylinder head 44 32
  • 2TR-FE
verified source
Cylinder head No.2 straight screw plug to Cylinder head 80 59
  • 2GR-FKS
verified source
Cylinder head No.2 head straight screw plug to Cylinder head 140 103
  • 2TR-FE
verified source
Cylinder head No.3 straight screw plug to Cylinder head 44 32
  • 2GR-FKS
verified source
Cylinder head Air cleaner assembly to Cylinder head cover sub-assembly 8 6
  • 2GR-FKS
verified source
Cylinder head Engine wire to Cylinder head cover sub-assembly 8 6 Port injection
  • 2GR-FKS
verified source
Cylinder head Engine wire to Cylinder head bolt 19 14 Bolt A
  • 2TR-FE
verified source
Cylinder head Engine wire to Cylinder head bolt 14 10 Bolt B
  • 2TR-FE
verified source
Cylinder head Cylinder head cover sub-assembly to Cylinder head assembly 9 7
  • 2TR-FE
verified source
Spark plugs Spark plug to Cylinder head sub-assembly 18 13
  • 2GR-FKS
verified source
Spark plugs Spark plug to Cylinder head 18 13
  • 2TR-FE
verified source
Intake manifold Intake manifold to Cylinder head sub-assembly 21 15
  • 2GR-FKS
verified source
Intake manifold Intake manifold to Cylinder block sub-assembly 25 18
  • 2TR-FE
verified source
Intake manifold Intake air surge tank assembly to Intake manifold 21 15
  • 2GR-FKS
verified source
Intake manifold Intake pipe insulator to Air switching valve assembly 20 15
  • 2TR-FE
verified source
Intake manifold Intake pipe insulator to Cylinder head sub-assembly 20 15
  • 2TR-FE
verified source
Intake manifold No.1 V-bank cover bracket to Intake air surge tank 10 7
  • 2GR-FKS
verified source
Intake manifold Purge VSV to Intake air surge tank 21 15
  • 2GR-FKS
verified source
Intake manifold Purge VSV to Intake manifold 9 7
  • 2TR-FE
verified source
Intake manifold Air cleaner assembly to Intake air surge tank 8 6
  • 2GR-FKS
verified source
Intake manifold Air pump assembly to Body 18 13
  • 2TR-FE
verified source
Intake manifold No.1 surge tank stay to Cylinder head sub-assembly LH 21 15
  • 2GR-FKS
verified source
Intake manifold No.2 surge tank stay to Cylinder head sub-assembly LH 21 15
  • 2GR-FKS
verified source
Intake manifold Heater hose bracket to Intake manifold 19 14
  • 2TR-FE
verified source
Intake manifold Intake air control valve actuator to Intake air surge tank assembly 6 4
  • 2GR-FKS
verified source
Intake manifold Intake air connector to Intake manifold 8 6
  • 2TR-FE
verified source
Intake manifold Intake air connector to Throttle body with motor assembly 5 4
  • 2TR-FE
verified source
Intake manifold Wiring harness clamp bracket to Intake manifold 8 6
  • 2TR-FE
verified source
Throttle body Throttle body with motor assembly to Intake air surge tank assembly 10 7
  • 2GR-FKS
verified source
Throttle body Throttle body with motor assembly to Intake manifold 10 7
  • 2TR-FE
verified source
Throttle body Throttle body bracket to Intake air surge tank assembly 21 15
  • 2GR-FKS
verified source
Engine block Cylinder block stud bolt 10 7
  • 2GR-FKS
verified source
Engine block Water drain cock plug to Water drain cock 13 10
  • 2GR-FKS
verified source
Engine block Water drain cock plug to Cylinder block water drain cock 13 10
  • 2TR-FE
verified source
Engine block Water drain cock to Cylinder block 25 18
  • 2GR-FKS
verified source
Engine block Cylinder block water drain cock to Cylinder block 25 18
  • 2TR-FE
verified source
Engine block Oil seal retainer to Cylinder block 10 7
  • 2GR-FKS
verified source
Engine block Engine oil seal retainer to Cylinder block 13 10
  • 2TR-FE
verified source
Engine block No.1 oil nozzle sub-assembly to Cylinder block 9 7
  • 2GR-FKS
verified source
Engine block No.1 oil nozzle to Cylinder block 7 5
  • 2TR-FE
verified source
Engine block No.1 water oulet pipe to Cylinder block 10 7
  • 2GR-FKS
verified source
Engine block No.1 chain vibration damper to Cylinder head LH and cylinder block 23 17
  • 2GR-FKS
verified source
Engine block No.1 chain vibration damper to Cylinder head assembly and cylinder block 21 15
  • 2TR-FE
verified source
Engine block No.2 chain vibration damper to Cylinder block 27 20
  • 2TR-FE
verified source
Engine block No.3 chain vibration damper to Cylinder block 18 13
  • 2TR-FE
verified source
Engine block No.4 chain vibration damper to Cylinder block 18 13
  • 2TR-FE
verified source
Engine block Idle sprocket assembly to Cylinder block 60 44
  • 2GR-FKS
verified source
Engine block No.1 compressor mounting bracket to Cylinder block 43 32
  • 2GR-FKS
verified source
Engine block No.1 compressor mounting bracket to Engine assembly 43 32 Bolt A
  • 2TR-FE
verified source
Engine block No.1 compressor mounting bracket to Engine assembly 43 32 Bolt B
  • 2TR-FE
verified source
Engine block No.1 compressor mounting bracket to Engine assembly 21 15 Bolt C
  • 2TR-FE
verified source
Engine block PCV valve to Cylinder head cover sub-assembly LH 5 4
  • 2GR-FKS
verified source
Engine mounts Front no.1 engine mounting bracket LH to Cylinder block 43 32
  • 2GR-FKS
verified source
Engine mounts Front no.1 engine mounting bracket RH to Cylinder block 43 32
  • 2GR-FKS
verified source
Engine mounts No.1 engine mounting bracket to Cylinder block 51 38
  • 2TR-FE
verified source
Engine mounts Front no.1 engine mounting bracket to Body 50 37
  • 2TR-FE
verified source
Engine mounts Engine mount insulator to Engine mount bracket 72 53
  • 2GR-FKS
verified source
Engine mounts Engine mount insulator to Body 50 37
  • 2GR-FKS
verified source
Engine mounts Engine hanger to Engine 33 24
  • 2GR-FKS
verified source
Engine mounts No.1 engine hanger to Cylinder head 42 31
  • 2TR-FE
verified source
Engine mounts No.1 engine cover sub-assembly to Cylinder head cover sub-assembly LH 10 7
  • 2GR-FKS
verified source
Engine mounts No.1 engine under cover sub-assembly to Vehicle 30 22
  • 2GR-FKS
verified source
Engine mounts No.1 engine under cover to Body 30 22
  • 2TR-FE
verified source
Engine mounts No.2 engine under cover sub-assembly to Vehicle 30 22
  • 2GR-FKS
verified source
Engine mounts Vane pump assembly to Engine 21 15
  • 2GR-FKS
verified source
Sensor Camshaft position sensor to Timing chain cover sub-assembly 10 7 For intake side
  • 2TR-FE
verified source
Sensor Camshaft position sensor to Cylinder head cover sub-assembly 10 7 For exhaust side
  • 2TR-FE
verified source
Sensor Crankshaft position sensor to Timing chain cover sub-assembly 9 7
  • 2TR-FE
verified source
Sensor Crank position sensor to Cylinder block sub-assembly 10 7
  • 2GR-FKS
verified source
Sensor Engine coolant temperature sensor to Cylinder block 20 15
  • 2GR-FKS
verified source
Sensor Engine coolant temperature sensor to Cylinder block 20 15
  • 2TR-FE
verified source
Sensor Knock sensor to Cylinder block sub-assembly 20 15
  • 2GR-FKS
verified source
Sensor Knock sensor to Cylinder block sub-assembly 20 15
  • 2TR-FE
verified source
Sensor Air fuel ratio sensor to Exhaust manifold sub-assembly 44 32
  • 2GR-FKS
verified source
Sensor Air fuel ratio sensor to Front exhaust pipe assembly 44 32
  • 2TR-FE
verified source
Sensor VVT sensor to Cylinder head cover sub-assembly 8 6
  • 2GR-FKS
verified source
Sensor Engine oil level sensor to Oil level sensor bracket 10 7
  • 2GR-FKS
verified source
Sensor Heated oxygen sensor to Tail exhaust pipe assembly 44 32
  • 2TR-FE
verified source
Sensor Temperature sensor clamp to Transmission valve body assembly 10 7 Bolt A
  • AC60E Automatic Transmission
verified source
Sensor Temperature sensor clamp to Transmission valve body assembly 11 8 Bolt B
  • AC60E Automatic Transmission
verified source
Sensor Temperature sensor clamp to Transmission valve body assembly 10 7 Bolt A
  • AC60F Automatic Transmission
verified source
Sensor Temperature sensor clamp to Transmission valve body assembly 11 8 Bolt B
  • AC60F Automatic Transmission
verified source
Sensor Transmission revolution sensor to Automatic transmission assembly 5 4 NT
  • AC60E Automatic Transmission
verified source
Sensor Transmission revolution sensor to Automatic transmission assembly 5 4 NT
  • AC60F Automatic Transmission
verified source
Sensor Transmission revolution sensor to Automatic transmission assembly 5 4 SP2
  • AC60E Automatic Transmission
verified source
Sensor Transmission revolution sensor to Automatic transmission assembly 5 4 SP2
  • AC60F Automatic Transmission
verified source
Alternator Generator assembly to V-ribbed belt tensioner and cylinder head 43 32
  • 2GR-FKS
verified source
Alternator Generator assembly to Timing chain cover 43 32
  • 2TR-FE
verified source
Alternator Generator assembly to Wire harness clamp bracket 8 6
  • 2GR-FKS
verified source
Alternator Generator assembly to Engine wire 10 7
  • 2TR-FE
verified source
Alternator Generator assembly to Terminal B 10 7
  • 2GR-FKS
verified source
Alternator Generator assembly to Generator bracket 20 15
  • 2GR-FKS
verified source
Alternator Cylinder block to Generator bracket 20 15
  • 2GR-FKS
verified source
Alternator Retainer plate to Drive end frame assembly generator 2 1
  • 2GR-FKS
verified source
Alternator Retainer plate to Generator drive end frame 2 1
  • 2TR-FE
verified source
Alternator Generator coil assembly to Drive end frame assembly generator 6 4
  • 2GR-FKS
verified source
Alternator Generator coil assembly to Generator drive end frame 6 4
  • 2TR-FE
verified source
Alternator Generator brush holder assembly to Generator coil assembly 2 1
  • 2GR-FKS
verified source
Alternator Generator brush holder assembly to Generator rectifier end frame 2 1
  • 2TR-FE
verified source
Alternator Generator rear end cover to Generator coil assembly 5 4
  • 2GR-FKS
verified source
Alternator Rear end cover to Generator rectifier end frame 5 4
  • 2TR-FE
verified source
Alternator Generator pulley to Generator rotor assembly 133 98
  • 2GR-FKS
verified source
Alternator Generator pulley with clutch to Generator rotor assembly 80 59
  • 2TR-FE
verified source
Starter Starter assembly to Transmission housing 37 27
  • 2GR-FKS
verified source
Starter Starter assembly to Transmission housing assembly 37 27
  • 2TR-FE
verified source
Starter Starter assembly to Terminal 30 10 7
  • 2GR-FKS
verified source
Starter Starter cover to Starter assembly 12 9
  • 2GR-FKS
verified source
Starter Starter drive housing assembly to Magnetic starter switch assembly 6 4
  • 2GR-FKS
verified source
Starter Starter yoke assembly to Magnet starter switch assembly 6 4
  • 2GR-FKS
verified source
Starter Commutator end frame to Brush holder assembly 2 1
  • 2GR-FKS
verified source
Starter Lead wire to Terminal C 6 4
  • 2GR-FKS
verified source
Starter Lead wire to Terminal C 10 7
  • 2TR-FE
verified source
Starter Engine wire to Starter assembly 8 6
  • 2GR-FKS
verified source
Starter Starter wire to Starter assembly 10 7
  • 2TR-FE
verified source
Battery Battery hold down clamp to Body 5 4
  • 2GR-FKS
verified source
Battery Negative battery terminal to Battery 5 4
  • 2GR-FKS
verified source
Battery Negative battery terminal to Battery 5 4
  • 2TR-FE
verified source
Battery Ignition coil to Cylinder head cover 10 7
  • 2GR-FKS
verified source
Battery Ignition coil assembly to Cylinder head cover sub-assembly 9 7
  • 2TR-FE
verified source
Camshaft Camshaft timing gear bolt 120 89
  • 2GR-FKS
verified source
Camshaft Camshaft timing gear to Camshaft 78 58
  • 2TR-FE
verified source
Camshaft Camshaft housing LH to Cylinder head LH bolt 28 21 Bolt A
  • 2GR-FKS
verified source
Camshaft Camshaft housing LH to Cylinder head LH bolt 16 12 Bolt B
  • 2GR-FKS
verified source
Camshaft Camshaft housing RH to Cylinder head sub-assembly bolt 28 21 Bolt A
  • 2GR-FKS
verified source
Camshaft Camshaft housing RH to Cylinder head sub-assembly bolt 16 12 Bolt B
  • 2GR-FKS
verified source
Camshaft Camshaft bearing cap (for bank 1) to Camshaft housing RH 10 7 Step 1
  • 2GR-FKS
verified source
Camshaft Camshaft bearing cap (for bank 1) to Camshaft housing RH 16 12 Step 2
  • 2GR-FKS
verified source
Camshaft Camshaft bearing cap (for bank 2) to Camshaft housing LH 10 7 Step 1
  • 2GR-FKS
verified source
Camshaft Camshaft bearing cap (for bank 2) to Camshaft housing LH 16 12 Step 2
  • 2GR-FKS
verified source
Camshaft Camshaft bearing cap to Cylinder head 16 12
  • 2TR-FE
verified source
Camshaft Cylinder head cover connector sub-assembly to Camshaft bearing cap 10 7
  • 2TR-FE
verified source
Camshaft Camshaft timing oil control solenoid assembly to Timing chain cover assembly 10 7
  • 2GR-FKS
verified source
Camshaft Camshaft timing oil control valve assembly to Cylinder head sub-assembly 9 7
  • 2TR-FE
verified source
Crankshaft Main bearing cap to Cylinder block 61 45 16 point head, Step 1
  • 2GR-FKS
verified source
Crankshaft Main bearing cap to Cylinder block 26 19 12mm head
  • 2GR-FKS
verified source
Crankshaft Crankshaft to Cylinder block 39 29 Step 1
  • 2TR-FE
verified source
Crankshaft Crankshaft pulley to Crankshaft 260 192
  • 2GR-FKS
verified source
Crankshaft Crankshaft pulley to Crankshaft 260 192
  • 2TR-FE
verified source
Crankshaft No.1 balanceshaft to Cylinder block 18 13
  • 2TR-FE
verified source
Crankshaft No.2 balanceshaft to Cylinder block 18 13
  • 2TR-FE
verified source
Crankshaft No.1 balanceshaft driven gear to No.1 balanceshaft 36 27
  • 2TR-FE
verified source
Crankshaft No.2 balanceshaft driven gear to No.2 balanceshaft 36 27
  • 2TR-FE
verified source
Crankshaft Balanceshaft drive gear to Cylinder block 25 18
  • 2TR-FE
verified source
Water pump Engine water pump assembly to Timing chain cover assembly bolt 11 8 Bolt A
  • 2GR-FKS
verified source
Water pump Engine water pump assembly to Timing chain cover assembly bolt 11 8 Bolt B
  • 2GR-FKS
verified source
Water pump Engine water pump assembly to Timing chain cover assembly bolt 21 15 Bolt C
  • 2GR-FKS
verified source
Water pump Engine water pump assembly to Timing chain cover assembly bolt 43 32 Bolt D
  • 2GR-FKS
verified source
Water pump Engine water pump assembly to Timing chain cover 9 7
  • 2TR-FE
verified source
Water pump Water pump assembly to Timing chain cover bolt 25 18 Bolt A
  • 2TR-FE
verified source
Water pump Water pump assembly to Timing chain cover bolt 9 7 Bolt B
  • 2TR-FE
verified source
Water pump Fan with fluid coupling to Engine water pump assembly 21 15
  • 2GR-FKS
verified source
Water pump Fan with fluid coupling to Water pump assembly 25 18
  • 2TR-FE
verified source
Heater core Expansion valve to Evaporator core 7 5
verified source
Fuel/Oil cooler Oil cooler tube to Oil pan 14 10
  • 2GR-FKS
verified source
Fuel/Oil cooler Oil cooler assembly to Oil filter bracket 21 15
  • 2GR-FKS
verified source
Fuel/Oil cooler Oil cooler assembly to Body 6 4
  • 2GR-FKS
  • AC60E Automatic Transmission
verified source
Fuel/Oil cooler Oil cooler assembly to Body 6 4
  • 2TR-FE
  • AC60F Automatic Transmission
verified source
Fuel/Oil cooler Oil cooler bracket to Oil cooler assembly 6 4
  • 2GR-FKS
  • AC60E Automatic Transmission
verified source
Fuel/Oil cooler Oil cooler bracket to Oil cooler assembly 6 4
  • 2TR-FE
  • AC60F Automatic Transmission
verified source
Fuel/Oil cooler Oil cooler tube to Body 28 21
  • 2GR-FKS
  • AC60E Automatic Transmission
verified source
Fuel/Oil cooler Oil cooler tube to Body 28 21
  • 2TR-FE
  • AC60E Automatic Transmission
verified source
Fuel/Oil cooler Oil cooler tube to Body 28 21
  • 2GR-FKS
  • AC60F Automatic Transmission
verified source
Fuel/Oil cooler Oil cooler tube to Body 28 21
  • 2TR-FE
  • AC60F Automatic Transmission
verified source
Fuel/Oil cooler Oil cooler tube clamp to Automatic transmission assembly 14 10
  • 2GR-FKS
  • AC60E Automatic Transmission
verified source
Fuel/Oil cooler Oil cooler tube clamp to Automatic transmission assembly 14 10
  • 2GR-FKS
  • AC60F Automatic Transmission
verified source
Fuel/Oil cooler Oil cooler tube clamp to Engine assembly 14 10
  • 2GR-FKS
  • AC60E Automatic Transmission
verified source
Fuel/Oil cooler Oil cooler tube clamp to Engine assembly 14 10
  • 2GR-FKS
  • AC60F Automatic Transmission
verified source
Fuel/Oil cooler Oil cooler tube clamp to Engine assembly bolt 14 10 Bolt A
  • 2TR-FE
  • AC60E Automatic Transmission
verified source
Fuel/Oil cooler Oil cooler tube clamp to Engine assembly bolt 28 21 Bolt B
  • 2TR-FE
  • AC60E Automatic Transmission
verified source
Fuel/Oil cooler Oil cooler tube clamp to Engine assembly bolt 14 10 Bolt A
  • 2TR-FE
  • AC60F Automatic Transmission
verified source
Fuel/Oil cooler Oil cooler tube clamp to Engine assembly bolt 28 21 Bolt B
  • 2TR-FE
  • AC60F Automatic Transmission
verified source
Fuel/Oil cooler Oil cooler tube clamp to Oil cooler tube clamp 6 4
  • 2TR-FE
  • AC60E Automatic Transmission
verified source
Fuel/Oil cooler Oil cooler tube clamp to Oil cooler tube clamp 6 4
  • 2TR-FE
  • AC60F Automatic Transmission
verified source
Fuel/Oil cooler Oil cooler tube union to Automatic transmission case sub-assembly 31 23 Without SST
  • 2GR-FKS
  • AC60E Automatic Transmission
verified source
Fuel/Oil cooler Oil cooler tube union to Automatic transmission case sub-assembly 26 19 With SST
  • 2GR-FKS
  • AC60E Automatic Transmission
verified source
Fuel/Oil cooler Oil cooler tube union to Automatic transmission case sub-assembly 29 21 Without SST
  • 2TR-FE
  • AC60E Automatic Transmission
verified source
Fuel/Oil cooler Oil cooler tube union to Automatic transmission case sub-assembly 25 18 With SST
  • 2TR-FE
  • AC60E Automatic Transmission
verified source
Fuel/Oil cooler Oil cooler tube union to Automatic transmission case sub-assembly 31 23 Without SST
  • 2GR-FKS
  • AC60F Automatic Transmission
verified source
Fuel/Oil cooler Oil cooler tube union to Automatic transmission case sub-assembly 26 19 With SST
  • 2GR-FKS
  • AC60F Automatic Transmission
verified source
Fuel/Oil cooler Oil cooler tube union to Automatic transmission case sub-assembly 29 21 Without SST
  • 2TR-FE
  • AC60F Automatic Transmission
verified source
Fuel/Oil cooler Oil cooler tube union to Automatic transmission case sub-assembly 25 18 With SST
  • 2TR-FE
  • AC60F Automatic Transmission
verified source
Fuel/Oil cooler No.1 oil cooler tube sub-assembly to Oil cooler bracket 6 4
  • 2GR-FKS
  • AC60E Automatic Transmission
verified source
Fuel/Oil cooler No.1 oil cooler tube sub-assembly to Oil cooler bracket 6 4
  • 2GR-FKS
  • AC60F Automatic Transmission
verified source
Fuel/Oil cooler No.1 oil cooler inlet tube and No.1 oil cooler outlet tube to Automatic transmission 34 25 Without union nut wrench
  • 2TR-FE
  • AC60E Automatic Transmission
verified source
Fuel/Oil cooler No.1 oil cooler inlet tube and No.1 oil cooler outlet tube to Automatic transmission 29 21 With union nut wrench
  • 2TR-FE
  • AC60E Automatic Transmission
verified source
Fuel/Oil cooler No.1 oil cooler inlet tube and No.1 oil cooler outlet tube to Automatic transmission assembly 34 25 Without union nut wrench
  • 2TR-FE
  • AC60F Automatic Transmission
verified source
Fuel/Oil cooler No.1 oil cooler inlet tube and No.1 oil cooler outlet tube to Automatic transmission assembly 29 21 With union nut wrench
  • 2TR-FE
  • AC60F Automatic Transmission
verified source
Fuel/Oil cooler Flexible hose clamp to Automatic transmission assembly 14 10
  • 2TR-FE
  • AC60E Automatic Transmission
verified source
Fuel/Oil cooler Flexible hose clamp to Automatic transmission assembly 14 10
  • 2TR-FE
  • AC60F Automatic Transmission
verified source
Fuel/Oil cooler Flexible hose clamp to Oil cooler tube clamp 6 4
  • 2GR-FKS
  • AC60E Automatic Transmission
verified source
Fuel/Oil cooler Flexible hose clamp to Oil cooler tube clamp 6 4
  • 2GR-FKS
  • AC60F Automatic Transmission
verified source
Fuel/Oil cooler Transmission oil cooler assembly to Transmission oil thermostat 14 10
  • 2GR-FKS
  • AC60E Automatic Transmission
verified source
Fuel/Oil cooler Transmission oil cooler assembly to Transmission oil thermostat 14 10
  • 2GR-FKS
  • AC60F Automatic Transmission
verified source
Fuel/Oil cooler Transmission oil thermostat to Automatic transmission assembly 21 15
  • 2GR-FKS
  • AC60E Automatic Transmission
verified source
Fuel/Oil cooler Transmission oil thermostat to Automatic transmission assembly 21 15
  • 2GR-FKS
  • AC60F Automatic Transmission
verified source
Radiator Radiator to Radiator support 18 13
  • 2GR-FKS
verified source
Radiator Radiator assembly to Body 18 13
  • 2TR-FE
verified source
Radiator Fan shroud to Radiator 6 4
  • 2GR-FKS
verified source
Radiator Fan shroud to Radiator assembly 6 4
  • 2TR-FE
verified source
Radiator Fluid coupling assembly to Fan 10 7
  • 2TR-FE
verified source
Radiator Water inlet to Timing chain/Belt cover sub-assembly 9 7
  • 2GR-FKS
verified source
Radiator Water inlet to Timing chain cover sub-assembly 28 21
  • 2TR-FE
verified source
Radiator Water outlet to Timing chain cover 21 15
  • 2GR-FKS
verified source
Radiator Water inlet with thermostat to Timing chain cover assembly 10 7
  • 2GR-FKS
verified source
Air conditioning Cooler compressor to No.1 compressor mounting bracket 21 15
  • 2TR-FE
verified source
Belt tensioner/Timing chains No.1 chain tensioner assembly to Cylinder head sub-assembly 10 7
  • 2GR-FKS
verified source
Belt tensioner/Timing chains No.1 chain tensioner assembly to Cylinder head assembly 10 7
  • 2TR-FE
verified source
Belt tensioner/Timing chains No.2 chain tensioner assembly to Camshaft housing RH 21 15
  • 2GR-FKS
verified source
Belt tensioner/Timing chains No.2 chain tensioner assembly to Cylinder block 18 13
  • 2TR-FE
verified source
Belt tensioner/Timing chains No.3 chain tensioner assembly to Camshaft housing LH 21 15
  • 2GR-FKS
verified source
Belt tensioner/Timing chains No.1 idler pulley to Timing chain cover 54 40
  • 2GR-FKS
verified source
Belt tensioner/Timing chains No.1 idler pulley to Timing chain cover sub-assembly 43 32
  • 2TR-FE
verified source
Belt tensioner/Timing chains No.2 idler pulley to Timing chain cover 43 32
  • 2GR-FKS
verified source
Belt tensioner/Timing chains V-ribbed belt tensioner assembly to Cylinder block sub-assembly bolt 40 30 Bolt A
  • 2TR-FE
verified source
Belt tensioner/Timing chains V-ribbed belt tensioner assembly to Cylinder block sub-assembly bolt 23 17 Bolt B
  • 2TR-FE
verified source
Belt tensioner/Timing chains V-ribbed belt tensioner assembly to Timing chain cover 43 32
  • 2GR-FKS
verified source
Belt tensioner/Timing chains Timing chain guide to Cylinder head assembly 10 7
  • 2TR-FE
verified source
Belt tensioner/Timing chains Timing chain cover to Cylinder head and cylinder block bolt and nut 21 15 Bolts A, B and nut
  • 2GR-FKS
verified source
Belt tensioner/Timing chains Timing chain cover to Cylinder head and cylinder block bolt 43 32 Bolts C and D
  • 2GR-FKS
verified source
Belt tensioner/Timing chains Timing chain cover to Cylinder head and cylinder block bolt 57 42 Bolt A
  • 2TR-FE
verified source
Belt tensioner/Timing chains Timing chain cover to Cylinder head and cylinder block bolt and nut 23 17 Bolt B and nut
  • 2TR-FE
verified source
Belt tensioner/Timing chains Timing chain cover to Cylinder head and cylinder block bolt 21 15 Bolt C
  • 2TR-FE
verified source
Belt tensioner/Timing chains Timing chain cover to Cylinder head and cylinder block bolt 25 18 Bolt D
  • 2TR-FE
verified source
Belt tensioner/Timing chains Timing chain cover plate to Timing chain cover sub-assembly 11 8
  • 2GR-FKS
verified source
Belt tensioner/Timing chains Timing chain cover plate to Timing chain cover sub-assembly 9 7
  • 2TR-FE
verified source
Belt tensioner/Timing chains Timing chain cover to Water inlet 20 15
  • 2TR-FE
verified source
Belt tensioner/Timing chains Vane pump to Timing chain cover 21 15
  • 2TR-FE
verified source
Belt tensioner/Timing chains Suction hose to Timing chain cover 8 6
  • 2GR-FKS
verified source
Belt tensioner/Timing chains Suction hose to Timing chain cover 8 6
  • 2TR-FE
verified source
PCM ECM bracket to ECM 3 2
  • 2GR-FKS
verified source
PCM ECM bracket to ECM 3 2
  • 2TR-FE
verified source
PCM No.2 ECM bracket to ECM 3 2
  • 2GR-FKS
verified source
PCM No.2 ECM bracket to ECM 3 2
  • 2TR-FE
verified source
PCM ECM to Body 5 4
  • 2GR-FKS
verified source
PCM No.2 junction block to No.2 ECM bracket 8 6
  • 2GR-FKS
verified source
PCM ECM to Instrument panel reinforcement assembly 5 4
  • 2TR-FE
verified source
Fuel system Fuel delivery pipe to Cylinder head sub-assembly and cylinder head LH 17 13 Port injection
  • 2GR-FKS
verified source
Fuel system Fuel delivery pipe RH to Cylinder head sub-assembly 26 19 Direct injection
  • 2GR-FKS
verified source
Fuel system Fuel delivery pipe to Cylinder head 12 9
  • 2TR-FE
verified source
Fuel system Fuel delivery pipe assembly LH to Cylinder head LH 26 19 Direct injection
  • 2GR-FKS
verified source
Fuel system No.1 fuel pipe sub-assembly to Fuel delivery pipe RH and fuel pump assembly 35 26
  • 2GR-FKS
verified source
Fuel system No.1 fuel pipe sub-assembly to Fuel delivery pipe RH and fuel pump assembly 30 22 For use with union nut wrench
  • 2GR-FKS
verified source
Fuel system No.2 fuel pipe sub-assembly to Fuel delivery pipe RH and fuel delivery pipe assembly LH 35 26 Direct injection
  • 2GR-FKS
verified source
Fuel system No.2 fuel pipe sub-assembly to Fuel delivery pipe RH and fuel delivery pipe assembly LH 30 22 Direct injection, For use with union nut wrench
  • 2GR-FKS
verified source
Fuel system Fuel pipe plug sub-assembly to Fuel delivery pipe assembly LH 10 7
  • 2GR-FKS
verified source
Fuel system Wire harness to Fuel delivery pipe RH 10 7 Direct injection
  • 2GR-FKS
verified source
Fuel system Fuel delivery pipe to Fuel pressure pulsation damper assembly 9 7
  • 2TR-FE
verified source
Fuel system Fuel delivery pipe to Fuel pressure regulator assembly 9 7
  • 2TR-FE
verified source
Fuel system Fuel tube sub-assembly to Cylinder head cover sub-assembly 10 7
  • 2GR-FKS
verified source
Fuel system Fuel pump assembly to Pump housing 26 19
  • 2GR-FKS
verified source
Fuel system Fuel pump control ECU to Body 20 15
  • 2GR-FKS
verified source
Fuel system Fuel tank band to Body 62 46
  • 2GR-FKS
verified source
Fuel system Fuel tank to Body 62 46
  • 2TR-FE
verified source
Fuel system No.1 fuel tank protector sub-assembly to Body 20 15 W/ off road package
  • 2GR-FKS
verified source
Fuel system Fuel tank protector sub-assembly no.1 to Body 20 15 W/ off road package
  • 2TR-FE
verified source

drivetrain torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Flywheel/Flex plate Flywheel sub-assembly to Crankshaft 30 22 Step 1
  • 2GR-FKS
verified source
Flywheel/Flex plate Flywheel to Crankshaft 27 20 Step 1
  • 2TR-FE
  • Manual Transmission
verified source
Flywheel/Flex plate Drive plate and ring gear to Crankshaft 83 61
  • 2GR-FKS
verified source
Flywheel/Flex plate Drive plate and ring gear to Crankshaft 74 55
  • 2TR-FE
  • Automatic Transmission
verified source
Transmission fluid pan Automatic transmission assembly to Engine assembly 37 27 Bolt A
  • 2GR-FKS
  • AC60E Automatic Transmission
verified source
Transmission fluid pan Automatic transmission assembly to Engine assembly 71 52 Bolt B
  • 2GR-FKS
  • AC60E Automatic Transmission
verified source
Transmission fluid pan Automatic transmission assembly to Engine assembly 37 27 Bolt A
  • 2TR-FE
  • AC60E Automatic Transmission
verified source
Transmission fluid pan Automatic transmission assembly to Engine assembly 71 52 Bolt B
  • 2TR-FE
  • AC60E Automatic Transmission
verified source
Transmission fluid pan Automatic transmission assembly to Engine assembly 37 27 Bolt A
  • 2GR-FKS
  • AC60F Automatic Transmission
verified source
Transmission fluid pan Automatic transmission assembly to Engine assembly 71 52 Bolt B
  • 2GR-FKS
  • AC60F Automatic Transmission
verified source
Transmission fluid pan Automatic transmission assembly to Engine assembly 37 27 Bolt A
  • 2TR-FE
  • AC60F Automatic Transmission
verified source
Transmission fluid pan Automatic transmission assembly to Engine assembly 71 52 Bolt B
  • 2TR-FE
  • AC60F Automatic Transmission
verified source
Transmission fluid pan Automatic transmission oil pan sub-assembly to Automatic transmission assembly 7 5
  • AC60E Automatic Transmission
verified source
Transmission fluid pan Automatic transmission oil pan sub-assembly to Automatic transmission assembly 7 5
  • AC60F Automatic Transmission
verified source
Transmission fluid pan Drain plug to Automatic transmission assembly 20 15
  • AC60E Automatic Transmission
verified source
Transmission fluid pan Drain plug to Automatic transmission assembly 20 15
  • AC60F Automatic Transmission
verified source
Transmission fluid pan Overflow plug to Automatic transmission assembly 20 15
  • AC60E Automatic Transmission
verified source
Transmission fluid pan Overflow plug to Automatic transmission assembly 20 15
  • AC60F Automatic Transmission
verified source
Transmission fluid pan Refill plug to Automatic transmission assembly 39 29
  • AC60E Automatic Transmission
verified source
Transmission fluid pan Refill plug to Automatic transmission assembly 39 29
  • AC60F Automatic Transmission
verified source
Transmission fluid pan Transmission breather bracket to Automatic transmissiona assembly 7 5
  • 2GR-FKS
  • AC60E Automatic Transmission
verified source
Transmission fluid pan Transmission breather bracket to Automatic transmissiona assembly 7 5
  • 2TR-FE
  • AC60E Automatic Transmission
verified source
Transmission fluid pan Transmission breather bracket to Automatic transmissiona assembly 7 5
  • 2GR-FKS
  • AC60F Automatic Transmission
verified source
Transmission fluid pan Transmission breather bracket to Automatic transmissiona assembly 7 5
  • 2TR-FE
  • AC60F Automatic Transmission
verified source
Transmission fluid pan Transmission control cable assembly to Body 6 4
  • AC60E Automatic Transmission
verified source
Transmission fluid pan Transmission control cable assembly to Body 6 4
  • AC60F Automatic Transmission
verified source
Transmission fluid pan Transmission control cable assembly to Transmission control shaft lever LH 14 10
  • 2GR-FKS
  • AC60E Automatic Transmission
verified source
Transmission fluid pan Transmission control cable assembly to Transmission control shaft lever LH 14 10
  • 2TR-FE
  • AC60E Automatic Transmission
verified source
Transmission fluid pan Transmission control cable assembly to Transmission control shaft lever LH 14 10
  • 2GR-FKS
  • AC60F Automatic Transmission
verified source
Transmission fluid pan Transmission control cable assembly to Transmission control shaft lever LH 14 10
  • 2TR-FE
  • AC60F Automatic Transmission
verified source
Transmission fluid pan Transmission control cable bracket to Automatic transmission assembly 28 21
  • 2GR-FKS
  • AC60E Automatic Transmission
verified source
Transmission fluid pan Transmission control cable bracket to Automatic transmission assembly 28 21
  • 2TR-FE
  • AC60E Automatic Transmission
verified source
Transmission fluid pan Transmission control cable bracket to Automatic transmission assembly 28 21
  • 2GR-FKS
  • AC60F Automatic Transmission
verified source
Transmission fluid pan Transmission control cable bracket to Automatic transmission assembly 28 21
  • 2TR-FE
  • AC60F Automatic Transmission
verified source
Transmission fluid pan Transmission oil cooler assembly to Automatic transmission assembly 21 15
  • 2GR-FKS
  • AC60E Automatic Transmission
verified source
Transmission fluid pan Transmission oil cooler assembly to Automatic transmission assembly 21 15
  • 2GR-FKS
  • AC60F Automatic Transmission
verified source
Transmission fluid pan Transmission oil pan heat insulator to Automatic transmission assembly 14 10
  • 2GR-FKS
  • AC60E Automatic Transmission
verified source
Transmission fluid pan Transmission oil pan heat insulator to Automatic transmission assembly 14 10
  • 2TR-FE
  • AC60E Automatic Transmission
verified source
Transmission fluid pan Transmission oil pan heat insulator to Automatic transmission assembly 14 10
  • 2GR-FKS
  • AC60F Automatic Transmission
verified source
Transmission fluid pan Transmission oil pan heat insulator to Automatic transmission assembly 14 10
  • 2TR-FE
  • AC60F Automatic Transmission
verified source
Transmission fluid pan Transmission wire to Automatic transmission assembly 5 4
  • AC60E Automatic Transmission
verified source
Transmission fluid pan Transmission wire to Automatic transmission assembly 5 4
  • AC60F Automatic Transmission
verified source
Transmission fluid pan Transmission insulator RH to Automatic transmission assembly 14 10
  • AC60E Automatic Transmission
verified source
Transmission fluid pan Transmission insulator RH to Automatic transmission assembly 14 10
  • AC60F Automatic Transmission
verified source
Transmission fluid pan Water by-pass pipe to Automatic transmission assembly 21 15
  • AC60E Automatic Transmission
verified source
Transmission fluid pan Water by-pass pipe to Automatic transmission assembly 21 15
  • AC60F Automatic Transmission
verified source
Transmission fluid pan Wire harness clamp bracket to Automatic transmission assembly 8 6
  • 2GR-FKS
  • AC60E Automatic Transmission
verified source
Transmission fluid pan Wire harness clamp bracket to Automatic transmission assembly 8 6
  • 2TR-FE
  • AC60E Automatic Transmission
verified source
Transmission fluid pan Wire harness clamp bracket to Automatic transmission assembly 8 6
  • 2GR-FKS
  • AC60F Automatic Transmission
verified source
Transmission fluid pan Wire harness clamp bracket to Automatic transmission assembly 8 6
  • 2TR-FE
  • AC60F Automatic Transmission
verified source
Transmission fluid pan Wire harness clamp bracket to Transmission insulator RH 13 10
  • AC60E Automatic Transmission
verified source
Transmission fluid pan Wire harness clamp bracket to Transmission insulator RH 13 10
  • AC60F Automatic Transmission
verified source
Transmission mount/case Automatic transmission case plug to Automatic transmission case sub-assembly 7 5
  • AC60E Automatic Transmission
verified source
Transmission mount/case Automatic transmission case plug to Automatic transmission case sub-assembly 7 5
  • AC60F Automatic Transmission
verified source
Transmission mount/case Automatic transmission case plug to Automatic transmission case sub-assembly 39 29 TORX
  • AC60E Automatic Transmission
verified source
Transmission mount/case Automatic transmission case plug to Automatic transmission case sub-assembly 39 29 TORX
  • AC60F Automatic Transmission
verified source
Transmission mount/case Automatic transmission housing to Automatic transmission case sub-assembly 34 25 M10 bolt
  • AC60E Automatic Transmission
verified source
Transmission mount/case Automatic transmission housing to Automatic transmission case sub-assembly 57 42 M12 bolt
  • AC60E Automatic Transmission
verified source
Transmission mount/case Extension housing sub-assembly to Automatic transmission case sub-assembly 34 25
  • AC60E Automatic Transmission
verified source
Transmission mount/case Manifold stay to Transmission 40 30
  • 2GR-FKS
verified source
Transmission mount/case Manifold stay to Automatic transmission assembly 30 22 Bolt A
  • 2TR-FE
  • AC60E Automatic Transmission
verified source
Transmission mount/case Manifold stay to Automatic transmission assembly 44 32 Bolt B
  • 2TR-FE
  • AC60E Automatic Transmission
verified source
Transmission mount/case Manifold stay to Automatic transmission assembly 71 52 Bolt C
  • 2TR-FE
  • AC60E Automatic Transmission
verified source
Transmission mount/case Manifold stay to Automatic transmission assembly 30 22 Bolt A
  • 2TR-FE
  • AC60F Automatic Transmission
verified source
Transmission mount/case Manifold stay to Automatic transmission assembly 44 32 Bolt B
  • 2TR-FE
  • AC60F Automatic Transmission
verified source
Transmission mount/case Manifold stay to Automatic transmission assembly 71 52 Bolt C
  • 2TR-FE
  • AC60F Automatic Transmission
verified source
Transmission mount/case Detent spring to Transmission valve body assembly 10 7
  • AC60E Automatic Transmission
verified source
Transmission mount/case Detent spring to Transmission valve body assembly 10 7
  • AC60F Automatic Transmission
verified source
Transmission mount/case Shift solenoid valve SL to Transmission valve body assembly 6 4
  • AC60E Automatic Transmission
verified source
Transmission mount/case Shift solenoid valve SL to Transmission valve body assembly 6 4
  • AC60F Automatic Transmission
verified source
Transmission mount/case Solenoid lock plate to Transmission valve body assembly 6 4
  • AC60E Automatic Transmission
verified source
Transmission mount/case Solenoid lock plate to Transmission valve body assembly 6 4
  • AC60F Automatic Transmission
verified source
Transmission mount/case Transmission valve body assembly to Automatic transmission assembly 11 8
  • AC60E Automatic Transmission
verified source
Transmission mount/case Transmission valve body assembly to Automatic transmission assembly 11 8
  • AC60F Automatic Transmission
verified source
Transmission mount/case Valve body oil strainer assembly to Transmission valve body assembly 10 7
  • AC60E Automatic Transmission
verified source
Transmission mount/case Valve body oil strainer assembly to Transmission valve body assembly 10 7
  • AC60F Automatic Transmission
verified source
Torque converter Drive plate and torque converter assembly setting bolt to Torque converter assembly 48 35
  • 2GR-FKS
  • AC60E Automatic Transmission
verified source
Torque converter Drive plate and torque converter assembly setting bolt to Torque converter assembly 48 35
  • 2TR-FE
  • AC60E Automatic Transmission
verified source
Torque converter Drive plate and torque converter assembly setting bolt to Torque converter assembly 48 35
  • 2GR-FKS
  • AC60F Automatic Transmission
verified source
Torque converter Drive plate and torque converter assembly setting bolt to Torque converter assembly 48 35
  • 2TR-FE
  • AC60F Automatic Transmission
verified source
Transfer Park/neutral position switch to Automatic transmission assembly bolt 13 10
  • AC60E Automatic Transmission
verified source
Transfer Park/neutral position switch to Automatic transmission assembly bolt 13 10
  • AC60F Automatic Transmission
verified source
Transfer Park/neutral position switch to Automatic transmission assembly nut 7 5
  • AC60E Automatic Transmission
verified source
Transfer Park/neutral position switch to Automatic transmission assembly nut 7 5
  • AC60F Automatic Transmission
verified source
Transfer Parking lock pawl bracket to Automatic transmission case sub-assembly 18 13
  • AC60E Automatic Transmission
verified source
Transfer Parking lock pawl bracket to Automatic transmission case sub-assembly 18 13
  • AC60F Automatic Transmission
verified source
Transfer Transmission floor shift assembly to Body 14 10
  • AC60E Automatic Transmission
verified source
Transfer Transmission floor shift assembly to Body 14 10
  • AC60F Automatic Transmission
verified source
Transfer Transmission control shaft lever LH to Manual valve lever shaft 16 12
  • AC60F Automatic Transmission
verified source

steering torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Power steering Power steering oil pressure switch 21 15
  • 2GR-FKS
verified source

exhaust torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Exhaust manifold Exhaust manifold sub-assembly LH to Cylinder head LH 21 15
  • 2GR-FKS
verified source
Exhaust manifold Exhaust manifold sub-assembly RH to Cylinder head sub-assembly 21 15
  • 2GR-FKS
verified source
Exhaust manifold Exhaust manifold to Cylinder head assembly 36 27
  • 2TR-FE
verified source
Exhaust manifold Manifold stay to Exhaust manifold 40 30
  • 2GR-FKS
verified source
Exhaust manifold Manifold stay to Exhaust manifold 30 22 Bolt A
  • 2TR-FE
  • AC60E Automatic Transmission
verified source
Exhaust manifold Manifold stay to Exhaust manifold 44 32 Bolt B
  • 2TR-FE
  • AC60E Automatic Transmission
verified source
Exhaust manifold Manifold stay to Exhaust manifold 71 52 Bolt C
  • 2TR-FE
  • AC60E Automatic Transmission
verified source
Exhaust manifold Manifold stay to Exhaust manifold 30 22 Bolt A
  • 2TR-FE
  • AC60F Automatic Transmission
verified source
Exhaust manifold Manifold stay to Exhaust manifold 44 32 Bolt B
  • 2TR-FE
  • AC60F Automatic Transmission
verified source
Exhaust manifold Manifold stay to Exhaust manifold 71 52 Bolt C
  • 2TR-FE
  • AC60F Automatic Transmission
verified source
Exhaust manifold Front exhaust pipe assembly to Exhaust manifold sub-assembly RH 54 40
  • 2GR-FKS
verified source
Exhaust manifold Exhaust pipe assembly front to Exhaust manifold 43 32
  • 2TR-FE
verified source
Exhaust manifold Front exhaust pipe assembly to Center exhaust pipe assembly 43 32
  • 2GR-FKS
verified source
Exhaust manifold Exhaust pipe assembly front to Exhaust pipe assembly tail 48 35
  • 2TR-FE
verified source
Exhaust manifold Front no.2 exhaust pipe assembly to Center exhaust pipe assembly 48 35
  • 2GR-FKS
verified source
Exhaust manifold Front no.2 exhaust pipe assembly to Exhaust manifold sub-assembly LH 54 40
  • 2GR-FKS
verified source
Exhaust manifold Tail exhaust pipe assembly to Center exhaust pipe assembly 48 35
  • 2GR-FKS
verified source
Exhaust manifold Exhaust pipe stopper bracket to Body 19 14
  • 2GR-FKS
verified source
Exhaust manifold No.1 exhaust manifold heat insulator to Exhaust manifold sub-assembly RH 13 10
  • 2GR-FKS
verified source
Exhaust manifold No.1 exhaust manifold heat insulator to Exhaust manifold 12 9
  • 2TR-FE
verified source
Exhaust manifold No.2 exhaust manifold heat insulator to Exhaust manifold sub-assembly LH 13 10
  • 2GR-FKS
verified source
Catalytic converter Upper monolithic converter protector to Lower monolithic converter protector 11 8
  • 2GR-FKS
verified source
Catalytic converter Clamp to Monolithic converter protector 11 8
  • 2GR-FKS
verified source

brakes torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Brake pedal Accelerator pedal rod assembly to Body 8 6
  • 2GR-FKS
verified source
ABS ABS wire harness bracket to Charcoal canister 13 10
  • 2TR-FE
verified source

suspension torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to

general torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Example of a Tacoma 3

By Kevauto - Own work, CC BY-SA 4.0


Did you find the answer to your specific question?
👍 0 👎 0
