BMW 3 Series 7 (2018-on) Torque Spec Settings

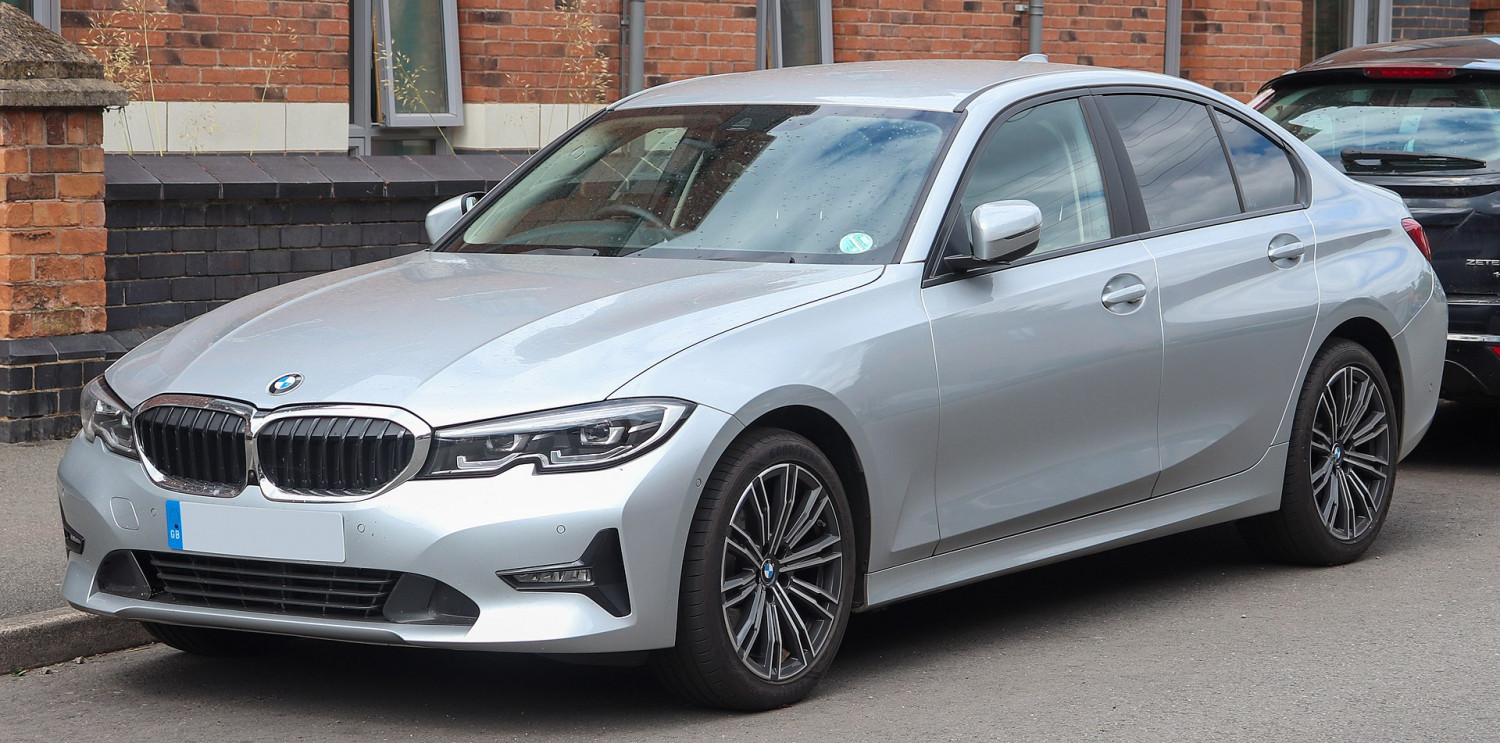

By Vauxford - Own work, CC BY-SA 4.0

Below you'll find the tightening torques for the BMW 3 Series 7 in both Nm and ft/lbs. The first table contains the most-used torque settings. The tables after it contain all torque spec values I could find.

Most-used torque specs for BMW 3 Series 7

Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Oil pan Oil drain plug 25 18 M12x16
  • G20
  • 320i
unverified source
Spark plugs Spark plugs 23 17 M12x1.25
  • G20
  • 320i
unverified source
Wheels Wheel bolts 140 103 M14/SW17
  • G20
unverified source
Wheels Wheel bolts 140 103 M14/SW17
  • G20
unverified source

To make sure these are the correct tightening torque values, you can use the data below to verify this is the right model.

Are these torque settings right for you?

  • Production years: 2018 - present
  • Generation: 7
  • Type of van: car
  • Model variant: Base

All Torque Settings in Tables

engine torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Oil pan Oil drain plug 25 18 M12x16
  • G20
  • 320i
unverified source
Oil pan Oil sump to Crankcase screws 24 18 M8x30
  • G20
  • 320i
unverified source
Oil pan Oil sump to Crankcase screws 24 18 M8x110
  • G20
  • 320i
unverified source
Oil feeder Oil return line to Exhaust turbocharger screws 8 6 M6x14
  • G20
  • 320i
unverified source
Vacuum pump Oil vacuum pump to Crankcase bolts 15 11 Stage 1, M8
  • G20
  • 320i
unverified source
Piston rods Connecting rod bearing cap to Connecting rod screws 20 15 Stage 1
  • G20
  • 320i
unverified source
Cylinder head Cylinder head screws 22 16 M8
  • G20
  • 320i
unverified source
Cylinder head Cylinder head cover to Cylinder head screws 6 4 Jointing torque, M6x30
  • G20
  • 320i
unverified source
Cylinder head Cylinder head cover to Cylinder head screws 11 8 Tightening torque, M6x30
  • G20
  • 320i
unverified source
Cylinder head Cylinder head to Crankcase bolts 30 22 Stage 1, M11
  • G20
  • 320i
unverified source
Cylinder head Cylinder head to Timing case cover bolts 19 14 M8x40
  • G20
  • 320i
unverified source
Cylinder head Cylinder head rear cable routing screws 8 6 M6x20
  • G20
  • 320i
unverified source
Cylinder head Cylinder head rear cover screw 8 6 M6
  • G20
  • 320i
unverified source
Cylinder head Cylinder head heat shield screws 19 14 M8x12
  • G20
  • 320i
unverified source
Cylinder head Acoustic cover (side) to Cylinder head cover screw 8 6 TS6x20
  • G20
  • 320i
unverified source
Cylinder head Bearing journal to Cylinder head 20 15
  • G20
  • 320i
unverified source
Cylinder head Positive battery cable to Cylinder head cover holder screws 6 4 6x18
  • G20
  • 320i
unverified source
Cylinder head Sliding rail to Cylinder head screws 8 6 M6x16
  • G20
  • 320i
unverified source
Cylinder head Manifold suppot for intake air to Cylinder head screws 8 6 M8x16
  • G20
  • 320i
unverified source
Cylinder head Wiring harness section of engine to Cylinder head cover screw 8 6 M6
  • G20
  • 320i
unverified source
Spark plugs Spark plugs 23 17 M12x1.25
  • G20
  • 320i
unverified source
Intake manifold Manifold support to Crankcase screws 8 6 M6x16
  • G20
  • 320i
unverified source
Throttle body Throttle body to Holder screw 8 6 M6x25
  • G20
  • 320i
unverified source
Throttle body Charge air line to Throttle body screws 8 6 M6
  • G20
  • 320i
unverified source
Engine mounts Engine mounting bracket bolt 100 74 M12
  • G20
  • 320i
unverified source
Engine mounts Engine mount to Engine mounting bracket 100 74 M12
  • G20
  • 320i
unverified source
Engine mounts Engine support arm to Engine bolts 38 28 M10
  • G20
  • 320i
  • Rear-wheel Drive
unverified source
Engine mounts Engine support arm to Engine bolts 38 28 M10
  • G20
  • 320i
  • Four-wheel Drive
unverified source
Sensor Coolant temperature sensor at Cylinder head 14 10
  • G20
  • 320i
unverified source
Sensor Crankshaft sensor to Timing case cover 5 4
  • G20
  • 320i
unverified source
Sensor Differential pressure sensor to Holder screw 4 3 TS6x20
  • G20
  • 320i
unverified source
Sensor Intake camshaft sensor screw 4 3 TS5x20
  • G20
  • 320i
unverified source
Sensor Exhaust camshaft sensor screw 4 3 TS5x20
  • G20
  • 320i
unverified source
Alternator Alternator to Component carrier screws 38 28 M10x75
  • G20
  • 320i
unverified source
Alternator Alternator to Component carrier screws 38 28 M10x125
  • G20
  • 320i
unverified source
Alternator Positive battery cable to Alternator nut 19 14 M8
  • G20
  • 320i
unverified source
Starter Starter motor to Engine screws 19 14 M8x60
  • G20
  • 320i
unverified source
Starter Battery positive lead to Starter nut 14 10 M8
  • G20
  • 320i
unverified source
Battery Ignition coil screw 8 6
  • G20
  • 320i
unverified source
Battery Positive battery cable flange nut 15 11 M8
  • G20
  • 320i
unverified source
Camshaft Camshaft sprocket to Oil vacuum pump screw 5 4 Stage 1, M8
  • G20
  • 320i
unverified source
Camshaft Intake camshaft to Cylinder head screws 10 7 Jointing torque, M6
  • G20
  • 320i
unverified source
Camshaft Intake camshaft to Cylinder head screws 10 7 Tightening torque, M6
  • G20
  • 320i
unverified source
Camshaft Exhaust camshaft to Cylinder head screws 10 7 Jointing torque, M6
  • G20
  • 320i
unverified source
Camshaft Exhaust camshaft to Cylinder head screws 10 7 Tightening torque, M6
  • G20
  • 320i
unverified source
Camshaft Camshaft sensor wheel to Intake camshaft screw 8 6 M6x16
  • G20
  • 320i
unverified source
Camshaft VANOS central valve to Camshaft 10 7 Stage 1, M20x1.5
  • G20
  • 320i
unverified source
Camshaft VANOS central valve to Camshaft 30 22 Stage 2, M20x1.5
  • G20
  • 320i
unverified source
Camshaft VANOS central valve to Camshaft 50 37 Stage 3, M20x1.5
  • G20
  • 320i
unverified source
Crankshaft Main bearing cap to Crankcase screws 25 18 Stage 1, M10x1.5
  • G20
  • 320i
unverified source
Crankshaft Vibration damper with belt pulley to Crankshaft bolts 40 30 Stage 1, M10x65
  • G20
  • 320i
unverified source
Water pump Electric coolant pump to Holder nut 8 6 M6
  • G20
  • 320i
unverified source
Water pump Electrical auxiliary coolant pump holder on cylinder head screws 7 5 M6
  • G20
  • 320i
unverified source
Water pump Coolant line to Coolant pump bolts 8 6 M6x20
  • G20
  • 320i
unverified source
Water pump Coolant feed line to Crankcase screw 8 6 M6x12
  • G20
  • 320i
unverified source
Water pump Coolant return line to Exhaust turbocharger screw 8 6 M6x12
  • G20
  • 320i
unverified source
Water pump Coolant return line holder to Exhaust turbocharger screw 8 6 M6
  • G20
  • 320i
unverified source
Air conditioning Air conditioning compressor screws 38 28 M10
  • G20
  • 320i
unverified source
Belt tensioner/Timing chains Belt tensioner to Alternator screws 28 21 M8x30
  • G20
  • 320i
unverified source
Belt tensioner/Timing chains Chain tensioner to Cylinder head 20 15 Stage 1
  • G20
  • 320i
unverified source
Belt tensioner/Timing chains Rear timing case cover to Crankcase screws 8 6 Stage 1, M6x31
  • G20
  • 320i
unverified source
Fuel system High pressure pump to High pressure pump flange screws 12 9 Jointing torque, M6x25
  • G20
  • 320i
unverified source
Fuel system High pressure line between High pressure pump and High pressure rail union nut 33 24 M14
  • G20
  • 320i
unverified source
Fuel system Fuel delivery line to High pressure pump union nutt 31 23 M14
  • G20
  • 320i
unverified source
Fuel system Fuel delivery line to Cylinder head cover screw 7 5 M6
  • G20
  • 320i
unverified source

drivetrain torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Flywheel/Flex plate Flywheel to Crankshaft bolts 45 33 Stage 1, M12x1.5
  • G20
  • 320i
unverified source
Transmission fluid pan Transmission to Engine screw 19 14 M8
  • G20
  • 320i
unverified source
Transmission fluid pan Transmission to Engine screw 66 49 M12
  • G20
  • 320i
unverified source
Transmission fluid pan Transmission to Oil sump screws 19 14 M8x50
  • G20
  • 320i
  • Manual Transmission
unverified source
Transmission fluid pan Transmission to Oil sump screws 19 14 M8x50
  • G20
  • 320i
  • Automatic Transmission
unverified source
Transmission fluid pan Transmission crossmember to Body screws 19 14 M8
  • G20
  • 320i
unverified source
Transmission fluid pan Transmission oil line to Transmission screw 8 6 M6x25
  • G20
  • 320i
unverified source
Transmission fluid pan Transmission oil line on holder screw 8 6 M6
  • G20
  • 320i
unverified source
Transmission fluid pan Transmission oil line holder screws 5 4
  • G20
  • 320i
unverified source
Transmission fluid pan Transmission oil line holders to Component carrier screw 12 9 M6x16
  • G20
  • 320i
unverified source
Transmission fluid pan Oil filler plug 35 26 M18x1.5
  • G20
  • 320i
unverified source
Transmission fluid pan Ground strap to Transmission screw 19 14 M8
  • G20
  • 320i
unverified source
Torque converter Torque converter to Flywheel screws 56 41 M10
  • G20
  • 320i
unverified source
Drive/Axle shaft Front flexible disc to Propeller shaft bolts 55 41 Stage 1, M12
  • G20
  • 320i
unverified source
Drive/Axle shaft Front axle support to Centre of body screws 108 80 M12
  • G20
  • 320i
unverified source
Drive/Axle shaft Front axle carrier to Rear body screws 175 129 M14
  • G20
  • 320i
unverified source
Drive/Axle shaft Front axle support to Front axle support adapter screws 19 14 M8x70
  • G20
  • 320i
unverified source
Drive/Axle shaft Exhaust system to Rear axle carrier nut 19 14 M8
  • G20
  • 320i
unverified source

steering torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Steering knuckle Steering gear underbody protection screw 3 2 Hexagon screw for thermoplastic
  • G20
  • 320i
unverified source
Steering knuckle Steering gear underbody protection screw 8 6 Hexagon screw M6x20
  • G20
  • 320i
unverified source
Steering knuckle Steering box universal joint clamping bolt 28 21 M8
  • G20
  • 320i
unverified source

exhaust torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Turbo Exhaust turbocharger to Cylinder head nuts 10 7 Stage 1, M7
  • G20
  • 320i
unverified source
Turbo Exhaust turbocharger to Cylinder head nuts 10 7 Stage 2, M7
  • G20
  • 320i
unverified source
Turbo Exhaust turbocharger to Cylinder head nuts 16 12 Stage 3, M7
  • G20
  • 320i
unverified source
Turbo Exhaust turbocharger to Cylinder head nuts 16 12 Stage 4, M7
  • G20
  • 320i
unverified source
Turbo Exhaust turbocharger to Cylinder head nuts 16 12 Stage 5, M7
  • G20
  • 320i
unverified source
Turbo Oil feed line to Exhaust turbocharger screw 8 6 M6x12
  • G20
  • 320i
unverified source
Muffler Front silencer on Transmission bracket nut 19 14 M8
  • G20
  • 320i
unverified source
Muffler Rear silencer to Body nuts 19 14 M8
  • G20
  • 320i
unverified source
Catalytic converter Catalytic converter to Exhaust turbocharger V-band clamp 13 10
  • G20
  • 320i
unverified source
Catalytic converter Catalytic converter to Holder screw 19 14 M8
  • G20
  • 320i
unverified source
Catalytic converter Catalytic converter to Holder nut 19 14 M8
  • G20
  • 320i
unverified source
Catalytic converter Exhaust system to Catalytic converter ribbon cable clamp 26 19
  • G20
  • 320i
unverified source
Catalytic converter V-clip to Catalytic converter V-band clamp 22 16
  • G20
  • 320i
unverified source

brakes torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Disc brake Brake disc to Front wheel hub mounting bolt 16 12 M8
  • G20
  • 320i
unverified source
Disc brake Brake disc to Rear wheel hub mounting bolt 16 12 M8
  • G20
  • 320i
unverified source

suspension torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Wheels Wheel bolts 140 103 M14/SW17
  • G20
unverified source
Struts Tension strut on Bulkhead screws 56 41 M10x25
  • G20
unverified source
Struts Tension strut to Spring strut dome 56 41 Stage 1
  • G20
unverified source
Sway bar links/Stabilizer links Front anti-roll bar link to Anti-roll bar nut 56 41 M10
  • G20
unverified source

general torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Example of a 3 Series 7

By Vauxford - Own work, CC BY-SA 4.0


Did you find the answer to your specific question?
👍 0 👎 2
