BMW 5 Series 5 (2003-2010) Torque Spec Settings

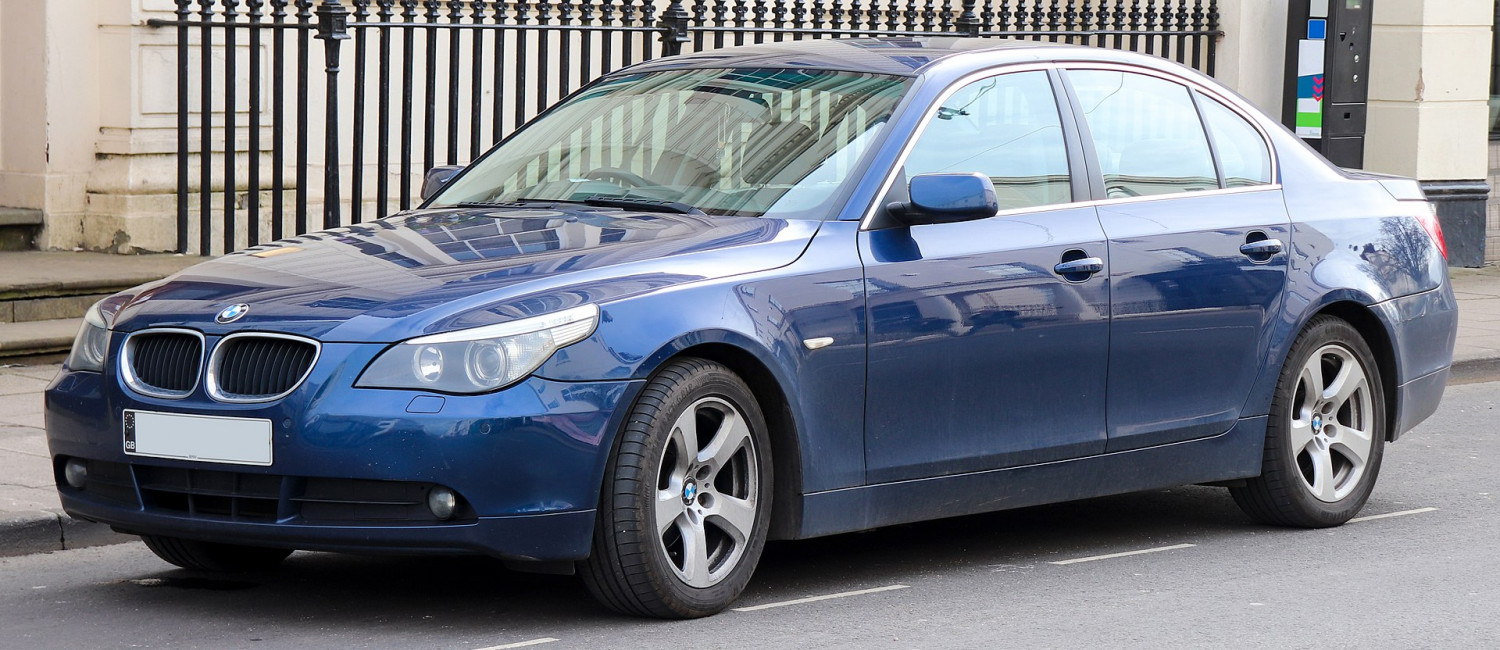

By Vauxford - Own work, CC BY-SA 4.0

Below you'll find the tightening torques for the BMW 5 Series 5 in both Nm and ft/lbs. The first table contains the most-used torque settings. The tables after it contain all torque spec values I could find.

Most-used torque specs for BMW 5 Series 5

Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Oil pan Drainage plug 25 18
  • E60
unverified source
Oil pan Drainage plug 25 18
  • E61
unverified source
Spark plugs Spark plugs 24 18
  • E60
unverified source
Spark plugs Spark plugs 24 18
  • E61
unverified source
Wheels Wheel bolts 120 89
  • E60
unverified source
Wheels Wheel bolts 120 89
  • E60
unverified source
Wheels Wheel bolts 120 89
  • E61
unverified source
Wheels Wheel bolts 120 89
  • E61
unverified source

To make sure these are the correct tightening torque values, you can use the data below to verify this is the right model.

Are these torque settings right for you?

  • Production years: 2003 - 2010
  • Generation: 5
  • Type of van: car
  • Model variant: Base

All Torque Settings in Tables

engine torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Oil pan Drainage plug 25 18
  • E60
unverified source
Oil pan Drainage plug 25 18
  • E61
unverified source
Oil filter Oil filter housing cover 25 18
  • E60
unverified source
Oil filter Oil filter housing cover 25 18
  • E61
unverified source
Spark plugs Spark plugs 24 18
  • E60
unverified source
Spark plugs Spark plugs 24 18
  • E61
unverified source
Engine block Gearbox to Engine block fasteners 72 53
  • E60
unverified source
Engine block Gearbox to Engine block fasteners 72 53
  • E61
unverified source
Engine block Gearbox to Engine block lower fasteners 22 16
  • E60
unverified source
Engine block Gearbox to Engine block lower fasteners 22 16
  • E61
unverified source
Engine mounts Gearbox support to Car body fasteners 35 26
  • E60
unverified source
Engine mounts Gearbox support to Car body fasteners 35 26
  • E61
unverified source
Starter Engine starter fasteners 43 32
  • E60
unverified source
Starter Engine starter fasteners 43 32
  • E61
unverified source
Battery Ignition coil fasteners 7 5
  • E60
unverified source
Battery Ignition coil fasteners 7 5
  • E61
unverified source

drivetrain torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Wheel hub assembly Front hub 110 81
  • E60
unverified source
Wheel hub assembly Front hub 110 81
  • E61
unverified source
Wheel hub assembly Rear hub 250 184
  • E60
unverified source
Wheel hub assembly Rear wheel hub bearing fastener 30 22
  • E60
unverified source
Clutch pressure plate Pressure plate fasteners 25 18
  • E60
unverified source
Clutch pressure plate Pressure plate fasteners 25 18
  • E61
unverified source
Clutch assembly Clutch slave cylinder fasteners 22 16
  • E60
unverified source
Clutch assembly Clutch slave cylinder fasteners 22 16
  • E61
unverified source
Drive/Axle shaft Rear drive shaft to Reduction gear bolts 52 38
  • E60
unverified source
Drive/Axle shaft Propeller shaft centre support bearing fasteners 32 24
  • E60
unverified source
Drive/Axle shaft Propeller shaft centre support bearing fasteners 32 24
  • E61
unverified source
Drive/Axle shaft Propshaft coupling fasteners 100 74
  • E60
unverified source
Drive/Axle shaft Propshaft coupling fasteners 100 74
  • E61
unverified source

steering torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Tie rod end Tie rod end to Steering knuckle fastening nut 165 122 Use drive socket #21
  • E60
unverified source
Tie rod end Tie rod end to Steering knuckle fastening nut 165 122 Use drive socket #21
  • E61
unverified source
Tie rod end Tie rod end locknut 51 38
  • E60
unverified source
Tie rod end Tie rod end locknut 51 38
  • E61
unverified source

exhaust torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Exhaust manifold Exhaust system fasteners 22 16
  • E60
unverified source
Exhaust manifold Exhaust system fasteners 22 16
  • E61
unverified source
Exhaust manifold Exhaust system bracket to Car body fasteners 22 16
  • E60
unverified source
Exhaust manifold Exhaust system bracket to Car body fasteners 22 16
  • E61
unverified source

brakes torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Disc brake Front brake disc fastener 16 12
  • E60
unverified source
Disc brake Front brake disc fastener 16 12
  • E61
unverified source
Disc brake Rear brake disc fastener 16 12
  • E60
unverified source
Disc brake Front brake caliper 30 22
  • E60
unverified source
Disc brake Front brake caliper 30 22
  • E61
unverified source
Disc brake Front brake caliper bracket 110 81
  • E60
unverified source
Disc brake Front brake caliper bracket 110 81
  • E61
unverified source
Disc brake Rear brake caliper bracket 110 81
  • E60
unverified source
Disc brake Rear brake caliper bracket 110 81
  • E61
unverified source

suspension torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
Wheels Wheel bolts 120 89
  • E60
unverified source
Wheels Wheel bolts 120 89
  • E61
unverified source
Struts Front shock strut piston rod nut 64 47
  • E60
unverified source
Struts Front shock strut piston rod nut 64 47
  • E61
unverified source
Struts Rear shock strut piston rod nut 27 20
  • E60
unverified source
Struts Rear shock strut piston rod nut 27 20
  • E61
unverified source
Struts Front shock strut to Steering knuckle lower fasteners 81 60
  • E60
unverified source
Struts Front shock strut to Steering knuckle lower fasteners 81 60
  • E61
unverified source
Shock absorbers/shocks Front shock absorber strut mount upper fastener 34 25
  • E60
unverified source
Shock absorbers/shocks Front shock absorber strut mount upper fastener 34 25
  • E61
unverified source
Shock absorbers/shocks Rear shock absorber strut mount upper fastener 28 21
  • E60
unverified source
Shock absorbers/shocks Rear shock absorber strut mount upper fastener 28 21
  • E61
unverified source
Shock absorbers/shocks Rear shock absorber lower fastener 100 74
  • E60
unverified source
Shock absorbers/shocks Rear shock absorber lower fastener 100 74
  • E61
unverified source
Stabilizer bar Rear stabilizer bar to Control arm fastener 100 74
  • E60
unverified source
Stabilizer bar Rear stabilizer bar to Control arm fastener 100 74
  • E61
unverified source
Stabilizer bar Front stabilizer link to Stabilizer bar fastener 65 48
  • E60
unverified source
Stabilizer bar Front stabilizer link to Stabilizer bar fastener 65 48
  • E61
unverified source
Stabilizer bar Rear stabilizer link to Stabilizer bar fastener 65 48
  • E60
unverified source
Stabilizer bar Rear stabilizer link to Stabilizer bar fastener 65 48
  • E61
unverified source
Sway bar links/Stabilizer links Front stabilizer link to Shock strut fastener 65 48
  • E60
unverified source
Sway bar links/Stabilizer links Front stabilizer link to Shock strut fastener 65 48
  • E61
unverified source
Sway bar links/Stabilizer links Front stabilizer link bracket fastener 65 48
  • E60
unverified source
Sway bar links/Stabilizer links Front stabilizer link bracket fastener 65 48
  • E61
unverified source
Control arm Control arm to Subframe front fastener 100 74
  • E60
unverified source
Control arm Control arm to Subframe front fastener 100 74
  • E61
unverified source
Control arm Control arm to Body subframe rear fastener 100 74
  • E60
unverified source
Control arm Control arm to Body subframe rear fastener 100 74
  • E61
unverified source
Control arm Control arm rear fastener 100 74 Use drive socket #18
  • E60
unverified source
Control arm Control arm rear fastener 175 129 Use drive socket #21
  • E60
unverified source
Control arm Suspension arm to Rear knuckle fastener 165 122
  • E60
unverified source
Control arm Suspension arm to Rear knuckle fastener 165 122
  • E61
unverified source
Ball joint Front ball joint fastener 165 122
  • E60
unverified source
Ball joint Front ball joint fastener 165 122
  • E61
unverified source

general torque settings

Save to email ✉️
Part Description Torque (Nm) Torque (ft/lbs) Remarks Applies to
